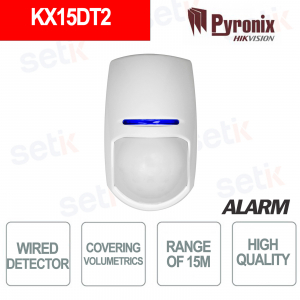

KX15DT2 Hikvision Indoor wired detector, with double detection technology, Volumetric coverage, Maximum range of 15 meters, Optimal installation height 1.8 meters / 2.4 meters, Underlying area protection, Blue Wave Technology, Automatic sensitivity, Anti-opening / Anti-tear Tamper, Infrared Alarm , Microwave frequency 10.515 GHz / 10.525 GHz / 10.535 GHz.

Reference: KX15DT2

Brand: Pyronix

EAN: 5056105613879

Manufacturer Object ( [id] => 32 [name] => Pyronix [description] =>

Pyronix boasts a wide range of wired, hybrid and wireless intrusion detection products, relying on the latest technologies developed and created by its in-house teams. Winners of major awards for the new technologies they have discovered and implemented, Pyronix is still a guarantee in the field of security

[short_description] =>

Pyronix 42.jpg

Pyronix, a leading specialist in the field of intruder alarms, joined Hikvision, the world's number one company for surveillance solutions, in May 2016

[id_address] => [date_add] => 2019-01-24 17:10:41 [date_upd] => 2022-03-23 16:20:19 [link_rewrite] => pyronix [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


KX15DT2 | HIKVISION VOLUMETRIC DETECTOR


INTERNAL WIRED DETECTOR HIKVISION

Hikvision aims to offer maximum security for its customers and this is why, every time it designs a product, Smart creates it. Indoor wired detector, double detection technology, volumetric coverage, maximum range of 15M

KX15DT
INDOOR WIRED DETECTOR:
Pyronix-Hikvision indoor detector, Dual detection technology, Volumetric coverage, maximum range 15 meters,
Volumetric coverage, optimal installation height 1.8 meters - 2.4 meters, anti-opening and anti-tear pads.

♦ the internal wire elevator
♦ Dual Technology Detection Technology
♦ Volumetric coverage
♦ Maximum range 15 m
♦ Optimal Installation Height 1.8 - 2.4 m
♦ Protection of the underlying area (anti-slip)
♦ Blue Wave technology
♦ Automatic sensitivity
♦ Anti-opening and anti-tearing tamper
♦ Indication Separate Microwave
♦ Infrared and Alarm
♦ Microwave frequency 10.515 GHz / 10.525 GHz / 10.535 GHz
♦ Selectable end of line resistors
♦ 9-16VDC power supply
♦ Consumption in alarm 30mA / Relay 60VDC / 50mA max
♦ Operating temperature -30 ° C / + 70 ° C

Documentation: Brochure

Data sheet

DS-PSG-WO-868
Detectors technical characteristics Blue Wave technology Yes
Automatic sensitivity Yes
Set sensitivity Yes
Digital temperature compensation Yes
DEOL resistor on board Yes
Tamper protection Yes
3 microwave frequencies to avoid interference Yes
Optical, lens and detection characteristics Maximum range 15M
Volumetric coverage Yes
Dual technology Yes
Detection speed 0.3 - 3.0 m / s
Coverage angle 85 degree
Detection zones 74
Detection planes 7
Anticloaking technology Yes
Protection of area under the detector (creep zone) Yes
White light filter 6500 Lux
Protection Ultraviolet light filter
Lens 3 dimensional
Optics Sealed optics
Detection method Low noise dual element pyroelectric sensor and Microwave Doppler Sensor
Mounting Wall mounted Bracket included
Ceiling mounted Bracket included
Optimum coverage height 1.8 - 2.4m
Certified mounting height 2.4m
Environmental and operating features Storage temperatures -40C to + 80C
Certified operating temperature -10C to + 40C
Nominal operating temperature -30C to + 60C
Physical dimensions (H x W x D) 117 x 69 x 50mm
Weight 125g without bracket
