RS2-WE Pyronix Hikvision Alarm Wireless Sensor Perimeter Radio Detector Magnetic contact 868MHz with bidirectional cable with external inputs for rolling shutter. 2 independent radio channels, Input 1 NC / Reed Contact, Input 2 NC / Cable clamp, Clamp for tamper input, Anti-opening and anti-tear tamper, LED indication of the Radio Signal Level, Magnet included, 128 bit coding, up to 1600 m in open space, Lithium battery (included) 1 x BATT-CR2, CE compliance, EN50131 Grade 2, Environmental class II, IMQ CA 12.01326
FIND INSTALLER
discover the available quantity

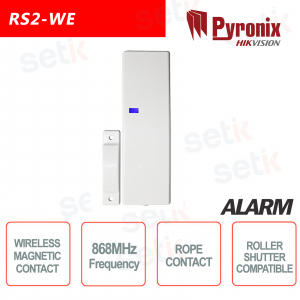

RS2-WE | PYRONIX-HIKVISION WIRELESS MAGNETIC CONTACT 868MHZ WITH ROPE WITH EXTERNAL INPUTS FOR ROLLER SHUTTER - AXIOM HUB
|
|
WIRELESS MAGNETIC CONTACT 868MHz WITH ROPE WITH EXTERNAL INPUTS FOR "PYRONIX-HIKVISION" AXIOM HUB SHUTTERS
Hikvision aims to offer maximum security for its customers and that is why, every time it designs a product, it creates it Smart . From the entry of Pyronix into the Hikvision group , truly formidable products are born on the market, able to guarantee double the safety . This Pyronix-Hikvision RS2-WE sensor is a universal multifunction radio transmitter for rolling shutters, which can be installed on many materials (wood, PVC, brick or metal) and is fully compatible with the Hikvision Wireless AXIOM HUB and Pyronix ENF system.
|
AXIOM HUB: WHAT IS IT ABOUT? Axiom HUB is the new and innovative radio intrusion control unit that natively integrates Hikvision video management. The Wi-Fi transmission and advanced Intruder Verification technology for video alarm verification make Axiom HUB the ideal control unit for the protection of property and people in residential and small business applications. With an elegant design, easy to install and use thanks to the guide integrated voice. It is compatible with the HiK-Connect app, for complete system control (arming, disarming and monitoring. The revolutionary Intruder Verification video verification function allows users and supervisors to quickly verify and confirm system alarms through high resolution video clips. BROWSE THE BROCHURE
|
 Pyronix Hikvision Wireless Magnetic Contact Wire Sensor (RS2-WE): RS2-WE is 868MHz wireless magnetic cable contact, universal radio transmitter with external inputs for rolling shutters, bidirectional dual channel; 1 reed / magnetic contact and 1 tamper input. Can be installed on all common materials (wood, PVC, brick or metal). ♦ 2 universal inputs and 1 tamper input ♦ Signal strength indicator (SSI): (functionality present in Pyronix Enforcer devices. Better positioning without the need for the control panel) ♦ " One push to learn " storage button: (functionality present in Pyronix Enforcer devices. A simple button for quick installation) ♦ High security encrypted radio protocol ♦ Up to 1.6km in open space ♦ Compatible with hikvision AXIOM HUB and ENF Pyronix wireless system ♦ 868MHz FM two-way radio technology Documentation: Brochure | |
Data sheet
| RS2-WE | |
| Magnetic contact and Roller shutter support / 2 channel universal transmitter | yes |
| Terminal for N / C input and reed switch | yes |
| Tamper switch | yes |
| Front and rear tamper protection | yes |
| Signal Strength Indicators (SSI) | yes |
| Magnet included | yes |
| Transmission frequency | 868MHz, FM transceiver |
| Transmission method | 128bit encrypted radio protocol |
| Range in open space | 1600m |
| 3V lithium battery included | 1 x CR2 |
| Minimum battery life (years) | 2 |
| Electrical Conformity | THERE IS |
| EN50131 | Grade 2 |
| Environmental class | II |
MAXIMUM RELIABILITY
Axiom HUB uses solid and effective Pyronix Hikvision radio technology.
Stability is guaranteed by a historical and proven presence on the market and the sensors and radio transmission have a degree of reliability that is unparalleled. Thanks to its technological advantages, it guarantees stable and long-range communication up to 800m in open field.
BIDIRECTIONAL RADIO TECHNOLOGY
Axiom HUB guarantees maximum transmission reliability thanks to confirmation of receipt of the message sent and retransmission in case of non-delivery. The proprietary dual antenna hopping algorithm allows you to always use the best channel for transmission while the advanced jamming detection prevents system interruption attempts, whether accidental or intentional.
CONFIGURATION VIA WEB SERVER
Axiom HUB has an integrated web server which allows you to configure the device via a web browser. For maximum flexibility and time savings, configuration can be done quickly and effectively using a compatible laptop or smart device.
SIMPLE AND INTUITIVE PROGRAMMING
Configuration of the Axiom HUB system, thanks to the simple and intuitive interface, is immediate. Two configuration modes are possible: on-site installation with connection to the panel directly via web browser or with iVMS-4200 video management software and system programming via the Hik-Connect app. In addition, the “one push to learn” function present on all wireless intrusion devices guarantees a simple and rapid learning of the same, bringing advantages in terms of time and money.
LAN, WI-FI AND 4G COMMUNICATION
The variety of communication technologies of Axiom HUB is unparalleled, in fact it has LAN, Wi-Fi, GPRS * and 3G / 4G connections natively integrated into the control panel. IP transmission channels can be used simultaneously to communicate with multiple devices, ensuring maximum security in alarm transmission. In the event of an alarm event, Axiom HUB manages the transmission in an extremely flexible way via voice messages, push notifications, SMS or standard digital protocols for communicating with the watches.
* depending on the control panel
