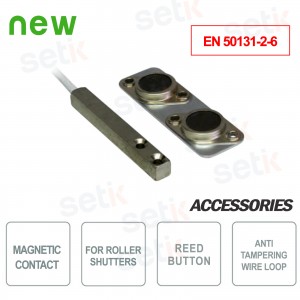

CSA 455-CSA magnetic contact, useful for detecting the lifting of roller shutters (shutters, shutters). Wire connection (2 for contact + 2 for tamper) and installation directly in the box. Equipped with reed contact, certified according to EN50131-2-6 , small size, fitted with a tamper- proof wire loop
FIND INSTALLER
https://www.setik.biz/en/sensors/3221-eaton-cooper-csa-csa-455-csa-Contact-magnetic-for-blinds-en-50131-2-6-CSA.html
€10.88
€13.60 -20%
taxes included
discover the available quantity
MAGNETIC CONTACT FOR ROLLER LIFTING - WIRE CONNECTION - REED CONTACT
|
DESCRIPTION: This device detects the lifting of the shutters / shutters and is installed directly in the box. Certified according to EN50131-2-6 , equipped with anti-tampering loop Extremely reliable product thanks to the reed contact. |
Product details
- Magnetic contact for roller shutter - CSA
- Wired connection (2 per contact + 2 for tamper)
- Detects lifting of roller shutters (roller shutter / gate)
- Equipped with a tamper-proof loop
- Assembly in the body
- Suitable for fixtures of any material
- Certified according to EN50131-2-6
- Small size
- It is fixed to the window frame with screws
Data sheet
| Model | CSA 455-CSA |
| Container material | Nickel-plated brass |
| Magnet container material | Brass and nickel-plated iron |
| operation | NC output reed contact with near magnet |
| Type of connection | Wire (2 per contact + 2 per tamper) |
| Operating temp | -25 ° C ÷ + 60 ° C |
| Degree of protection | IP 65 |
