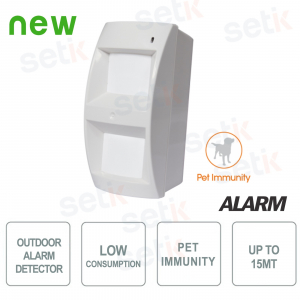

Low consumption outdoor sensor - AMC

Low consumption outdoor sensor - AMC
BEST PRICE -15%

SOUTDOOR/BC low consumption outdoor sensor , double PIR sensor that can be used with all types of radio transmitters . Coverage up to 15 m (90°), ideal for various types of installation thanks to the interchangeable lenses. Double pulse function, alarm contact with solid state relay (NO, NC), Tamper contact (NO and NC). Pet Immune . SOUTDOOR/BC

Outdoor alarm sensor AMC Electronics SOUTDOOR/BC, Outdoor motion detector for alarm system, Weatherproof outdoor security sensor, Alarm sensor for gardens and outdoor areas, Outdoor alarm system with advanced detection, Detector of outdoor motion sensor with anti-tamper protection, Outdoor alarm sensor with infrared technology, Outdoor security device with accurate detection, Motion sensor for outdoor perimeter protection, Easy to install outdoor alarm system, Outdoor security sensor for homes and businesses, Presence detector for external alarm systems, AMC electronic external alarm sensor with wide coverage, High sensitivity outdoor motion sensor, Outdoor alarm device with rapid detection

Reference: SOUTDOOR/BC

Brand: AMC

EAN: 8058258769882

Manufacturer Object ( [id] => 26 [name] => AMC [description] =>

Founded in 1974, AMC Elettronica can count on an international distribution network with only made in Italy products. One of the most important qualities of this company is the attention paid to design and customers’ needs. AMC Elettronica is not only distribution, but also production and analysis. Indeed, in the establishment in Lurago d’Erba there is a fully automated production line for the SMT technology electronic boards and a “test laboratory” for checking and testing. Control panels, Sirens and Motion sensors are only some of the products made and distributed by AMC Elettronica. AMC Elettronica, a brand which is a synonym of quality and professionalism, offers to its customers even a free Cloud service and an official free App "AMC Manager" compatible with Android and Apple.

[short_description] =>


Setik now distributes AMC Elettronica, an Italian brand specialising in the intrusion detection sector.

[id_address] => [date_add] => 2018-02-01 09:38:22 [date_upd] => 2025-02-18 12:20:02 [link_rewrite] => amc [meta_title] => AMC Elettronica intrusion security and accessories [meta_keywords] => AMC intrusion security,AMC Antintrusion [meta_description] => Since 1974 AMC Elettonica has been dealing with security systems and is one of the leading Italian manufacturers of burglar alarms, burglar alarm systems and alarms. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

LOW POWER OUTDOOR SENSOR WITH IMMUNITY TO DOMESTIC ANIMALS

Sensore da esterno - doppio pir digitale - pet immune

DESCRIPTION:
The AMC SOUTDOOR/BC outdoor sensor is one of the best outdoor sensors on the market.

This device is equipped with Double digital PIR , coverage from 3 to 15 meters and Immunity to animals (Pet Immune)
Thanks to the very low consumption , 9uA guarantees long battery life of the connected devices.

Ideal product for various types of installation thanks to the interchangeable lenses and can be used with all types of radio transmitters

Extremely reliable product.

Outdoor alarm sensor AMC Electronics SOUTDOOR/BC, Outdoor motion detector for alarm system, Weatherproof outdoor security sensor, Alarm sensor for gardens and outdoor areas, Outdoor alarm system with advanced detection, Detector of outdoor motion sensor with anti-tamper protection, Outdoor alarm sensor with infrared technology, Outdoor security device with accurate detection, Motion sensor for outdoor perimeter protection, Easy to install outdoor alarm system, Outdoor security sensor for homes and businesses, Presence detector for external alarm systems, AMC electronic external alarm sensor with wide coverage, High sensitivity outdoor motion sensor, Outdoor alarm device with rapid detection

Product details

Sensore da esterno - doppio pir digitale - pet immune
    • Outdoor Alarm Sensor - AMC
    • Double Digital PIR
    • Very low consumption 9uA
    • Can be used with all types of radio transmitters
    • Coverage from 3 m to 15 m (90°)
      • Suitable for various types of installations thanks to the interchangeable lenses
    • Buzzer alarm
      • Analysis system that guarantees reduction of false alarms
    • Digital compensation system: high protections in case of thermal variations
    • PET immune: Immunity to pets
    • Double pulse function
    • Optional joint ( SN3 )
Snodo per SOUTDOOR
  • Alarm contact with solid state relay (NO, NC)
  • Tamper contact (NO and NC)
  • Power supply: 3V to 9V
  • Standby: 9uA
  • Alarm consumption: 5mA
  • Quality product

Data sheet

SOUTDOOR/L SOUTDOOR/BC SOUTDOOR/T SOUTDOOR 800
CAPACITY 6 - 12 m 3 - 15 m 3 - 15 m 15m
HORIZONTAL COVERAGE 90° 90° 90° 90°
PYROELECTRIC digital pyroelectrics digital pyroelectrics 2 items digital pyroelectrics
LENS 1 Fresnel (22 patterns on 3 levels) Fresnel (22 patterns on 3 levels) Fresnel (22 patterns on 3 levels) Fresnel (22 Patterns on 3 levels)
LENS 2 Fresnel horizontal curtain (11 patterns on 1 level) Fresnel horizontal curtain (11 patterns on 1 level) Fresnel horizontal curtain (11 patterns on 1 level) Fresnel horizontal curtain (11 patterns on 1 level)
OPTIONAL LENS Fresnel vertical curtain (11 patterns on 11 levels) Fresnel vertical curtain (11 patterns on 11 levels) Fresnel vertical curtain (11 patterns on 11 levels) Fresnel vertical curtain (11 patterns on 11 levels)
DIET 10.5 - 15V 3 - 9V 9 - 15V 1/2AA 3.6V battery
CONSUMPTION (ALARM/STAND-BY) 35mA / 20mA @ 13.8V 5 mA / 9 uA @ 9 V 52 mA / 46 mA @ 13.8 V 12uA min. - 26mA max
PET IMMUNITY YES YES YES YES
COVER ABS ABS ABS ABS
DEGREE OF PROTECTION IP 65 IP 65 IP 65 IP 44
OPERATING TEMPERATURE from -30°C to +70°C from -30°C to +70°C from -30°C to +70°C from -30°C to +60°C
DIMENSIONS 185 x 85 x 66mm 185 x 85 x 66mm 185 x 85 x 66mm 185 x 85 x 70 mm

Further details

Schema copertura lenti intercambiabili SOUTDOOR/L
