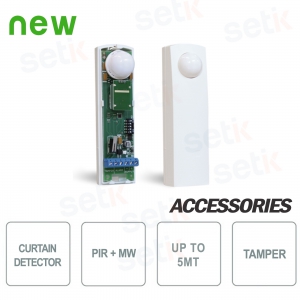

DT16 - EN 50131-2-4 / GRADE 2 - Double Technology
Dual technology infrared and microwave sensor, PIR + MW at 10 Ghz, "curtain" effect protection for doors and windows. Equipped with anti-tear protection, anti-opening tamper, signaling LED with relative disabling jumper and alarm direction recognition system. White, or certified EN 50131-2-4 / GRADE 2. DT 16
FIND INSTALLER
€43.25
€86.50 -50%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
Did you know that ... WE ARE AMC PRIME DISTRIBUTORS?
DT 16 | AMC ELECTRONICS
The DT 16 sensor is one of the best curtain effect sensors on the market.
This device is equipped with dual technology ( INFRARED + MICROWAVE at 10GHz ), ideal for installation on doors and windows.
Anti-tear protection, anti-opening tamper, signaling LED with relative disabling jumper m system for recognizing the direction of the alarm. Extremely reliable product.
SEE ALSO THE DT16-M VERSION |
- Sensor - AMC
- Double Technology (PIR + MW - infrared and microwave at 10GHz )
- Curtain effect protection (3-5 meters)
- Ideal for protecting doors, windows
- Anti-tear protection
- Anti-opening tamper
- Signaling LED with relative disabling jumper
- Equipped with an alarm direction recognition system
- EN 50131-2-4 / GRADE 2 approval
- White color
- ABS cover
- Quality product
| Model | DT 16 |
| EN 50131-2-4 / GRADE 2 | yes |
| Range | from 2 to 3.5 mt |
| Angle | 165 ° |
| Curtain lens orientation | Yes |
| Alarm Time | 4 " |
| Walk Test's LED | Yes |
| Antiopening Tamper | yes |
| RFI Protection | 30 V / m |
| Temperature Compensation | Yes |
| Power Supply | 10 - 15 Vdc |
| Consumption in stand by | 18 mA |
| Housing | ABS |
| Protection grade | IP 54 |
| Operating Temperature | from -25 ° C to + 55 ° C |
| Dimensions | 37 x 130 x 37 mm |
CURTAIN EFFECT SENSORS - AMC:
| Model | DT 16 | IF16 / L | IF16 / T |
| EN 50131-2-4 / GRADE 2 | yes | - | - |
| EN 50131-2-2 / GRADE 2 | - | yes | yes |
| Range | from 2 to 3,5mt | from 2 to 3,5mt | from 2 to 3,5mt |
| Angle | 165 ° | 165 ° | 165 ° |
| Curtain lens orientation | Yes | Yes | Yes |
| Alarm Time | 4 " | 4 " | 4 " |
| Programmable alarm delay | - | yes | yes |
| High power led for lightning and / or alarm | - | yes | - |
| Walk test's led | yes | yes | yes |
| Double sound buzzer (entrance / exit) | - | yes | - |
| Antiopening Tamper | yes | yes | yes |
| RFI Protection | 30 V / m | 30 V / m | 30 V / m |
| Temperature Compensation | Yes | Yes | Yes |
| Power Supply | 10 - 15 Vdc | 10 - 15 Vdc | 10 - 15 Vdc |
| Consumption in stand by | 18 mA | 12 mA | 12 mA |
| Housing | ABS | ABS | ABS |
| Protection grade | IP54 | IP54 | IP54 |
| Operating Temperature | from -25 ° C to + 55 ° C | from -25 ° C to + 55 ° C | from -25 ° C to + 55 ° C |
| Dimensions | 37 x 130 x 37 mm | 37 x 130 x 37 mm | 37 x 130 x 37 mm |
