Visible magnetic contact Setik, ideal for installation on wooden doors and windows. ABS case, Fixing with screws. CE&ROHS certified. CSA 405-M 100% Compatible Setik TK-405M
https://www.setik.biz/en/sensors/2688-setik-tk-405m-setik-csa-405-m-exposed-magnetic-contact.html
€3.67
€7.33 -50%
taxes included
discover the available quantity

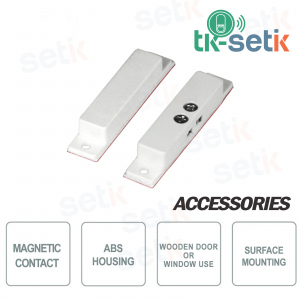

VISIBLE MAGNETIC CONTACT IN ABS - SETIK CASE
DESCRIPTION: Setik offers its line of alarm products able to guarantee high protection wherever you want to install them. The TK-405M is a visible magnetic contact, particularly suitable for installations on wooden doors and windows. The container is made of resistant ABS material and the fixing to the surface is really simple thanks to the supplied screws. CE&ROHS certified |
Product details
- Magnetic contact - Setik
- Visible assembly
- Ideal for installations on wooden doors and windows
- Maximum installation distance of the two components 20/25mm
- Durable ABS case
- Fixing with supplied screws
- Maximum Voltage/Voltage: 100V/0.5A
- CE&ROHS certified
- Dimensions: 44(l) x 10(w) x 7(h) mm
Data sheet
| model | TK-405M |
| Material | ABS |
| Max.Voltage/Current | 100V/0.5A |
| ContactType | NC/NO |
| Gap | 20-25mm |
| mount | Surface Mount |
| size | 44L*10W*7Hmm |
Further details
DISCOVER THE FULL RANGE OF TK SETIK SENSORS
| Model | Guy | Characteristics | Coverage |
| TK-501 | Internal Volumetric Wired Sensor | PIR, Pet Immune | 12MT |
| TK-504 | Internal Volumetric Wired Sensor | PIR+MW, Pet Immune | 12MT |
| TK-504A | Internal Volumetric Wired Sensor | PIR+MW, Pet Immune, Anti-Masking | 12MT |
| TK-405M | Visible magnetic contact | Metal | |
| TK-415-TF | Recessed magnetic contact | ABS | |
| TK-314N | Recessed magnetic contact 6mm | ABS | |
| TK-450N | Visible magnetic contact for up-and-over doors | Zinc alloy | |
| TK-314CSA | Recessed magnetic contact | Copper | |
| TK-403AP | Visible magnetic contact | Zinc alloy | |
| TK-RY60 | Barrier Transmitter and Receiver | Max range 60M, for indoors and outdoors | |
| TK-RY100 | Barrier Transmitter and Receiver | Max range 100M, for indoors and outdoors |
