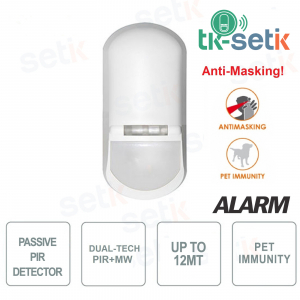

PIR + MW alarm movement sensor Anti-masking - BMD-504 – BLC203 - S

PIR + MW alarm movement sensor Anti-masking  - BMD-504 – BLC203 - S
BEST PRICE -50%

Rilevatore di movimento da interno Passivo a doppia tecnologia PIR+MW (microonda), con immunità Animali domestici (Pet Immune) e Anti-Mascheramento. Rilevamento affidabile dei falsi allarmi. Portata 12 metri, BMD-504 e BLC203 Sicurezza. Setik TK-504A

Reference: TK-504A

Brand: Setik

EAN: 8058258767703

Manufacturer Object ( [id] => 7 [name] => Setik [description] =>

Always committed to the world of security, in addition to products from the best brands, we also offer our own production line, where convenience and quality come together to protect you. Imported products but with quality, warranty and updates managed directly by us. Take a look at our products: cameras, ip recorders, complete security kits, home alarm systems, spy products, cables, accessories and much more. Choose Setik for your security!

[short_description] =>

Setik was founded in 2012.
Initially 10 products in the catalogue, today almost 4,000.

[id_address] => [date_add] => 2012-03-20 12:17:52 [date_upd] => 2022-04-19 17:28:56 [link_rewrite] => setik [meta_title] => Made by Setik [meta_keywords] => setik, cctv, Made by Setik [meta_description] => Setik CCTV production [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

RILEVATORE PASSIVO PIR + MW (MICROONDA) - PET IMMUNITY - ANTI MASCHERAMENTO - SETIK

Rivelatore di movimento con immunità agli animali domestici e anti-mascheramento

DESCRIZIONE:
TK-504A Doppia Tecnologia Pet Immune con Anti-Mascheramento.

Il rilevatore PIR dual-tech da interno di nuova generazione è basato su un processore MCU con tecnologia ASIC e Modulo di rilevamento Doppler 10.525 GHZ, che può distinguere il movimento reale di un intruso o l'interferenza del fattori ambientali.

Il nuovo algoritmo adottato ha il rivelatore PIR immunizzato per la forte EMI / RFI e interferenze luminose. L'elemento termico in dotazione e la tecnologia di compensazione della temperatura aumentano notevolmente l'applicabilità in ambienti con diversa temperatura.

Dettagli prodotto

Rilevatore di movimento Doppia Tecnologia PIR+MW Passivo da interno con pet immunity e antimascheramento
  • Rilevatore movimento Passivo da interno - Setik
  • Doppia Tecnologia PIR+MW (Microonda) con processore MCU con tecnologia ASIC e Modulo di rilevamento Doppler 10.525 GHZ in grado di distinguere il movimento reale di un intruso o l'interferenza di fattori ambientali.
  • Portata 12 metri
  • PET Immunity: Immunità agli animali domestici
  • Antimascheramento: Protezione da tentativi di accecamento
  • Immune a forti EMI / RFI e ad interferenze luminose
  • Tecnologia per la compensazione della temperatura per l'utilizzo del dispositivo a diverse temperature
  • Possibilità di installazione a parete con staffa TK-MB
  • Design moderno
  • Dimensioni: 125*60*38mm

Area di copertura sensore allarme TK-504A Setik

Scheda tecnica

Model TK-504A
System
Power Input 9-14V DC
Power consumption

10mA in standby mode
30mA in alarm mode

Alarm Output

NC
up to 30VDC, 100mA

Alarm Period 2 Sec
Pulse count 1 or 2 Selectable
LED Indicator

LED is ON/OFF Selectable
Blue=PIR Channel, Red=Alarm Mode,
Yellow=Warm up& MW Channel; Blinking Red=Anti-Mask

Tamper output

NC, 30VDC, 1A
Open when cover is removed

RFI Protection 30V/m 10 - 1000MHz
EMI Protection 50000V Electronic Interference
White Light immunity Up to 8000 LUX
Temperature Compensation Yes
PIR Sensitivity Adjustable and Pulse Selection Yes
Detection Area 90 degree X 12M at 25°C
Operating Temperature -10°C to 50°C
Operating Humidity ≦95%
Size 125*60*38mm

Ulteriori dettagli

SCOPRI L'INTERA GAMMA DI SENSORI TK SETIK

Modello Tipo Caratteristiche Copertura
TK-501 Sensore Filare Volumetrico interno PIR, Pet Immune 12MT
TK-504 Sensore Filare Volumetrico Interno PIR+MW, Pet Immune 12MT
TK-504A Sensore Filare Volumetrico Interno PIR+MW, Pet Immune, Anti-Mascheramento 12MT
TK-405M Contatto Magnetico a vista Metallo
TK-415-TF Contatto magnetico ad incasso ABS
TK-314N Contatto magnetico ad incasso 6mm ABS
TK-450N Contatto magnetico a vista porte basculanti Lega di zinco
TK-314CSA Contatto magnetico ad incasso Rame
TK-403AP Contatto magnetico a vista Lega di zinco
TK-RY60 Barriera Trasmettitore e Ricevitore Portata max 60M, per interno ed esterno
TK-RY100 Barriera Trasmettitore e Ricevitore Portata max 100M, per interno ed esterno
Dimensioni del sensore TK-504A
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
