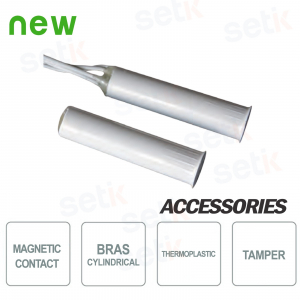

CSA Cylindrical magnetic contact in Thermoplastic

CSA Cylindrical magnetic contact in Thermoplastic
-20%

Cylindrical CSA Cooper magnetic contact, flush mounting. High operating distances. Suitable for aluminum, wood, PVC doors and windows. Wire connection with tamper. Thermoplastic. IP65. CSA 415-TF

Reference: CSA 415-TF

Brand: EATON - COOPER CSA

EAN: 8054934902116

FIND INSTALLER

€4.59

€5.73 -20%
taxes included
Tax included
  Available
 Available
discover the available quantity


DISCOVER THE ALTERNATIVES!

CSA 415-TF - TK-415-TF alternative

CYLINDRICAL RECESSED CONTACT IN THERMOPLASTIC WITH TAMPER

Contatto in termoplastico e ad incasso cilindrico

DESCRIPTION:
The CSA 415-TF flush contact is one of the best thermoplastic flush contacts on the market.

Ideal for doors and windows in aluminium, wood, PVC

Tamper wire loop (tamper). IP65 protection

Certified according to EN50131-2-6

Extremely reliable product

Product details

  • Cylindrical recessed contact - CSA Cooper
  • Ideal for mounting on aluminum, wood, PVC doors and windows
  • Material: Body in thermoplastic
  • High operating distance
  • Wire connection (2 for NC contact +2 for tamper)
  • With tamper wire loop.
  • Reed contact NC output with nearby magnet or reed contact in exchange
  • IP65 protection degree - IMQ approved for outdoor use
  • Certified according to EN50131-2-6
  • Quality product
contatto da incasso in termoplastico cilindrico

Data sheet

Container material Thermoplastic, colors as per table
Operation

Reed NC output with nearby magnet or reed contact in exchange

Connection type

Flush (2 for NC contact + 2 for tamper)

Operating temp -25°C ÷ +70°C
Degree of protection IP65
Standard equipment Tamper (tamper) wires
D Max (no iron) 15mm
Contact type NC* With nearby magnet
Max Voltage 200 Vdc
current max 1 A
Power Max 10W
N* Threads 4
Cable length 0.3m
Color white
Approvals

IMQ Level I**
Vds G191596 cl.B

Degree of security 2
Environmental class III
Weight Pack 0.11 Kg
