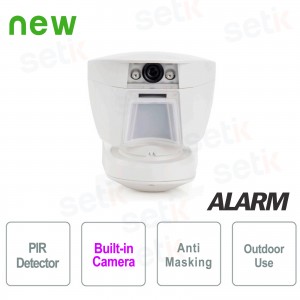

PIR detector:
• Works with BW control panels (version 18 and later).
• 8 patented independent Quad PIR detectors that work in a true Quad configuration (patented) with real motion recognition (TMR) processing data for each of the 8 PIR detectors.
• Advanced Obsidian Black MirrorTM optics (patent pending).
• Optimal performance even in bad weather conditions, such as snow, rain, dust, wind and direct sunlight.
• Anti-sabotage protection against opening and removal from the wall.
• BW FHSS-TDMA bidirectional frequency jump expanded spectrum technology which ensures robustness and reliability.
• Built-in link quality indicators that allow the installer to check the signal quality without physically approaching the control panel.
• Robust container with recessed window.
• Intelligent anti-masking able to distinguish between spray foam and rain.
• Alarm LED visible even in sunlight.
• Automatic interruption of the coverage test after 15 minutes.
• Temperature compensation controlled by the microprocessor.
• Immunity to animals weighing up to 18 Kg.
• Built-in joint bracket.

Integrated camera:
• Up to 10 cameras per BW system.
• Multiple images from all cameras.
• Color and black and white images.
• Automatic setting.
• Camera adjustment through a simple coverage test.
• Day and night CMOS camera, with infrared lighting, allows you to take photos in complete darkness, without the intruder noticing.
• Instant capture: ensures the capture of the rapidly moving intruder.
• Optional AC power.
• An event records 2 images per second. 10-15 images in total.
