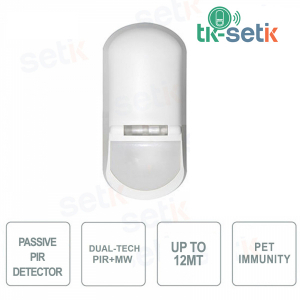

BMD504 PIR+MW alarm motion sensor

BMD504 PIR+MW alarm motion sensor
QUESTIONS ABOUT THE PRODUCT

 
-55%

PIR+MW (microwave) dual technology Passive indoor motion detector, with Pets immunity (Pet Immune). Reliable false alarm detection. Range 12 meters. BMD504 and BLC-204 100% Compatible. Safety. Setik TK-504

Reference: TK-504

Brand: Setik

EAN: 8058258767697

FIND INSTALLER

€26.90

€59.78 -55%
taxes included
Tax included
  Available
 Available
discover the available quantity

PASSIVE PIR MOTION DETECTOR + MW (MICROWAVE) - PET IMMUNITY - SETIK

Rivelatore di movimento con immunità agli animali domestici

DESCRIPTION:
 TK-504 Dual Pet Immune Technology.

The new generation indoor dual-tech PIR detector is based on MCU processor with ASIC technology and 10.525GHZ Doppler Detection Module, which can distinguish the real movement of an intruder or the interference of environmental factors.

The newly adopted algorithm has the PIR detector immunized for strong EMI/RFI and light interference. The supplied heating element and temperature compensation technology greatly increase the applicability in different temperature environments.

Product details

Rilevatore di movimento Doppia Tecnologia PIR+MW Passivo da interno con pet immunity
  • Passive indoor motion detector - Setik
  • Dual Technology PIR+MW (Microwave) with MCU processor with ASIC technology and 10.525GHZ Doppler Detection Module which can distinguish the real movement of an intruder or the interference of environmental factors.
  • Range 12 meters
  • PET Immunity: Immunity to pets
  • Immune to strong EMI / RFI and light interference
  • Temperature compensation technology for using the device at different temperatures
    • Possibility of wall installation with TK-MB bracket
  • Dimensions: 125*60*38mm

Area di copertura sensore allarme TK-504 Setik

Data sheet

model TK-504
System
power input 9-14V DC
power consumption

10mA in standby mode
30mA in alarm mode
Alarm Output

NC
up to 30VDC, 100mA
Alarm Period 2 Sec
Pulse count 1 or 2 Selectable
LED indicator

LED is ON/OFF Selectable
Blue=PIR Channel, Red=Alarm Mode,
Yellow=Warm up&MW Channel
Output tamper

NC, 30VDC, 1A
Open when cover is removed
RFI Protection 30V/m 10 - 1000MHz
EMI Protection 50000V Electronic Interference
White Light Immunity Up to 8000 LUX
Temperature Compensation Yes
PIR Sensitivity Adjustable and Pulse Selection Yes
detection area 90 degree X 12M at 25°C
Operating Temperature -10°C to 50°C
Operating Humidity ≦95%
size 125*60*38mm

Further details

DISCOVER THE FULL RANGE OF TK SETIK SENSORS

Model Guy Characteristics Coverage
TK-501 Internal Volumetric Wired Sensor PIR, Pet Immune 12MT
TK-504 Internal Volumetric Wired Sensor PIR+MW, Pet Immune 12MT
TK-504A Internal Volumetric Wired Sensor PIR+MW, Pet Immune, Anti-Masking 12MT
TK-405M Visible magnetic contact Metal
TK-415-TF Recessed magnetic contact ABS
TK-314N Recessed magnetic contact 6mm ABS
TK-450N Visible magnetic contact for up-and-over doors Zinc alloy
TK-314CSA Recessed magnetic contact Copper
TK-403AP Visible magnetic contact Zinc alloy
TK-RY60 Barrier Transmitter and Receiver Max range 60M, for indoors and outdoors
TK-RY100 Barrier Transmitter and Receiver Max range 100M, for indoors and outdoors
