AMC Triple Technology alarm sensor (2PIR + MW), ideal for outdoor installations, even in difficult environments. Accurately checks the origin of possible false notifications, also programmable via software. Possibility of using different types of lenses, coverage from 3 m to 15 m, internal event memory that can be activated when the system is armed. SOUTDOOR/T
FIND INSTALLER
€288.29
€339.16 -15%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

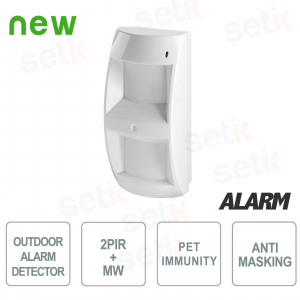

TRIPLE TECHNOLOGY OUTDOOR ALARM SENSOR (2PIR +MW) - AMC
DESCRIPTION: This device is equipped with Triple Technology (2PIR + MW) , coverage from 3 to 15 meters and internal event memory that can be activated when the system is armed. Possibility of using different types of lenses. Ideal product for outdoor installations, even in particularly difficult environments (e.g. garden with many plants and various animals). Extremely reliable product. |
Product details
- Alarm Sensor - AMC
- Triple Technology "2PIR + MW"
- Ideal for installations in outdoor environments
- Also suitable for particularly difficult environments (e.g. garden with many plants and various animals)
- Accurately check the origin of possible false notifications
- Also programmable via software
- Coverage from 3 m to 15 m
- Internal event memory that can be activated when the system is armed
- Different types of lenses depending on the type of installation (volumetric, vertical/horizontal awning)
- Adjustable immune PET
- Double anti-blinding
- Tear-proof and anti-opening tamper with micro switch
- Anti-rotation tamper with accelerometer if the sensor is mounted on a joint
- No. 4 freely configurable output relays for the alarm, masking, blinding and malfunction functions
- Sensor Block input (microwave exclusion and visual signals with the system disarmed)
- Flow rate adjustment trimmer in stand alone function
- Bicolor Red and Green LED
- N° 6 Dip switches for the different configurations
- Wall joint with internal cables model SN3 (not included)
- Temperature -30°+70°
- Quality product
Data sheet
| SOUTDOOR/L | SOUTDOOR/BC | SOUTDOOR/T | SOUTDOOR 800 | |
| CAPACITY | 6 - 12 m | 3 - 15 m | 3 - 15 m | 15m |
| HORIZONTAL COVERAGE | 90° | 90° | 90° | 90° |
| PYROELECTRIC | digital pyroelectrics | digital pyroelectrics | 2 items | digital pyroelectrics |
| LENS 1 | Fresnel (22 patterns on 3 levels) | Fresnel (22 patterns on 3 levels) | Fresnel (22 patterns on 3 levels) | Fresnel (22 Patterns on 3 levels) |
| LENS 2 | Fresnel horizontal curtain (11 patterns on 1 level) | Fresnel horizontal curtain (11 patterns on 1 level) | Fresnel horizontal curtain (11 patterns on 1 level) | Fresnel horizontal curtain (11 patterns on 1 level) |
| OPTIONAL LENS | Fresnel vertical curtain (11 patterns on 11 levels) | Fresnel vertical curtain (11 patterns on 11 levels) | Fresnel vertical curtain (11 patterns on 11 levels) | Fresnel vertical curtain (11 patterns on 11 levels) |
| DIET | 10.5 - 15V | 3 - 9V | 9 - 15V | 1/2AA 3.6V battery |
| CONSUMPTION (ALARM/STAND-BY) | 35mA / 20mA @ 13.8V | 5 mA / 9 uA @ 9 V | 52 mA / 46 mA @ 13.8 V | 12uA min. - 26mA max |
| PET IMMUNITY | YES | YES | YES | YES |
| COVER | ABS | ABS | ABS | ABS |
| DEGREE OF PROTECTION | IP 65 | IP 65 | IP 65 | IP 44 |
| OPERATING TEMPERATURE | from -30°C to +70°C | from -30°C to +70°C | from -30°C to +70°C | from -30°C to +60°C |
| DIMENSIONS | 185 x 85 x 66mm | 185 x 85 x 66mm | 185 x 85 x 66mm | 185 x 85 x 70 mm |
