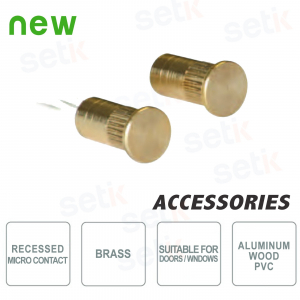

Built-in brass microcontact with high mechanical resistance

Built-in brass microcontact with high mechanical resistance
QUESTIONS ABOUT THE PRODUCT

 
-20%

Built-in brass microcontact with high mechanical resistance. Certified according to EN50131-2-6, very small dimensions. Flush mounting, Brass body, Suitable for aluminum, wood, PVC doors and windows. With anti-tamper wire loop (tamper). Quality product. Setik CSA 314-CSA

Reference: CSA 314-CSA

Brand: EATON - COOPER CSA

EAN: 8054934901676

FIND INSTALLER

€7.66

€9.58 -20%
taxes included
Tax included
  Available
 Available
discover the available quantity

DISCOVER THE ALTERNATIVES!

CSA 314-CSA - TK-314CSA alternative

FLUSH MOUNTING BRASS MICROCONTACT - SMALL DIMENSIONS - SETIK

Microcontatto in ottone ad incasso

DESCRIPTION:
 The CSA 314-CSA flush contact is one of the best flush mount brass microcontacts on the market.

Despite its small size, it can be used in most situations thanks to special rare earth magnets and miniaturized reed bulbs.

Suitable for mounting on aluminum, wood, PVC window frames and window frames in non-ferromagnetic material in general

Product details

  • Recessed microcontact - Setik
  • Typology: Magnetic contact with high mechanical resistance
  • Material: Body in brass
  • Suitable for mounting on aluminium, wood, PVC window frames and window frames made of non-ferromagnetic material in general (mounting on iron window frames significantly reduces the operating distance)
  • Press-fit assembly on the window by making a 6 mm diameter hole
  • Connection is 4 wires (2 wires NC contact with nearby magnet and 2 wires for tamper)
  • Certified according to EN50131-2-6
  • Very small dimensions
  • Flush mounting
  • Quality product

Microcontatto da incasso in ottone - Setik

Data sheet

Container material Natural brass
Operation NC output reed contact with magnet nearby
Connection type Flush (2 for contact + 2 for tamper)
Operating temp -25°C ÷ +50°C
Degree of protection IP65
Standard equipment Tamper (tamper) wires

Further details

SERIES 314 - Discover the other products!
CSA 314-N CSA Cooper RECESSED MICROCONTACT WITH TOROIDAL MAGNET
Reference: CSA 314-N

Recessed brass micro contact with CSA Cooper toroidal magnet. Suitable for aluminum, wood, PVC doors and windows. Wire connection with anti-tamper loop (tamper). Safety. CSA 314N
CSA 300-MA CSA Cooper CSA COOPER FLAT MAGNET FOR MICROCONTACTS
Reference: CSA 300-MA

CSA Cooper flat magnet Diameter 12 H 2,5 Hole 3 SV , compatible with CSA 314 series microcontacts . CSA 300-MA
