Long range double technology barrier. MANA DT is the combination of 2 MANA MW (Microwave device with working frequency 24GHz in K band with cavity and 200mm parabola and 4 different channels) and 4 ACTIVE INFRARED height 2 Meters. 220V power supply. Allocabile battery 12V maximum 7Ah. I deale for the external protection of large sites. Safety. MANADT20250
FIND INSTALLER
discover the available quantity

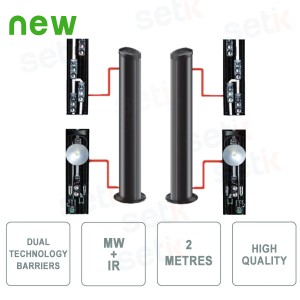

PAIR OF MICROWAVE DEVICES (MW) + 4 ACTIVE INFRARED RAYS (IR) - SETIK
|
DESCRIPTION: |
Product details
- Capacity mw from 10 to 250mt
- MW frequency at 24GHz in K-band (only approved frequency in all Europe)
- Halved lobe diameter compared to traditional frequencies (up to 4m at maximum flow)
- 4 switchable mw modulation channels
- Maximum IR range up to 650m indoors and 250m outdoors
- Dual lens IR with 50mm lenses
- Impulse beam photodevices, working wave 950NM
- Temperature control resistors
- Compatibility with the other IR PARVIS MES and SANDOR PLUS barriers (with maximum capacity foreseen for the latter)
- Wired synchronization
- 220V power supply
- Anticorodal aluminum structure with polycarbonate protective screen
- Wall and pole anchoring brackets without piercing the casing
- Height from 1.5m to 3m (standard)
- Possibility of arriving up to 4m (optional)
- Allocabile battery 12V maximum 7Ah.
