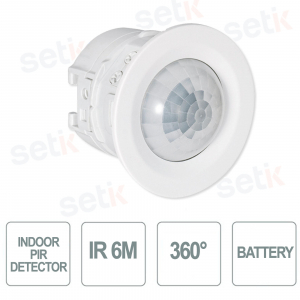

Indoor PIR Detector IR 6m 360° Battery Operated - Optex

Indoor PIR Detector IR 6m 360° Battery Operated - Optex
-32%

The 360-degree volumetric IR detection with flush-mounted installation ensures complete and reliable coverage in indoor environments. Designed for a variable fixing height between 2.5 and 4.5 meters , this detector offers a range of 6 meters with optimal performance even when fixed high, up to 4.5 meters . The compact dimensions without mounting box are 52 x 42.5 mm . Dimensions 86x86x42.5 mm, Battery powered - AP-360BR



Reference: AP-360BR

Brand: Optex

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Discover all optex products extensive catalogue of outdoor sensors. You will find optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. The whole world of Optex intrusion detection

[short_description] =>

Optex

OPTEX manufacturer and world leader in high-performance sensing technology. For more than 40 years in the market, Optex has thousands of customers around the world who choose them every day for their reliable detection systems.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex intrusion detection sensors, optex catalog, optex outdoor sensors, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

INDOOR PIR DETECTOR - IR 6M - 360° - BATTERY POWERED - OPTEX

AP-360B

Product details

  • PIR Detector
  • From inside
  • To branch
  • Fixing height from 2.5 to 4.5 m
  • IR detector coverage 6m
  • Dimensions 86 x 86 x 42.5 mm
  • Battery operated

Technical data sheet

Model

AP-360BR
Detection method Passive infrared
Detection area ø6 m (ø20') at mounting height 4.5 m (14'9”)
Mounting height 2.5 to 4.5 m (8'2” to 14'9”)
Mounting type Recessed ceiling mount/86-type box mount
Sensitivity 2.0℃ at 0.6 m/s (3.6°F at 2'/s)
Detection speed 0.3 to 3.0 m/s (1'/s to 9'10”/s)
LED indicator Warm-up upon power on: blinking Stand-by: off Walk test: solid on Alarm: solid on
Alarm cycle Approx. 2 s

Illuminance

-
Battery saving timer 120s/ 5s selectable
Alarm output NO/NC, 3.6V DC 10mA max.
Tamper switch NC 28V DC 100mA max
The contact opens once the casing is detached.
Warm up time Approx. 60 s
Power supply 2.7 to 3.6 V DC (CR123A battery)
Current 3V DC
Stand-by: 10A, Max.: 4mA
PIR sensitivity H/M/L
Weight 50g (1.76oz)
Operation temperature -20 to +50℃ (-4°F to +122°F)
Operation humidity < 95%
Location Indoors
Dimensions ø52 x 42.5 mm (ø2.05 in. x 1.67 in.): without switch box mount
86 x 86 x 42.5 mm (3.39 x 3.39 x 1.67 in.): with 86-type box mount

AP-360B detection area.jpg

AP-360B dimensions
