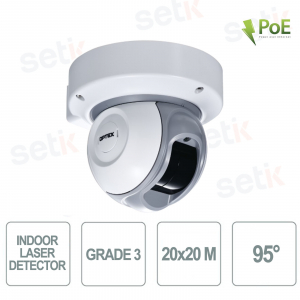

Indoor Laser Detector 20x20 95° - IP/PoE - Optex

Indoor Laser Detector 20x20 95° - IP/PoE - Optex
-32%

The indoor laser scan detector offers precise coverage of 20x20 meters, both horizontally and vertically, with a detection angle of 95° . Equipped with IP/POE technology, it boasts a multi-angle adjustment coverage structure and a unique detection algorithm that guarantees high performance. Thanks to the automatic and advanced zone settings, it is possible to configure up to 4 adjustable detection areas when connected via IP. Compliant with TS-503131-2-11 Grade 3 standards. Dimensions 146x160x160 mm - RLS-2020I



Reference: RLS-2020I

Brand: Optex

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Discover all optex products extensive catalogue of outdoor sensors. You will find optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. The whole world of Optex intrusion detection

[short_description] =>

Optex

OPTEX manufacturer and world leader in high-performance sensing technology. For more than 40 years in the market, Optex has thousands of customers around the world who choose them every day for their reliable detection systems.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex intrusion detection sensors, optex catalog, optex outdoor sensors, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

INDOOR LASER MOTION DETECTOR - 95° - 20x20 M - IP/POE - OPTEX

Rilevatore Iaser

Product details

  • Laser Detector
  • Of movement
  • From inside
  • To branch
  • Power 10.5 to 30 VDC, PoE (IEEE802.3 af/at compliant)
  • Detection coverage 20x20 m
  • Standard TS-503131-2-11 Grade 3
  • IP66 protection
  • Dimensions 146 x 160 x 160 mm
  • Weight: 1.0 Kg

Technical data sheet

Model

RLS-2020I
Installation Interiors
Detection technology Infrared laser scanning
Laser protection class Class 1
Input power 10.5 to 30 VDC, PoE (IEEE802.3 af/at compliant)
Absorption 500mA max. (12 VDC), 250mA max. (24 Vdc), 6W max. (PoE)
Installation Method Ceiling, wall, tripod, pole (optional), recessed (optional) mounting
Detection zones 20 x 20 m, 95°
Detection field Range 1 to 21 m at 10% reflectance

Detection resolution /
Response time

0.25° /between 75 ms and 15 minutes
Installation height (vertical mode) 2 mo higher
Communication port Ethernet RJ-45 10BASE-T/100BASE-TX (auto-negotiation)
Relay Protocol TCP/IP, UDP/IP, DHCP, DNS, HTTP, HTTPS, FTP, SNMPv1 /v2clv3, ICMP, ARP
Exit 3 outputs, 28 Vdc, 0.2 A max. NO/NC Selectable (3 from Master alarm, Zone outputs, fault, tamper)
Entrance -
Alarm time approx. 2s delay timer
Operating temperature From -40 °C to +50 °C
Dimensions (H×W×D), Weight 146 x 160 x 160 mm, 1.0 kg
IP Rating IP66

RLS-2020I detection area

RLS-2020I dimensions
