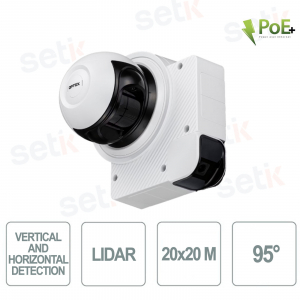

20x20 95° Indoor/Outdoor Short Range Lidar Detector - PoE+ - Optex

-32% New

The LIDAR series detector is an innovative solution equipped with an integrated infrared (IR) camera, designed to ensure optimal performance in different environments. Thanks to the detection mode based on infrared laser scanning, it offers precise and effective coverage over an area of 20x20 meters. The robustness of the design is certified by the IP66 protection index, which ensures resistance to atmospheric agents and the most extreme conditions. Dimensions 206.7x202.6x163.5 mm - RLS-2020V

Reference: RLS-2020V

Brand: Optex

FIND INSTALLER

https://www.setik.biz/en/sensors/11270-optex-rls-2020v-20x20-95-indooroutdoor-short-range-lidar-detector-poe-optex.html

€2,874.56

€4,227.30 -32%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

Description Product Details Data Sheet Download

INDOOR/OUTDOOR SHORT RANGE LIDAR SERIES DETECTOR - 95° - 20x20M - POE+ - OPTEX

Product details

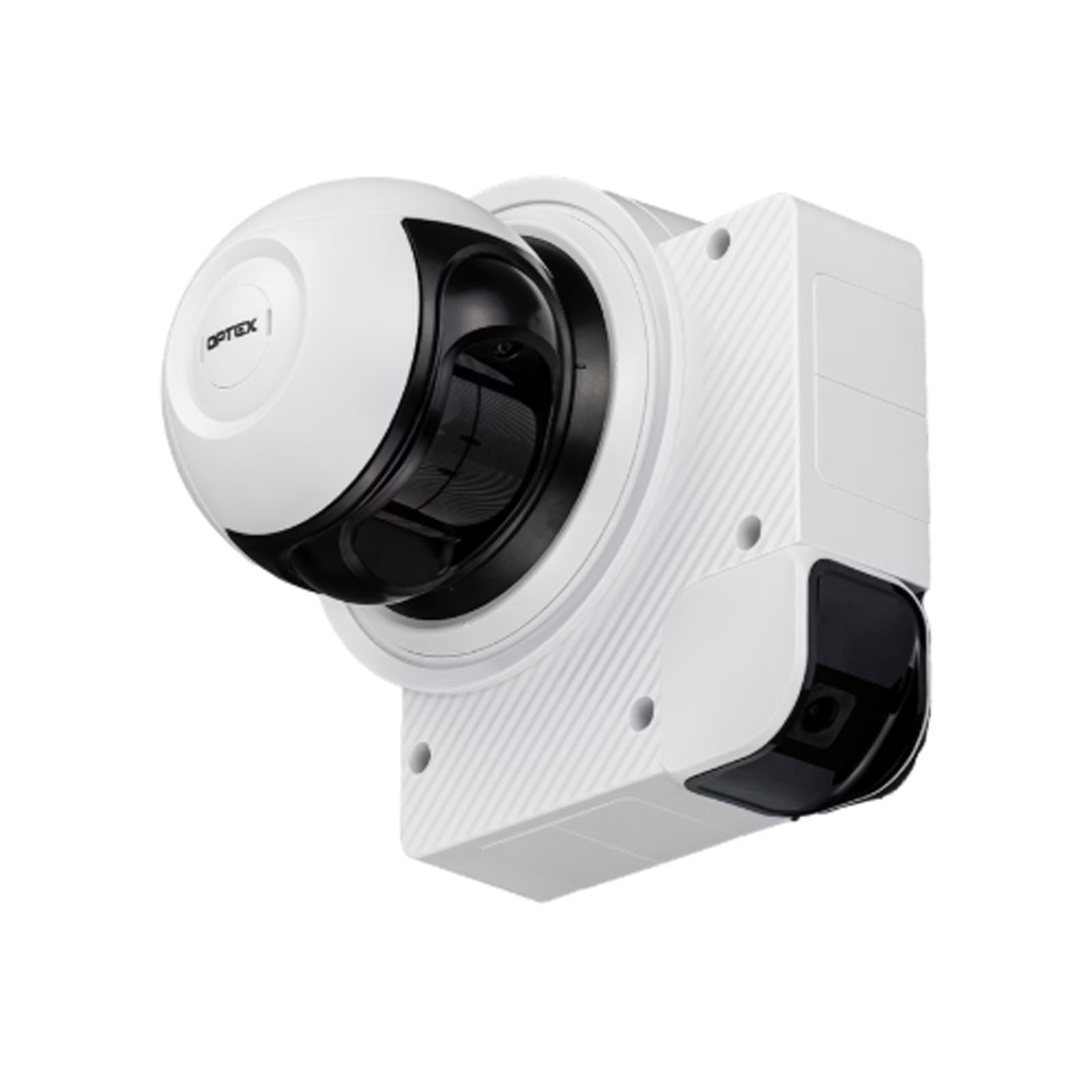

LIDAR detector
Built-in camera with IR
To branch
Power supply 19.2-30V DC, PoE+
Detection coverage 20x20 m
IP66 protection
Dimensions 202.6 x 206.7 x 163.5 mm
Weight: 1.6 Kg

Technical data sheet

Model	RLS-2020V
Place of installation	Interior/Exterior
Detection method	Infrared Laser Scanning
Laser protection class	Class 1
Input power	19.2-30 VDC, PoE+ (IEEE 802.3 af/at compliant)
Absorption	580 mA max. (24V DC), 14W max. (PoE+)
Installation Method	On the ceiling, on the wall, on the pole

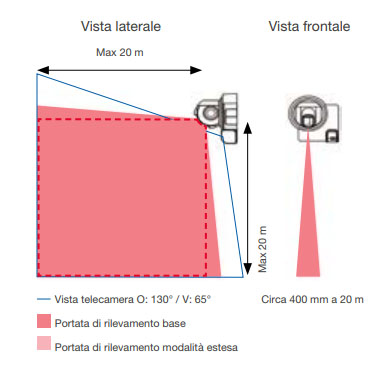

Detection zones	20 x 20 m, 95 degrees
Detection field	Range 1 to 21 m at 10% reflectance
Detection resolution / Response time	0.125 degrees / 100 ms to 15 min / 0.25 degrees / 50 ms to 15 min
Installation height (vertical mode)	Interior: 2 mo more / Exterior: 4 mo more (Recommended)
Communication port	Ethernet RJ-45 10BASE-T/100BASE-TX (auto-negotiation)
Protocol	UDP/TCP/HTTP/HTTPS/IPV4/IPV6/DNS/DHCP/ SNMPv1-v3/NTP/WS-Discovery/ONVIF/IEEE802.1X
Exit	6 outputs, 28V DC, 0.2A max. NO/NC (selectable) (6 from main alarm, zone alarm, fault, tamper, environmental disqualification, device monitoring) (programmable) RS-485
Entrance	2 dry contact inputs (detection profile switching, area setting, sensor control, LED switching, AND/NAND logic creation, dynamic event filtering (programmable)
Alarm duration	Timer about 2 seconds delay
Operating temperature	From -40 °C to +60 °C

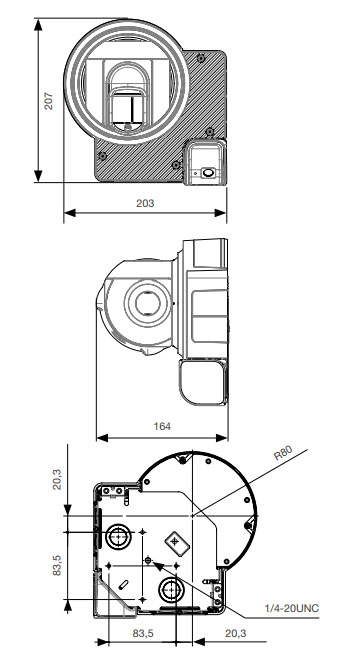

Dimensions (H×W×D), Weight	202.6 x 206.7 x 163.5 mm max., 1.6 kg
IP Rating	IP66
