Outdoor dual infrared detector with anti-masking function provides a detection coverage of 50 x 30 meters , offering 100 detection zones. It features an intelligent sensor that adapts sensitivity based on ambient light and temperature, supported by an advanced detection algorithm for optimal performance. Anti-vandalism functions protect the device from tampering, while the logical detection and range selector ensures customized configuration. The alarm range is adjustable and the installation is compatible with heights between 2.3 and 4 meters , making it a versatile solution for outdoor security. - SIP-5030
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

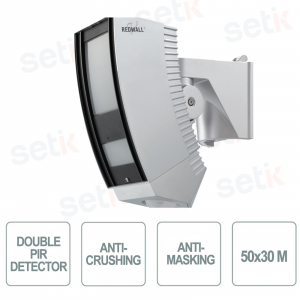

OUTDOOR DUAL PIR DETECTOR WITH ANTI-CRAWLING AND ANTI-MASKING ZONE - 50x30 M - OPTEX

Product details
- Outdoor Dual PIR Detector
- Anti-creep
- Anti-masking
- To branch
- Detection coverage 30x20 m
- Mounting for height 2.3 - 4 m
- Dimensions 271x102x290 mm
- Weight: 1.6 Kg
Technical data sheet
Model |
SIP-5030 |
Detection method | Passive infrared |
Coverage (main area) | 50x30 m (165 x 100 ft.) |
Coverage (creep zone) | 3.5m (10x16ft.) installed at 2.3m (7.6ft.) height, 6x9m (20x30ft.) installed at 4m (13ft.) height, detection angle adjustable horizontally |
Power input | 11-16 VDC 22-26 VAC, 22-26 VAC with optional heating unit |
Current draw | 40mA max. (12VDC) 70mA (24VDC), 415mA max. (24VAC) with optional heating unit |
Mounting height | 2.3 to 4m (7.6 to 13ft) |
Sensitivity selector | Far: SH/H/M/L Near: SH/H/M/L |
Range selector | to: On/Off |
Detection logic selector | And/Or |
Alarm output (main area) | NO, NC, 28 VDC 0.2A max. |
Alarm output (creep zone) | NO, NC, 28 VDC 0.2A max. |
Alarm interval period | Off/15, 30, 60 sec. |
Troubleshooting | NC, 28 VDC 0.2 A max. |
Tamper-proof | NC, 28 VDC 0.1 A max. |
Alarm period | approx. 2 sec. |
Warm-up period | approx. 60 sec. |
Operating temperature | -25 to 60°C, -40 to +60°C with optional heating unit (-13 to + 140°F, -40 to 140°F with optional heating unit) |
IP rating | Main unit: IP66 Frame: IP55 |
Dimensions | 271x102x290 mm (10.7x4.0x11.4 in.) |
Weight | 1.6kg (56oz) |
