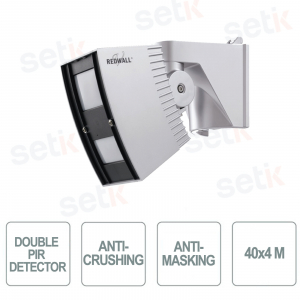

Outdoor dual infrared detector with anti-masking function ensures a detection coverage of 40 x 4 meters , offering 24 detection zones. 3-axis accelerometer for tampering and anti-rotation alarm with double shielding of the pyroelement. The alarm range is adjustable and the installation is compatible with heights between 2.3 and 4 meters , making it a versatile solution for outdoor security. - SIP-404/5



Reference: SIP-404/5

Brand: Optex

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Discover all optex products extensive catalogue of outdoor sensors. You will find optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. The whole world of Optex intrusion detection

[short_description] =>

Optex

OPTEX manufacturer and world leader in high-performance sensing technology. For more than 40 years in the market, Optex has thousands of customers around the world who choose them every day for their reliable detection systems.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex intrusion detection sensors, optex catalog, optex outdoor sensors, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

OUTDOOR DUAL PIR DETECTOR WITH ANTI-CRAWLING AND ANTI-MASKING ZONE - 40x4 M - OPTEX

Rilevatore a doppio PIR

Product details

  • Outdoor Dual PIR Detector
  • Anti-creep
  • Anti-masking
  • To branch
  • Detection coverage 40x4 m
  • Mounting for height 2.3 - 4 m
  • Dimensions 248x102x266 mm
  • Weight: 1.4 Kg

Technical data sheet

Model

 SIP-404/5
Detection method Passive Infrared
Coverage (main area) 40x4 m (100 x 13 ft.)
Coverage (creep zone) 3x5m (10x16ft.) installed at 2.3m (7.6ft) height, 6x9m (20x30 ft.) installed at 4m (13ft.) height, Detection angle adjustable horizontally
Power input 11-16 VDC 22-26 VAC, 22-26 VAC with optional heating unit
Current draw 40mA max. (12VDC) 75mA (24VDC), 415mA max. (24VAC) with optional heating unit
Mounting height 2.3 to 4m (7.6 to 13ft)
Sensitivity selector Far: SH/H/M/L Near: SH/H/M/L
Range selector to: On/Off
Detection logic selector And/Or
Alarm input (main area) NO, NC, 28 VDC 0.01A max.
Alarm input (creep zone) NO, NC, 28 VDC 0.01A max.
Alarm interval period Off/15, 30, 60 sec.
Troubleshooting NC, 28 VDC 0.2 A max.
Tamper-proof NC, 28 VDC 0.1 A max.
Alarm period approx. 2 sec.
Warm-up period approx. 60 sec.
Operating temperature -25 to 60°C, -40 to +60°C with optional heating unit (-13 to + 140°F, -40 to 140°F with optional heating unit)
IP rating Main unit: IP66
Frame: IP55
Dimensions 248x102x266 mm (9.08x4.0x10.5 in.)
Weight 1.4 Kg (48 oz)

SIP-404-5 detection area

SIP-3020-5 dimensions

Download

Brochure not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
