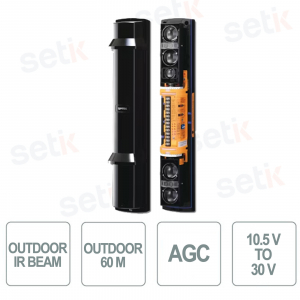

QUAD infrared barrier for outdoor range 60m - wired - Optex

QUAD infrared barrier for outdoor range 60m - wired - Optex
-32% New

Quad infrared barrier with a range of up to 60 meters , ideal for high-performance security systems. Equipped with automatic gain control (AGC) for precise adjustment and a 2x magnification viewfinder for optimal alignment. Compatible with a power supply voltage of 10.5V to 30V DC, IP65. - SL-200QN



Reference: SL-200QN

Brand: Optex

FIND INSTALLER

€267.96

€394.06 -32%
taxes included
Tax included
 Available in 5 days
 starting

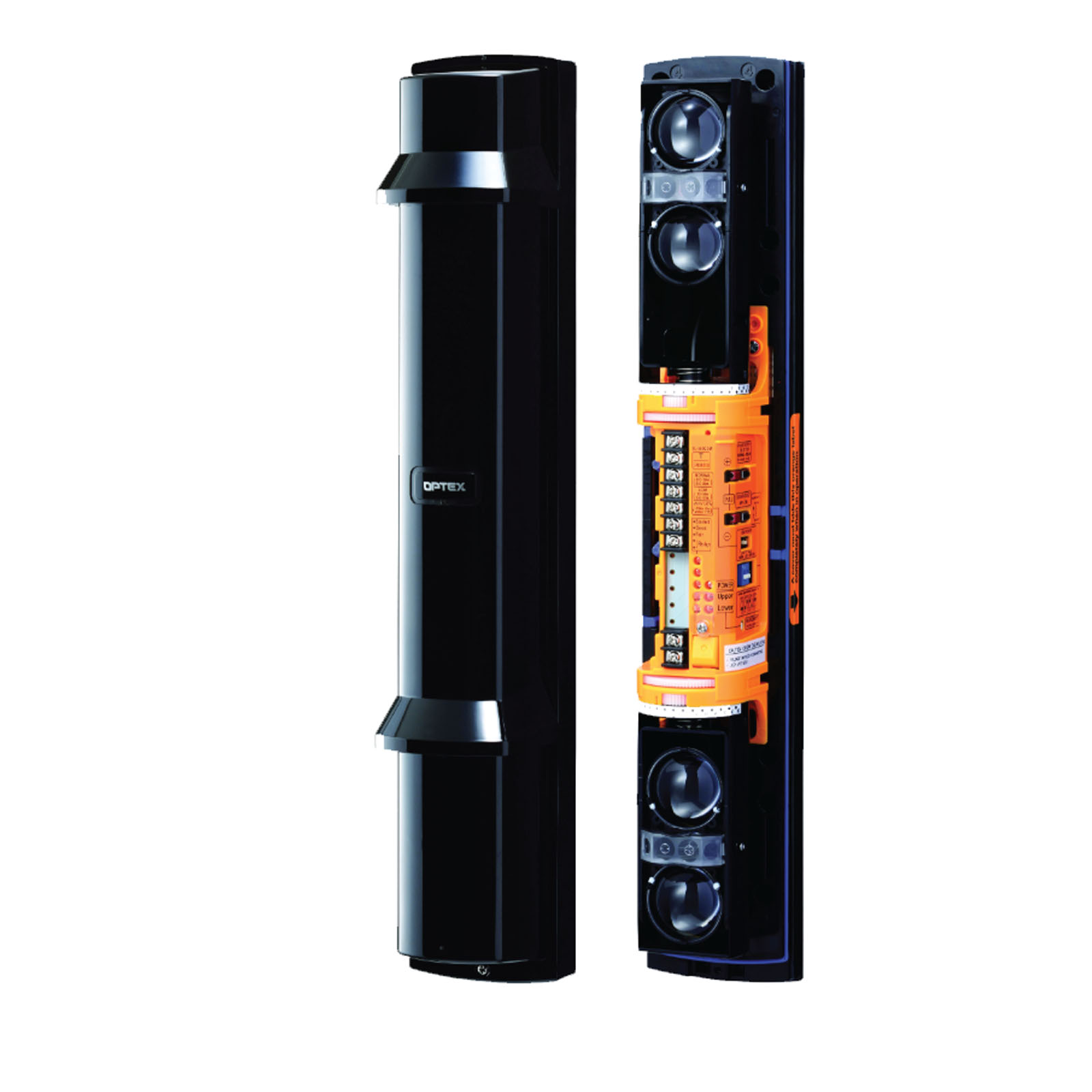

OUTDOOR QUAD ACTIVE INFRARED BARRIER - 60M RANGE - LONG RANGE - OPTEX

Barriera a raggi infrarossi QUAD

Product details

  • QUAD long range outdoor infrared barrier
  • To branch
  • Range 60 m outside
  • Consumption: 38mA
  • Power supply: 10.5 - 30VDC
  • Working temperature: -25°C ~ +60°C
  • Dimensions: 448 x 79 x 96 mm

Technical data sheet

Model SL-200QN
Maximum detection range 60m / 200ft
Maximum distance from arrival 600m / 2000ft
Detection method Quad infrared beam interruption detection
Selectable beam frequency 4 channels
Interruption time Variable between 50/100/250/500 ms (4 steps)
Power source 10.5 - 30VDC
Current draw 38mA
(Transmitter:8mA Receiver:30mA)
Output
Alarm output Form C relay : 30VDC, 0.2A
Alarm period 2 sec (±1) (Nominal)
Tamper-proof NC (contact output) : 30VDC, 0.1A Opens when cover removed.
Operating temperature -25°C - +60°C (-13°F - 140°F)
Operating humidity 95% (max.)
Alignment angle ±90° Horizontal, ±10° Vertical
Dimensions 448 x 79 x 96 mm
Weight 2400g(84.7oz) (Total weight of Transmitter + Receiver, excluding accessories)
International protection IP65

Download

Brochure not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
