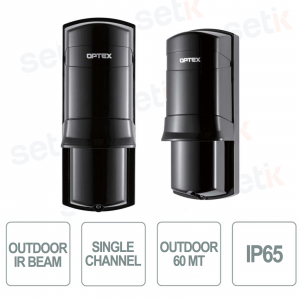

Outdoor double beam infrared barrier with 60m range. Adjustable beam interruption time at 50, 100, 250 and 500ms - IP65 protection. - AX-200TN
€105.36
€154.94 -32%CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
OUTDOOR DOUBLE BEAM INFRARED BARRIER - RANGE 60M - IP65
Product details
- Double beam infrared barrier
- To branch
- Range 60 m outside
- Beam interruption time adjustable to 50, 100, 250 and 500ms
- Consumption: 45mA
- Power supply: 10.5 - 28V DC
- Working temperature: -35°C ~ +60°C
- IP65 protection
- Dimensions: 170 x 65 x 70 mm
Technical data sheet
Model | AX-200TN |
Detection method | Infrared beam interruption detection |
Maximum detection range | 60m (200ft.) |
Maximum arrival range | 600m (2000ft.) |
Interruption period | Selectable between 50, 100, 250, and 500m sec. |
Selectable beam frequency | No |
Power Supply | 10.5 - 28V DC |
Current consumption (transmitter + receiver) | 45mA (max.) |
Alarm period | 2sec. (±1) nominal |
Alarm output | NC 28V DC, 0.2A (max.) |
DQ output | No |
Tamper switch | Opens when cover is removed at 28V DC, 0.2A max |
Operation Temperature | -35°C to +60°C (-31°F to +140°F) Use the optional heating unit (HU-3) in conditions of -25°C (-13°F) or below. |
Operating Humidity | 95% (Max) |
Alignment Angle | ± 90° Horizontal, ± 5° Vertical |
Mounting | Wall and pole mounting |
Weight | 650g (22.9oz.) |
IP rating | IP65 |
