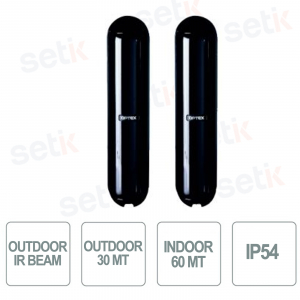

Outdoor Double Beam Barrier - Wireless - IP54 - Optex

Outdoor Double Beam Barrier - Wireless - IP54 - Optex
-32%

Synchronized double beam barrier with built-in alarm buzzer and optical-acoustic alignment, available in black. Offers a range of 30 meters outdoors and 60 meters indoors. Equipped with alarm relay (NO/NC) for security, local alarm, signaling and automation functions. Detection occurs through the simultaneous interruption of the two infrared beams. IP54 protection rating, ideal for both indoor and outdoor applications . - BX-100PLUS



Reference: BX-100PLUS

Brand: Optex

EAN: 788924082127

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Discover all optex products extensive catalogue of outdoor sensors. You will find optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. The whole world of Optex intrusion detection

[short_description] =>

Optex

OPTEX manufacturer and world leader in high-performance sensing technology. For more than 40 years in the market, Optex has thousands of customers around the world who choose them every day for their reliable detection systems.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex intrusion detection sensors, optex catalog, optex outdoor sensors, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

OUTDOOR DOUBLE BEAM BARRIER WITH WIRE - RANGE OF 30 M

Barriera a doppio fasio

Product details

  • Double beam barrier
  • Built-in alarm buzzer
  • Wireless
  • Range 30 m outside, 60 m inside
  • Alarm relay (NO/NC)
  • Simultaneous interruption of the 2 infrared beams.
  • Multi-level area: 2.5 m max
  • Detectable speed 50 msec
  • Power supply: 10.5 - 28 VDC
  • Working temperature: -35°C ~ +55°C
  • IP54 protection
  • Dimensions: 231 x 52 x 61 mm


Technical data sheet

Model BX-100PLUS
Coverage Outdoor: 30m (100 ft.)
Indoor: 60m (200 ft.)
Maximum Arrival Distance 300 m (1,000 ft.)
Detection Method Simultaneous interruption of 2 infrared beams
Beam Characters Plused Infrared
Interruption Period 50 msec
Power Supply 10.5 - 28V DC
Current Consumption 55mA (Standby) / 75mA (max)
Alarm period 2 ± 1 sec (Delay)
Relay Output 2 relay outputs NO and NC
28VDC 0.2A (Max) each
Beeping Period 15 ± 1 sec (Delay)
Volume of Audible alarm indicator Approx 70 dB (at 1meter distance)
Tamper NC opens when cover is removed
Operation Temperature -35 °C ~ + 55 °C ( -30°F ~ -131°F)
Operating Humidity 95% (Max)
Alignment Angle ± 92%
Mounting Wall (indoor/outdoor)
Operating temperature -20°C to +50°C (-4°F to +122°F)
Weight 400g (14.1oz.)
IP rating IP54

Download

Brochure not available
