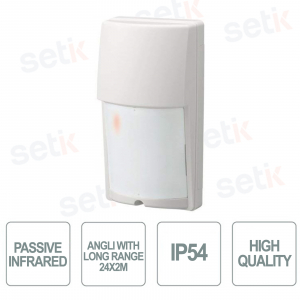

Outdoor Passive Infrared Detector - Wired - IP54 - Optex

Outdoor Passive Infrared Detector - Wired - IP54 - Optex
QUESTIONS ABOUT THE PRODUCT

 
-32%

Passive infrared detector for outdoor use. Long range detector of 24x2 meters, ideal for monitoring multi-level areas up to 2.5 m high. Also perfect for spaces with pets, with a fixing height between 1.20 m and 1.50 m from the floor. IP54 protection rating for resistance to atmospheric agents. Equipped with a twilight sensor and output for controlling lights, it guarantees safety and practicality in any environment. - LX-802N



Reference: LX-802N

Brand: Optex

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Discover all optex products extensive catalogue of outdoor sensors. You will find optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. The whole world of Optex intrusion detection

[short_description] =>

Optex

OPTEX manufacturer and world leader in high-performance sensing technology. For more than 40 years in the market, Optex has thousands of customers around the world who choose them every day for their reliable detection systems.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex intrusion detection sensors, optex catalog, optex outdoor sensors, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER

CLEARANCE SALE ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

OUTDOOR PASSIVE INFRARED DETECTOR WITH WIRES - 24X2M LONG RANGE DETECTION AREA

Rivelatore passivo infrarossi

Product details

  • Passive infrared detector
  • Type: Outdoor passive infrared detector
  • To branch
  • Detection area 24 x 2 m, long range
  • Current consumption 25 mA max
  • Pet passage area: 1.2m - 1.5m
  • Multi-level area: 2.5 m max
  • Detectable speed 0.3 m - 1 m/s
  • Power supply: 10.8 - 13.2 VDC
  • Working temperature: -20°C ~ +50°C
  • IP54 protection
  • Dimensions: 141 x 74.8 x 57.5 mm


Technical data sheet

Model LX-802N
Detection method Passive infrared
Detection area 24m x 2m (80 ft. x 6.6 ft.)
Long and narrow
Multi-level coverage area 12 zones
Pet alley area coverage 4 zones
Multi-level mounting area 2.5m (8.3 ft.)
Mounting Pet Alley Area 1.2 - 1.5 m (4 - 5 ft.)
Detectable speed 0.3 m/s - 1.0 m/s (1'/s - 3.3/s)
Sensitivity adjustment Selectable 3 positions (H, M, L)
LED indicator LED lights during detection
Alarm period 2 1 sec. (delay timer)
Alarm output NC.NO.28V DC 0.2A max
Tamper switch Opens when cover removed
Pulse count 2 (20 5 sec.) or TEST (1 pulse)
Day/night mode adjustment Approx. 10 to 100,000 lux
Warm-up period Approx. 60 sec
Power input 10.8 - 13.2V DC
Current draw 25mA max
Installation location Wall (indoor/outdoor)
Operating temperature -20°C to +50°C (-4°F to +122°F)
Humidity environment 95% max
Weight 190g (6.8oz.)
IP rating IP54
