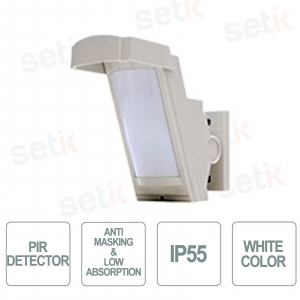

Dual IR Detector. Low power consumption, 12m range, battery operated, outdoor detection setting with anti-masking, 85° rotation flexibility. Animal immunity and advanced temperature compensation. Configurable sensitivity and alarm output, fixing height 2.5m - 3.00m, IP55 protection - HX-40RAM



Reference: HX-40RAM

Brand: Optex

EAN:

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Discover all optex products extensive catalogue of outdoor sensors. You will find optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. The whole world of Optex intrusion detection

[short_description] =>

Optex

OPTEX manufacturer and world leader in high-performance sensing technology. For more than 40 years in the market, Optex has thousands of customers around the world who choose them every day for their reliable detection systems.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex intrusion detection sensors, optex catalog, optex outdoor sensors, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

OUTDOOR BATTERY-OPERATED LOW-POWER DUAL IR DETECTOR - RANGE 12M - ANTI-MASKING

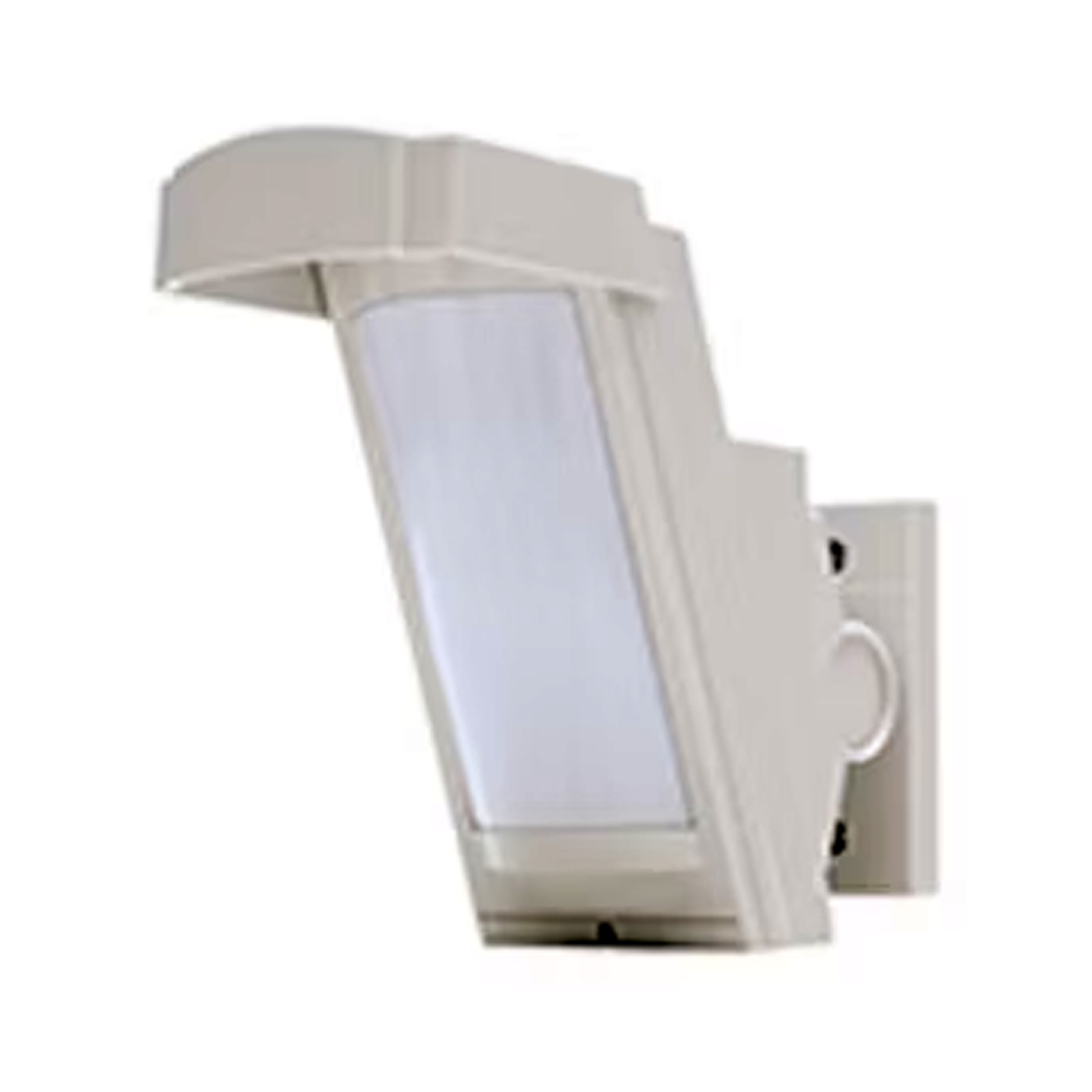

Rivelatore PIR a doppio fascio

Product details

  • Dual IR Detector
  • Type: Dual IR detector, low consumption for outdoor use
  • Battery operated
  • Anti-masking
  • Range 12m
  • Fixing height 2.5m - 3.00m
  • 85° rotation flexibility
  • Power supply: 3 - 7.2 VDC Lithium Battery (CR123 x 3, CR2 x 3, 1/2AA x 6)
  • Working temperature: -20°C ~ +60°C
  • IP55 protection
  • Dimensions: 205mm x 99mm x 266mm


Technical data sheet

Model HX-40RAM
Detection method Passive infrared
Anti-masking Yes
PIR coverage 12m (40') 85" wide/94 zones
PIR distance limit 4.0 5.5m 9.0m (13'1", 18'1", 29'6")
Detectable speed 0.3 m/s - 1.5 m/s (1'/s - 4'11"/s)
Sensitivity 2.0 °C (3.6°F) at 0.6m/s
Power Input 3 - 7.2 VDC Lithium Battery (CR123 x 3, CR2 x 3, 1/2AA x 6)
Operating voltage 2.5 9VDC
Current draw 30 μA (standby) / 4 mA (max.) at 3 VDC.
Alarm period 2.0 ± 1 sec.
Worm-up period Approx. 90 sec. (LED blinks)
AlarmOutput From C - solid state switch - 10 VDC 0.01 A (max.)
Tamper-Output From C 28 V DC 0.1 A (max.) activates when cover is removed
Troubleshooting NC/NO selectable - solid - State Switch - 10 VDC 0.01A max.
Aux input NO
LED indicator Disable: During normal operation
Enable: During WALK TEST or LED SW on
Red: Warm-up, alarm, trouble, Low battery
RF interference No alarm 10V/m
Operating temperature -20 °C ~ + 60 °C ( -4° -+ 140° F)
Humidity environment 95% max
Weatherproof IP55
Mounting Wall
Mounting height 2.5-3.0 m (8'2" - 9'10")
Bracket adjust angle 600 g

Download

Brochure in English
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
