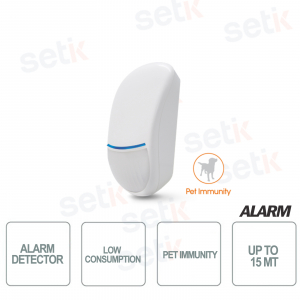

DT2AM - EN 50131-2-4 / GRADE 3 - Dual Anti-masking Technology with EOL resistors
Dual technology sensor with EOL resistors , Range up to 15 m, 100° horizontal coverage, Anti-tear protection, EOL resistors, Microwave frequency 9.3 - 9.9 ~ 10.5 GHz, WALK TEST LED, Anti-crawling, RFI protection 30 V/m, Pet immunity , Power supply 13.8 Vdc
FIND INSTALLER
DT2AM | AMC ELECTRONICS
The DT2AM sensor is one of AMC Elettronica's high-performance sensors, from the PRO line.
This device is a Dual Technology with Anti-masking , it is Pet Immune, it has a range of 15MT with opening up to 100° . It has EOL resistors, anti-tear/anti-opening/tamper protection, pulse counter and status LED. A special feature is the presence of Fresnel lenses LODIFF® POLY IR® material which guarantee detection stability. Totally digital technology and self-diagnosis operation. Dimensions 114 x 63 x 40mm
Product details
- Dual Technology Sensor with Anti-Masking and EOL Resistors - AMC
- Led Walk Test
- Microwave Frequency 9.3 - 9.9 - 10.5 Ghz
- Solid State Relay
- EOL Resistors
- Anti-creep device
- Tamper / Anti-opening device
- Anti-tear device
- Pulse Counter
- RFI protection 30V/m
- Thermal Compensation
- Totally digital
- Possibility of articulation
- Diet
- Cover
- Pet Immunity
- Operating temperature: -10°C to +40°C
- Dimensions: 114 x 63 x 40mm
| Model | DT2AM |
| Range | 15 meters |
| Angle | 100° |
| Lens | Fresnel lens LODIFF® material POLY IR®4 |
| LED | green, yellow, blue |
| Alarm Time | 2" |
| Self-Test | yes |
| Walk test's led | yes |
| microwave frequency | 9.3 - 9.9 - 10.5GHz |
| Solid State Relay | yes |
| Internal EOL resistors | yes |
| Creep Zone | yes |
| Anti-opening tamper | yes |
| Back tamper | Yes |
| Anti-masking device | yes |
| Pulse counter | yes |
| RFI Protection | 30V/m |
| Temperature compensation | yes |
| Full digital | yes |
| Brackets available | yes |
| Power Supply | 13.8Vdc |
| Housing | ABS |
| Pet immunity | yes |
| Operating temperature | from -10°C to +40°C |
| Dimensions | 114 x 63 x 40 mm |
HIGH PERFORMANCE SENSORS - AMC:
| Model | IR1 | DT1 | DT2AM |
| Range | 15 meters | 15 meters | 15 meters |
| Angle | 100° | 100° | 100° |
| Lens | Fresnel lens LODIFF® material POLY IR®4 | Fresnel lens LODIFF® material POLY IR®4 | Fresnel lens LODIFF® material POLY IR®4 |
| LED | blue | green, yellow, blue | green, yellow, blue |
| Alarm Time | 2" | 2" | 2" |
| Self-Test | - | - | yes |
| Walk test's led | yes | yes | yes |
| microwave frequency | - | 9.3 - 9.9 - 10.5GHz | 9.3 - 9.9 - 10.5GHz |
| Solid State Relay | yes | yes | yes |
| Internal EOL resistors | yes | yes | yes |
| Creep Zone | yes | yes | yes |
| Anti-opening tamper | yes | yes | yes |
| Back tamper | Yes | Yes | Yes |
| Anti-masking device | - | - | yes |
| Pulse counter | yes | yes | yes |
| RFI Protection | 30V/m | 30V/m | 30V/m |
| Temperature compensation | yes | yes | yes |
| Full digital | yes | yes | yes |
| Brackets available | yes | yes | yes |
| Power Supply | 13.8Vdc | 13.8Vdc | 13.8Vdc |
| Housing | ABS | ABS | ABS |
| Pet immunity | yes | yes | yes |
| Operating temperature | from -10°C to +40°C | from -10°C to +40°C | from -10°C to +40°C |
| Dimensions | 114 x 63 x 40 mm | 114 x 63 x 40 mm | 114 x 63 x 40 mm |
