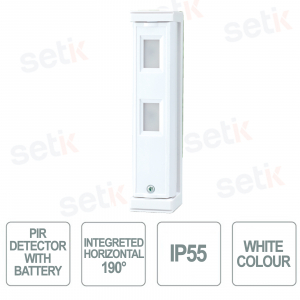

Wired External Double IR Detector. 12m per side with anti-masking, Completely independent detection setting for each side, Two PIRs for each side, Configurable sensitivity and alarm output, Variable detection speed from 0.3 to 2.0 m/s, IP55 protection - BXS-STW
https://www.setik.biz/en/sensors/10456-optex-ftn-st-copy-of-outdoor-wired-double-ir-detector-ip55-optex.html
€41.48
€61.00 -32%
taxes included
discover the available quantity
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DOUBLE IR WIRED EXTERNAL DETECTOR - 12M COVERAGE ON EACH SIDE
Product details
- Double IR detector
- Type: Outdoor wired double IR detector
- Detection speed from 0.3 to 2.0 m/s
- Dimensions: 200mm x 93mm x 53mm
- 2 sensitivity levels
Data sheet
| Detection method | Passive infrared |
| Coverage | 24 m; 12 m on each side, 4 zones; 2 zones on each side, 180° narrow beam |
| PIR coverage limit | Selectable on 5 levels: m 2.50, 3.50, 6.00, 8.50, 12.00 |
| Detection angle from the wall | From the wall: 0° inclined forwards Away from the wall: 3° inclined forwards selectable |
| Detectable speed | from 0.3 to 2.0 m/s |
| Sensitivity | Normal: 2.0°C @ 0.6 m/s High extreme: 1.0°C @ 0.6 m/s individually selectable for each side |
| Supply voltage | from 9.5 to 18Vdc. |
| Current absorption (except during the walk test) |
31mA max. @ 12Vdc |
| Alarm period | 2.0 ± 1 second |
| Warm-up period | 60 seconds or less (LED flashes) |
| Alarm output (Right) | 100mA 28Vdc. max. [right individual or general], [NA or NC] selectable |
| Alarm output (Left) | 100mA 28Vdc. max. [Individual left or general], [NA or NC] selectable |
| Fault output | - |
| Tamper output | NC 100mA 28Vdc. max. It opens when the front cover, main unit or base is removed |
| LED indicators | red LED; 1. Heating, 2. Alarm (DIP switch ON or motion test) |
| Operating temperature | from -30°C to +60°C |
| Ambient humidity | 95% max. |
| Degree of protection | IP 55 |
| Fixing | Wall-mounted, pole-mounted (outdoors, indoors) |
| Fixing height | from m 0.80 to 1.20 |
| G weight | 430 |
| Accessories | Screw (4x20mm) x 2 |
