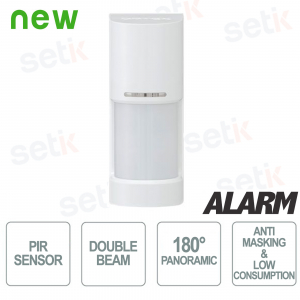

Dual beam outdoor PIR detector . Detection coverage with low absorption anti-masking, 2m high fixing, 9m range and 180° panoramic, programmable in 2 levels. Easy anti-fall masking. Double conductive shielding against disturbances due to strong light. WXS-RAM
FIND INSTALLER
DOUBLE BEAM OUTDOOR PIR DETECTOR - LOW ABSORPTION ANTIMASKING - 9 METERS RANGE AND 180° PANORAMIC - OPTEX
|
DESCRIPTION: This device features 2 adjustable detection beams, advanced temperature compensation logic and immunity to ambient noise. Extremely reliable product. |
Product details
- Passive Infrared PIR Detector - Optex
- Low absorption anti-masking
- Type: outdoor dual beam PIR detector
- Adjustable detection coverage up to 9 meters and 180° panoramic
- 9.5V ~ 18V DC power supply
- Operating Temperature -30 to 60°C (-22 to 140°F)
- IP55 protection
- Dimensions 201.5mm x 92mm x 86.3mm
Data sheet
| Model | VXS-RAM |
| System | |
| Detection method | Passive infrared, Antimasking Low consumption |
| PIR Coverage | 9.0m 180° wide |
| PIR Distance Limit | 0.8 – 1.2 m (2 levels) |
| Detectable Speed | 0.3 – 1.5 m/s (0.98 – 4.92 ft/s) |
| Sensitivity | 2.0°C (3.6°F) at 0.6 m/s |
| Power Input | 9.5 – 18V DC |
| Current Draw | 20 mA (max.) at 12 V DC |
| Alarm Period | 2.0 ±1 sec. |
| Warm-up Period | Approx. 60 sec. (LED blinks |
| Alarm Output | NC/NO Selectable 28V DC 0.1A (max) |
| Tamper Output | NC 28 V DC 0.1 A (max) open when cover removed. |
| LED indicator | Red: Warm-up, alarm, masking detection (VXI-AM only) |
| RF interference | No alarm 10 V/m |
| Operating temperature | -30 – +60°C (-22 – +140°F) |
| Environment humidity | 95% max |
| International Protection | IP55 |
| Mounting | Wall, Pole (Outdoor, Indoor |
| Mounting Height | 0.8 – 1.2 m (2.64 – 3.94 ft) |
| Weight | 500 g (17.7 oz.) |
| Dimensions | 201.5mm x 92mm x 86.3mm. |
