Dual beam PIR detector. Detection coverage with adjustable anti-masking up to 12 meters and 90° panoramic, programmable in 2 levels. Easy anti-fall masking. Double conductive shielding against disturbances due to strong light. VXS-AMW
€120.29
€176.90 -32%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

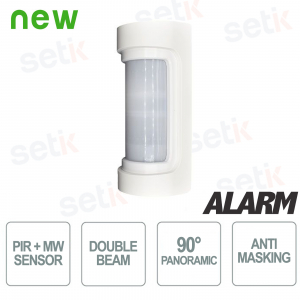

DOUBLE BEAM PIR DETECTOR - ANTIMASKING - 12 METERS RANGE AND 90° PANORAMIC - OPTEX
DESCRIPTION: This device features 2 adjustable detection beams, advanced temperature compensation logic and immunity to ambient noise. Extremely reliable product. |
Product details
- Passive Infrared PIR Detector - Optex
- Anti-masking
- Type: Dual beam PIR detector
- Adjustable detection coverage up to 12 meters and 90° panoramic, 16 zones wide
- 9.5V ~ 18V DC power supply
- Operating Temperature -30 to 60°C (-22 to 140°F)
- IP55 protection
- Dimensions 200 x 82 x 71 mm
Data sheet
Model | VXS-AMW |
System | |
Detection method | Passive infrared, Antimasking |
PIR Coverage | 12.0 m (40 ft) 90° wide / 16 zones |
PIR Distance Limit | 0.8 – 1.2 m (2 levels) |
Detectable Speed | 0.3 – 1.5 m/s (0.98 – 4.92 ft/s) |
Sensitivity | 2.0°C (3.6°F) at 0.6 m/s |
Power Input | 9.5 – 18V DC |
Current Draw | 20 mA (max.) at 12 V DC |
Alarm Period | 2.0 ±1 sec. |
Warm-up Period | Approx. 60 sec. (LED blinks |
Alarm Output | NC/NO Selectable 28V DC 0.1A (max) |
Tamper Output | NC 28 V DC 0.1 A (max) open when cover removed. |
LED indicator | Red: Warm-up, alarm, masking detection (VXI-AM only) |
RF interference | No alarm 10 V/m |
Operating temperature | -30 – +60°C (-22 – +140°F) |
Environment humidity | 95% max |
International Protection | IP55 |
Mounting | Wall, Pole (Outdoor, Indoor |
Mounting Height | 0.8 – 1.2 m (2.64 – 3.94 ft) |
Weight | 500 g (17.7 oz.) |
Dimensions | 200mm x W:82mm x D:71mm. |
