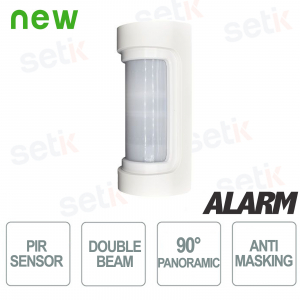

Outdoor 90° panoramic double IR PIR detector with anti-masking - IP55 - Optex

Outdoor 90° panoramic double IR PIR detector with anti-masking - IP55 - Optex
-32%

Outdoor PIR detector. Detection coverage with adjustable anti-masking up to 12 meters and 90° panoramic, programmable in 2 levels. Easy anti-fall masking. Double conductive shielding against disturbances due to strong light. VXS-AMW



Reference: VXS-AMW

Brand: Optex

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Discover all optex products extensive catalogue of outdoor sensors. You will find optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. The whole world of Optex intrusion detection

[short_description] =>

Optex

OPTEX manufacturer and world leader in high-performance sensing technology. For more than 40 years in the market, Optex has thousands of customers around the world who choose them every day for their reliable detection systems.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex intrusion detection sensors, optex catalog, optex outdoor sensors, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

OUTDOOR PIR DETECTOR - ANTIMASKING - 12 METERS RANGE AND 90° PANORAMIC - OPTEX

Rivelatore PIR a doppio fascio

DESCRIPTION:
The detector VXS-AMW is one of the best outdoor PIR detectors with anti-masking on the market.

This device features 2 adjustable detection beams, advanced temperature compensation logic and immunity to ambient noise.

Extremely reliable product.

Product details

  • Passive Infrared PIR Detector - Optex
  • Anti-masking
  • Type: outdoor PIR detector
  • Adjustable detection coverage up to 12 meters and 90° panoramic, 16 zones wide
  • 9.5V ~ 18V DC power supply
  • Operating Temperature -30 to 60°C (-22 to 140°F)
  • IP55 protection
  • Dimensions 200 x 82 x 71 mm

Rilevatore PIR infrarosso passivo doppio fascio

Data sheet

Model VXS-AMW
System
Detection method Passive infrared, Antimasking
PIR Coverage 12.0 m (40 ft) 90° wide / 16 zones
PIR Distance Limit 0.8 – 1.2 m (2 levels)
Detectable Speed 0.3 – 1.5 m/s (0.98 – 4.92 ft/s)
Sensitivity 2.0°C (3.6°F) at 0.6 m/s
Power Input 9.5 – 18V DC
Current Draw 20 mA (max.) at 12 V DC
Alarm Period 2.0 ±1 sec.
Warm-up Period Approx. 60 sec. (LED blinks
Alarm Output NC/NO Selectable 28V DC 0.1A (max)
Tamper Output NC 28 V DC 0.1 A (max) open when cover removed.
LED indicator Red: Warm-up, alarm, masking detection (VXI-AM only)
RF interference No alarm 10 V/m
Operating temperature -30 – +60°C (-22 – +140°F)
Environment humidity 95% max
International Protection IP55
Mounting Wall, Pole (Outdoor, Indoor
Mounting Height 0.8 – 1.2 m (2.64 – 3.94 ft)
Weight 500 g (17.7 oz.)
Dimensions 200mm x W:82mm x D:71mm.
