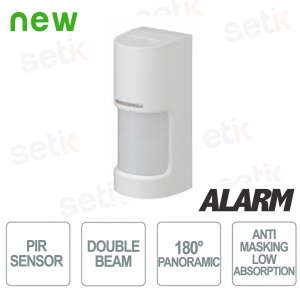

180° panoramic double IR PIR detector for outdoors with low absorption anti-masking - IP55 - Optex

180° panoramic double IR PIR detector for outdoors with low absorption anti-masking - IP55 - Optex
-32%

Dual beam PIR detector with low absorption anti-masking. Adjustable detection coverage up to 12 meters and 180° panoramic, programmable in 2 levels. SMDA (Super Multi Dimension Analysis) , Easy anti-fall masking. Double conductive shielding against disturbances due to strong light. VXI RAM



Reference: WXI-RAM

Brand: Optex

FIND INSTALLER

€175.05

€257.42 -32%
taxes included
Tax included
 Available in 5 days
 starting


DOUBLE BEAM PIR DETECTOR - WITH LOW ABSORPTION ANTIMASKING - 12 METERS RANGE AND 180° PANORAMIC - OPTEX

Rivelatore PIR a doppio fascio

DESCRIPTION:
The WXI-RAM detector is one of the best dual beam PIR detectors with low absorption anti-masking on the market.

This device is equipped with 2 adjustable detection beams and SMDA (Super Multi Dimension Analysis), advanced temperature compensation logic and immunity to environmental noise.

Extremely reliable product.

Product details

  • Passive Infrared PIR Detector - Optex
  • Low absorption anti-masking
  • Type: Dual beam PIR detector
  • Adjustable detection coverage up to 12 meters and 180° panoramic, programmable in 2 levels
  • Power supply 9.5V ~ 18V DC /20 mA
  • Operating Temperature -30 to 60°C (-22 to 140°F)
  • IP55 protection
  • Dimensions 200 x 81.5 x 119.2 mm

Rilevatore PIR infrarosso passivo doppio fascio

Data sheet

Model WXI-RAM
System
Detection method Passive infrared, anti masking low absorption
PIR Coverage 12.0 m (40 ft) 180° wide / 14 zones
PIR Distance Limit 0.8 – 1.2 m (2 levels)
Detectable Speed 0.3 – 1.5 m/s (0.98 – 4.92 ft/s)
Sensitivity 2.0°C (3.6°F) at 0.6 m/s
Power Input 9.5 – 18V DC
Current Draw 20 mA (max.) at 12 V DC
Alarm Period 2.0 ±1 sec.
Warm-up Period Approx. 60 sec. (LED blinks
Alarm Output NC/NO Selectable 28V DC 0.1A (max)
Tamper Output NC 28 V DC 0.1 A (max) open when cover removed.
LED indicator Red: Warm-up, alarm, masking detection (VXI-AM only)
RF interference No alarm 10 V/m
Operating temperature -30 – +60°C (-22 – +140°F)
Environment humidity 95% max
International Protection IP55
Mounting Wall, Pole (Outdoor, Indoor
Mounting Height 0.8 – 1.2 m (2.64 – 3.94 ft)
Weight 500 g (17.7 oz.)
Dimensions 200 x 81.5 x 119.2 mm
