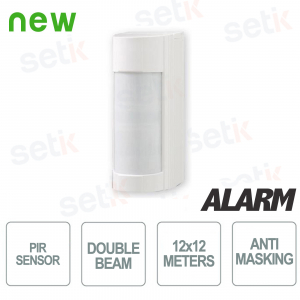

Dual beam PIR detector with anti-masking. Adjustable detection coverage up to 12 meters and 90°, programmable in 5 levels. SMDA (Super Multi Dimension Analysis) , Easy anti-fall masking. Double conductive shielding against disturbances due to strong light. VXI-AM
https://www.setik.biz/en/sensors/10344-optex-vxi-am-double-beam-wired-pir-detector-for-outdoor-anti-masking-12-metres-and-90-ip55-setik.html
€96.23
€141.52 -32%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DOUBLE BEAM PIR DETECTOR WITH ANTIMASKING - 12 METERS RANGE AND 90° - SETIK
DESCRIPTION: This device is equipped with 2 adjustable detection beams and SMDA (Super Multi Dimension Analysis), advanced temperature compensation logic and immunity to environmental noise. Extremely reliable product. |
Product details
- Passive Infrared PIR Detector - Setik
- Type: dual beam PIR detector with anti-masking
- Adjustable detection coverage up to 12 meters and 90°, programmable in 5 levels
- Power supply 9.5V ~ 18V DC /20 mA
- Operating Temperature -30 to 60°C (-22 to 140°F)
- IP55 protection
- Dimensions 181.9 x 70.9 x 64.5 mm
Data sheet
| Model | VXI-AM |
| System | |
| Detection method | Passive infrared |
| PIR Coverage | 12.0 m (40 ft) 90° wide / 16 zones |
| PIR Distance Limit | 12 – 2.5 m (5 levels) |
| Detectable Speed | 0.3 – 1.5 m/s (0.98 – 4.92 ft/s) |
| Sensitivity | 2.0°C (3.6°F) at 0.6 m/s |
| Power Input | 9.5 – 18V DC |
| Current Draw | 24 mA (max.) at 12 V DC |
| Alarm Period | 2.0 ±1 sec. |
| Warm-up Period | Approx. 60 sec. (LED blinks |
| Alarm Output | NC/NO Selectable 28V DC 0.1A (max) |
| Tamper Output | NC 28 V DC 0.1 A (max) open when cover removed. |
| LED indicator | Red: Warm-up, alarm, masking detection (VXI-AM only) |
| RF interference | No alarm 10 V/m |
| Operating temperature | -30 – +60°C (-22 – +140°F) |
| Environment humidity | 95% max |
| International Protection | IP55 |
| Mounting | Wall, Pole (Outdoor, Indoor |
| Mounting Height | 0.8 – 1.2 m (2.64 – 3.94 ft) |
| Weight | 500 g (17.7 oz.) |
| Dimensions | 181.9 x 70.9 x 64.5 mm |
