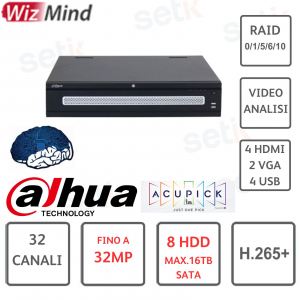

NVR DAHUA 32CH 2U 8HDD WizMind-UP TO 32MP-ARTIFICIAL INTELLIGENCE

NVR DAHUA 32CH 2U 8HDD WizMind-UP TO 32MP-ARTIFICIAL INTELLIGENCE
-57%

Dahua -NVR608RH-32-XI - 32 channel ONVIF IP NVR - Resolution up to 32MP - H.265+ Codec - Artificial Intelligence and Video Analysis - AcuPick Support - RCA Audio - Alarm - SATA for 8HDD up to 16TB (not included) - RAID mode support - eSATA - HDMI interface - VGA - RJ45 2500Mbps - RS232 - RS485 - Synchronous playback up to 16 channels - For desktop or rack mounting.

Third-party camera access: ONVIF; RTSP; Sony; Axis; Arecont; Pelco; Canon; Samsung



Reference: NVR608RH-32-XI

Brand: Dahua

FIND INSTALLER

€2,667.07

€6,202.48 -57%
taxes included
Tax included
 Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


NVR608RH-32-XI-NVR 32 CHANNELS - IP ONVIF DAHUA - MAX. DECODING CAPABILITY 32 x 1080p - H.265+ - VIDEO ANALYSIS - ARTIFICIAL INTELLIGENCE - 8HDD 16TB MODE - DAHUA -
VERSION WITHOUT POE PORTS!

Prodotto marca Dahua
ONVIF IP Nvr 32 Channels - Dahua - NVR608RH-32-XI
Up to 32MP - AI disabled: 1280 Mbps in, 1280 Mbps recording and 1024 Mbps out. AI enabled: 640 Mbps in, 640 Mbps recording and 512 Mbps out.
- Video Compression up to H.265+
Audio 1in/2out and Alarm 16in/8out - Supports 8x SATA 16TB HDD - Supports RAID mode - 4x HDMI - 2x VGA - RS-232 - RS-485 - 4xUSB ports (2xUSB 2.0 + 2xUSB3.0) - Hard Disk NOT included - 24 months manufacturer's warranty - Power supply 100–240 VAC, 50/60 Hz - For desktop or rack mounting.
Artificial Intelligence : Perimeter Protection, Face Detection, SMD Plus, Metadata, ANPR.
Third-party camera access: ONVIF; RTSP; Sony; Axis; Arecont; Pelco; Canon; Samsung
AcuPick support
4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

Product details

VERSION WITHOUT POE PORTS!

ONVIF® standard Onvif is the most important standard in the IP world.
Being Onvif guarantees a wide range of IP devices compatible with each other (DVRs/cameras).

This NVR is ONVIF® compatible

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

This NVR features 32 channels

32 channels.

Maximum resolution 32MP (2 active channels)

Synchronized playback of up to 16 channels

BAND:

AI disabled: 1280 Mbps in, 1280 Mbps recording and 1024 Mbps out.

AI enabled: 640 Mbps in, 640 Mbps recording and 512 Mbps out.

New 8k Technology
Even higher resolution than 4K!
More detail available, greater sense of depth and realism.

HDMI1 and HDMI2 support a maximum resolution of 4K.

HDMI3 supports a maximum resolution of 8K.

HDMI4 supports a maximum resolution of 1080p.

Artificial Intelligence Technology

This video recorder supports some ARTIFICIAL INTELLIGENCE functions

  • Perimeter protection,
  • face detection,
  • SMD Plus,
  • Video Metadata,
  • ANPR.
  • AcuPick support

Dahua AcuPick technology is a video search engine that, by effectively using artificial intelligence, both front-end and back-end, is able to quickly locate the information you need. Use it to find a lost person, locate a specific vehicle or video evidence needed to report an accident.

Questo NVR presenta la visibilità da remoto fino a 20 utenti simultanei

Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS(best CCTV software for Mobile)
Applicazione DMSS di Dahua. Software mobile per la videosorveglianza

Hard Disk

Supports 8x 3.5" SATA Audio / Video AV-GP Hard Disks ( Max 16TB each)

ATTENTION: on NVR systems use specific audio/video discs.
For more information, read our dedicated article .

HARD DRIVE NOT INCLUDED!

Ingressi USB This NVR features 4x USB Ports (2 Rear USB3.0, 2 Front USB2.0)

RAID Function:

The RAID mode allows you to replicate the contents of a disk on a second disk, thus guaranteeing data reliability in the event of disk failure and continuity of service.


Equipped with 4 HDMI ports.

Uscita VGA This product features 2x VGA ports with 1080P resolution!
Questo NVR presenta ingressi e uscite allarme With alarm relay 16 inputs + 8 outputs for burglar alarms or other instruments and to activate external peripherals (gates, sirens, etc.)
Questo DVR presenta ingressi / uscite audio This NVR features 1 bidirectional RCA audio input and 2 outputs
Funzione Sovrascrittura Ability to overwrite the disk when it is full or have the disk overwrite after X days. NVR restart programming to ensure greater stability over time
Funzione invio email in caso di notifica This NVR has email sending.
In case of events (camera blurring, signal cutting, motion, broken disk, network problems etc...), it is able to send a report via email, a sound notification or upload videos & screenshots via FTP
Funzione Motion Motion function. Recording starts when the camera detects movement.
Porta Ethernet RJ-45 ( 10 / 100 / 1000 Mbps) 2x RJ-45 (10/100/1000/2500 Mbps)
Porta RS232 RS 232 to communicate with PC and keyboard
1 RS 485 port for PTZ commands (remotely controlled cameras)
Questo NVR è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month manufacturer's warranty

Data sheet

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

TO THE

AI by Recorder

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus

AI by Camera

Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; object monitoring

AcuPick AI by Camera + Recorder

Max. 32-channel, 1 combined event per channel/s

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Simultaneous mode: 32 channels, 10 IVS rules for each channel Heterogeneous mode: 24 channels, 10 IVS rules for each channel

Perimeter Performance of AI by Camera (Number of Channels)

32 channels

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

Simultaneous mode: 8 channels (up to 12 face images/s each channel) Heterogeneous mode: 5 channels (up to 12 face images/s each channel)

Face Detection Performance of AI by Camera (Number of Channels)

32 channels

Face Recognition

Face Database Capacity

Up to 40 face databases with 300,000 images, with a total capacity of 48 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.

Face Recognition Performance of AI by Recorder (Number of Channels)

Simultaneous mode: 32-channel FD (by camera) + FR (by recorder), image stream: 32 face images/s; 8-channel FD (by recorder) + FR (by recorder), video stream: 16 face images/s Heterogeneous mode: 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s; 5-channel FD (by recorder) + FR (by recorder), video stream: 10 face images/s

Face Recognition Performance of AI by Camera (Number of Channels)

32 channels

SMD Plus

SMD Plus by Recorder

32-channel: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera

32 channels

Video Metadata

Metadata Performance of AI by Recorder (Number of Channels)

8 channels

Metadata Performance of AI by Camera (Number of Channels)

32 channels

People Attributes

9 human body attributes

Human Attributes

Top color, top type, hat, bag, age, gender and umbrella

Motor Vehicle Attributes

License plate, plate color, vehicle model, vehicle logo, plate color, ornament, calling,

Non-motor Vehicle Attributes

Vehicle model, vehicle color, number of persons, helmet.

Vehicle License Plate Comparison

ANPR by Camera (Number of Channels)

32 channels

License Plate Database Capacity

Blocklist and allowlist: 20,000

Audio and Video

Access Channel

32 channels

Network Bandwidth

AI disabled: 1280 Mbps incoming, 1280 Mbps recording and 1024 Mbps outgoing AI enabled: 640 Mbps incoming, 640 Mbps recording and 512 Mbps outgoing

Resolution

32MP; 24MP; 16MP; 12MP; 8MP; 5MP; 4MP; 1080p; 720p; Q1

Decoding Capability

AI disabled: 2-channel 32 MP@30 fps; 2-channel 24MP@30fps; 4-channel 16MP@30fps; 5-channel 12MP@30fps; 8-channel 8MP@30fps; 12-channel 5MP@30fps; 16-channel 4MP@30fps; 32-channel 1080p@30 fps?32-channel D1@30 fps AI enabled: 1-channel 32 MP@30 fps; 1-channel 24MP@30fps; 2-channel 16MP@30fps; 2-channel 12MP@30fps; 4-channel 8MP@30fps; 6-channel 5MP@30fps; 8-channel 4MP@30fps; 16-channel 1080p@30fps? 32-channel D1@30fps

Video Output

2 VGA, 4 HDMI; VGA: 1920×1080, 1280×1024, 1280×720; HDMI1&2: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; HDMI3: 7680×4320, 3840×2160, 1920×1080, 1280×1024, 1280×720; HDMI4: 1920 × 1080, 1280 × 1024, 1280 × 720 Simultaneous mode: max. resolution of VGA1 and VGA2 is 1080p; max. resolution of HDMI1 and HDMI2 is 4K; max. resolution of HDMI3 is 8K; max. resolution of HDMI4 is 1080p Heterogeneous mode: Simultaneous video source output for VGA1 and HDMI1, simultaneous video source output for VGA2 and HDMI2. Max. resolution of VGA1 and VGA2 is 1080p; max. resolution of HDMI1, HDMI2 and HDMI3 is 4K; max. resolution of HDMI4 is 1080p

Multi-screen Display

Main screen: 1/4/8/9/16/25/36 Sub screen: 1/4/8/9/16/25/36

Third-party Camera Access

ONVIF; RTSP; Sony; Axis; Arecont; Pelco; Canon; Samsung

Compression Standard

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MPEG4; MJPEG

Audio Compression

G.711a; G.711u; PCM; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; ISCSI

Mobile Phone Access

iOS; Android

Interoperability

ONVIF (Profile S/profile T/Profile G); CGI; SDK

Browsers

Chrome IE 9 or later Firefox

Network Mode

Multi-address mode, load balance, fault tolerance and other network port binding modes

Recording Playback

Multi-channel Playback

Up to 16 channels

Record Mode

Manual; alarm; motion detection; scheduled

Backup Method

Portable hard drive, eSATA disk, burner, USB device and network

Playback Mode

1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off

Storage

Disk Group

Yes

RAID

RAID 0/1/5/6/10

Hot Swapping

Yes

Alarm

General Alarm

Motion detection; video tampering; video loss; scene changing, PIR alarm, IPC external alarm

Anomaly Alarm

Camera offline; storage errors; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fans

Intelligent Alarm

Face detection; face recognition; perimeter protection (intrusion and tripwire); SMD Plus alarms; ANPR; people counting; stereo analysis; crowd distribution; heat map

Alarm Linkage

Record; snapshot; IPC external alarm output; buzzers; log, preset; e-mail

Port

Audio Input

1-channel RCA

Audio Output

2-channel RCA

Alarm Input

16 channels

Alarm Output

8 channels

HDD Interface

8 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature.

eSATA

1

RS-232

1

RS-485

1×A/B

USB

4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)

HDMI

4

VGA

2

Network Port

2 (10/100/1000/2500 Mbps Ethernet port, RJ-45)

General

Power Supply

100–240 VAC, 50/60 Hz

Redundant Power

Yes

Power Consumption

<18W (without HDD)

Net Weight

8.14 kg (17.95 lb) (without HDD?

Gross Weight

12.24 kg (26.98 lb) (without HDD)

Product Dimensions

444.0 mm × 476.0 mm x 95.0 mm (17.48" × 18.74" × 3.74") (W × D × H)

Packaging Dimensions

571.0 mm × 618.0 mm × 219.0 mm (22.48" × 24.33" × 8.62")(W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperatures

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

10%–93% (RH), non-condensing

Installation

Rack or desktop

Certifications

FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2020, Class A; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55024:2010+A1:2015; EN 55035:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014+A11:2017
