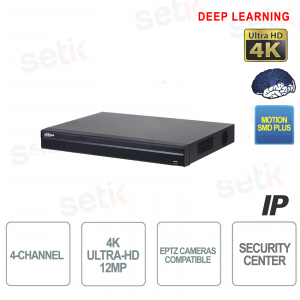

Dahua NVR 4 Channel 4K 12MP IP 4PoE Recorder for video surveillance cameras

Dahua NVR 4 Channel 4K 12MP IP 4PoE Recorder for video surveillance cameras
-57%

New Deep Learning Series | NVR4204-P-4KS3 Dahua IP NVR video recorder for surveillance 4 IP channels and 4 PoE channels up to 12 Megapixel 4K ULTRA-HD , 80/60 Mbps bandwidth, Video Compression up to Smart H.265+, VGA, HDMI (4K) , 2 USB, ONVIF, PoE new graphic interface , supports cameras with EPTZ and SMD plus on board, up to 2 HDD SATA 20 TB. Ideal for retail stores, families, courtyards and public areas. NVR4204-P-4KS3



Reference: NVR4204-P-4KS3

Brand: Dahua

EAN: 6923172569349

FIND INSTALLER

€278.56

€647.82 -57%
taxes included
Tax included
 Available in 5 days
 starting

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


DAHUA DEEP LEARNING SERIES | 4 CHANNEL IP NVR 4 POE CHANNELS 4K 12MP ULTRA-HD H.265 2HDD ARTIFICIAL INTELLIGENCE SUPPORT

Made by Dahua
4 Channel IP Nvr - 4 PoE Channels - New Deep Learning Series - Dahua
4 IP 4K ULTRA-HD channels up to 8Megapixel - Bandwidth 80/60 Mbps - Compression up to Smart H.265+
Support for IP cameras with artificial intelligence and SMD on board . Up to 2HDD 20TB installable - VGA - HDMI(4K) -
2 USB - 1 LAN RJ45 10/100 Mbps - Audio - White color - Hard disk NOT included - 24 month warranty

Tecnologia Intelligenza Artificiale

DEEP LEARNING | THE NEW DAHUA RECORDERS:
Dahua continues its evolution towards increasingly intelligent systems.
The Dahua NVR /L series of IP recorders are highly convenient network video recorders, which provide interesting functions such as local live viewing, multi-screen viewing, real-time storage on local HDD, remote management and control. Ideal for a wide range of applications such as home security, schools, shops, small offices.

As for the features, here are the most important:
- New simpler and more intuitive user interface
- Smart H.265+ / H.264+ Video Coding : greater efficiency in the video coding process and superior video quality. Reduction of storage and transmission costs.
- Support cameras with IVS (artificial intelligence) on board
- Security Center:
for a complete overview of the device security and protection with security scans, certificate management and much more
- 4K resolution



Product details


NVR 8 Canali Dahua 8ch 4K 8MP NVR4204-P-4KS2-L

PoE power supply The advantage of a PoE camera is evident, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation
Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems.

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

4K Risoluzione Ultra HD New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.
Questo DVR presenta 4 canali

4 Channels with resolution up to 12 Megapixel!

Max 80/60 Mbps bandwidth

4 PoE ports

Questo DVR supporta telecamere per la videosorveglianza Supports IP cameras with ONVIF® and RTSP protocols
Interfaccia grafica Dahua

Dahua has released the new graphical interface 4.0 for NVRs!

GUI-NVR 4.0:

New graphical user interface, even more simplified!
Here are the biggest news:

No plugins in the web browser that improves the compatibility of different web browsers

• Supports multi-day search to make goal search easier

• Hard drive format notification to avoid loss of important data

• Better compatibility with TPC, AI fisheye, PTZ cameras, etc.

• New firewall and network security protocol added to protect your system

• Seagate * SHM (SkyHwak Health Management) actively protects your data

Full HD

Cloud function via APP for mobile devices. Compatible Android, iOS
Remote surveillance, live viewing and video playback directly from your phone

EVOPLUS / EASYVIEWER / DMSS

Cloud P2P App DMSS Dahua

Funzione Video Analisi

This video recorder supports cameras with on-board IVS (Intelligence)

- recognizes and records videos containing IVS data on all IP channels.
- records standard intelligence functions
- record premium IVS functions (detect abandoned or lost objects, tripwire violations and intrusion violations.)
- Face detection, people counting and heat map from IP cameras

SMD Plus: Support for cameras with SMD Plus on board.
With the deep learning algorithm, Dahua SMD Plus filters the alarm received from the detection of an uninterested target and effectively recognizes humans and vehicles, sending alarms when the latter appear in the shooting area.

PoE power supply Equipped with: 2 SATA port, up to 20 TB capacity. (Hard disk not included)

ATTENTION: on NVR systems use specific audio/video discs.
For more information, read our dedicated article .
1x RJ-45 (10/100/1000Mbps)

4xRJ–45 ports with PoE power supply (10/100 Mbps)
IP66 WaterProof This NVR features 2x USB 2.0 ports
4K Risoluzione Ultra HD

Resolution up to 4K via HDMI Port!

New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.

Questo DVR presenta ingressi / uscite audio This DVR features 1 audio input and 1 audio output
Funzione Dynamic DNS Dynamic DNS: allows you to reach the NVR even in the case of a Dynamic IP
Warranty

SECURITY CENTER - DAHUA

Security Center provides a complete picture of device security and helps protect your NVR with security scans, attack defense, certificate management, audio and video encryption, and security settings. Security alerts can be sent in various ways such as emails, messages and voice messages.

Security Center is responsible for collecting, processing, analyzing, viewing and storing all data collected from cameras, sensors and other devices on the front end.

An integrated security center for safe cities must ensure continuous seamless communication between various departments, unified incident response and advanced data analytics for smarter and more efficient policing.

Warranty

This product is covered by a 24 month warranty.

Data sheet

Model: DVR NVR4204-P-4KS3
SYSTEM
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operation Interface Web, Local GUI
TO THE
AI by Recorder SMD Plus
AI by Camera Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Perimeter Protection
Perimeter Performance of AI by Camera (Number of Channels) 4 channels
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Camera (Number of Channels) 4 channels
Face Recognition
Face Recognition Performance of AI by Camera (Number of Channels) 4 channels
SMD Plus
SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera 4 channels
Audio and Video
Access Channel 4 channels
Network Bandwidth 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Resolution 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF; QCIF
Decoding Capability AI disabled: 1-channel 12 MP@30 fps; 2-channel 8MP@30fps; 3-channel 5MP@30fps; 4-channel 4 MP@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps
Video Output 1 HDMI, 1 VGA Simultaneous: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous: HDMI: 1920 × 1080, 1280 × 1024, 1280 ×720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display Main Screen: 1/4 Sub Screen: 1/4
Third Party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Compression
Video Smart H.265+/H.265/Smart H.264+/H.264
Audio G.711A/G.711U/PCM/G726
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP cameras, DVR, NVS, etc.)
Mobile Phone Access iOS; Android
Interoperability ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browsers Chrome; IE; Safari; Edge; Firefox
Record Playback
Multi-channel Playback Up to 4 channels
Record Mode General, motion detection; intelligent; alarm
Backup Method USB device and network
Playback Function Instant playback, general playback, event playback, tag playback, smart playback
Storage
Disk Group Yes
Alarm
General Alarm Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Anomaly Alarm Camera disconnection; storage errors; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
Intelligent Alarm Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage Record; snapshot; IPC external alarm output; audio; buzzers; log; presets; e-mail
Port
Audio Input 1-channel RCA
Audio Output 1-channel RCA
Alarm Input 4 channels
Alarm Output 2 channels (1-channel 12V 1A output)
Disk Interface 2 SATA ports. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100 Mbps Ethernet port, RJ-45)
PoE Port 4 ports, 10/100 Mbps, IEEE 802.3 af/at
General
Power Supply 53 VDC, 1.81 A
Power Consumption Total output of NVR is ≤ 10W (without HDD) Total output power of PoE is 36W, the maximum output power of a single port is 25.5W
Net Weight 1.56 kg (3.44 lb)
Gross weight 2.95 kg (6.50 lb)
Product Dimensions 375.0 mm × 282.9 mm × 53.0 mm (14.76" ×11.14" × 2.09") (W × D × H)
Package Dimensions 433.0 mm × 141.0 mm × 366.0 mm (17.05" × 5.55" × 14.41") (W × D × H)
Operating Temperature -10°C to +55°C (+14°F to +131°F)
Storage Temperatures –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH), non-condensing
Installation Rack or desktop
Certifications CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014

Further details

Schema dimensioni NVR4204-P-4KS3

Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
