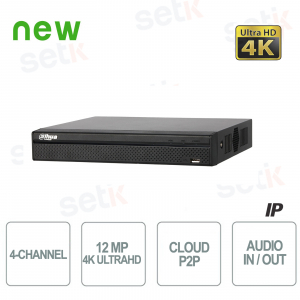

4-Channel IP NVR 4K H.265 up to 12MP 1HDD Audio - Lite Series Dahua

-57%

IP NVR video recorder for surveillance. 4 Channels up to 12Megapixel 4K ULTRA-HD in preview and playback, Max 80Mbps bandwidth, Video Compression H.265 / H.264, 1 HDMI, 1 VGA, Max 1HDD SATA 20TB, 2 USB Ports, 1 Audio Input + 1 Output, 1 RJ-45 10/100Mbps port. ONVIF compatible, support Video Analysis . Lite Series. NVR4104HS-4KS3

>> Version with hard disk included also available! Click here NVR4104HS-4KS3(1t)

Reference: NVR4104HS-4KS3

Brand: Dahua

EAN: 6923172573759

FIND INSTALLER

https://www.setik.biz/en/recording-devices/9637-dahua-nvr4104hs-4ks3-4-channel-ip-nvr-4k-h265-up-to-12mp-1hdd-audio-lite-series-dahua.html

€197.25

€458.72 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

>> Version with hard disk included also available! Click here NVR4104HS-4KS3(1t)

Description Product Details Technical data sheet Further Details Download

4 CHANNEL IP NVR 4K ULTRA-HD UP TO 12 MEGAPIXEL - H.265 - VIDEO AUDIO ANALYSIS - LITE DAHUA SERIES

4 Channel IP Nvr - New 4K Series - Dahua
4 4K ULTRA-HD channels up to 12Megapixel - Max 80Mbps broadband - H.265 / H.264
ONVIF® compatible - Video Analysis supported - 1 Input + 1 Audio Output
Supports 1 HDD SATA 20 TB ( not included ) - 24 month warranty

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?
4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, therefore 3840 X 2160! Already used in the consumer electronics sector, it is finally arriving in the world of security too. The new generation of DAHUA equipment, in fact, allows support for cameras up to 12MPX on the H265 standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image in maximum detail.

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, therefore 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security too. The new generation of DAHUA equipment, in fact, allows support for cameras up to 12MPX on the H265 standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image in maximum detail.

Product details

NVR 4 Canali IP Dahua fino a 8megapixel 4k ultra hd

	This NVR supports video compression in H.264 and also in the new H.265 standard Optimized for Mobile
	New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism.
	4 Channels with resolution up to 12Megapixel! Max 80Mbps bandwidth
	Supports ONVIF® IP cameras Version 2.4
	Supports IP cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more (operation with the models proposed here must be verified on a case-by-case basis)
	This video recorder supports some Video Analysis functions: - Heat map - Line crossing - Intrusion - People counting
	Cloud function with Easy4IP
	This NVR supports cameras with on-board IVS (Video Analysis Functions)
	Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS(best CCTV software for Mobile)
	Compatible with all mobile devices: Android, iPhone,
	Equipped with: 1 SATA III Port, up to 20 TB capacity. (Hard disk not included) ATTENTION: on NVR systems use specific audio/video discs. For more information, read our dedicated article .
	Motion function. Recording starts when the camera detects movement.
	1x RJ-45 (10/100Mbps)
	This NVR features 2x USB Ports
	This product features 1x HDMI port.
	This DVR features 1 audio input and 1 audio output
	Dynamic DNS: allows you to reach the NVR even in the case of a Dynamic IP
	This NVR has email sending. In case of events (camera blurring, signal cutting, motion, broken disk, network problems etc...), it is able to send a report via email, a sound notification or upload videos & screenshots via FTP Also records and sends snapshots to external Cloud Storage (Dropbox, Skydrive)
	This product is covered by a 24 month warranty.

Data sheet

Model: DVR	NVR4104HS-4KS3
SYSTEM
Main Processor	Industrial-grade processor
Operating System	Embedded LINUX
Operating Interface	Web, Local GUI
TO THE
AI by Recorder	SMD Plus
AI by Camera	Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Perimeter Protection
Perimeter Performance of AI by Camera (Number of Channels)	4 channels
Face Detection
Face Attributes	Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Camera (Number of Channels)	4 channels
Face Recognition
Face Recognition Performance of AI by Camera (Number of Channels)	4 channels
SMD Plus
SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera	4 channels
Audio and Video
Access Channel	4 channels
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Resolution	12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF; QCIF
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 2-channel 8MP@30fps; 3-channel 5MP@30fps; 4-channel 4 MP@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps
Video Output	1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 ×720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display	Main Screen: 1/4 Sub Screen: 1/4
Third-party Camera Access	ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Compression Standard
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression	G.711a; G.711u; PCM; G726
Network
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access	iOS; Android
Interoperability	ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browsers	Chrome; IE; Safari; Edge; Firefox
Recording Playback
Multi-channel Playback	Up to 4 channels
Record Mode	General, motion detection; intelligent; alarm
Backup Method	USB device and network
Playback Mode	Instant playback, general playback, event playback, tag playback, smart playback
Alarm
General Alarm	Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Anomaly Alarm	Camera disconnection; storage errors; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
Intelligent Alarm	Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage	Record; snapshot; IPC external alarm output; audio; buzzers; log; presets; e-mail
Port
Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	NA (2 channels is optional)
Alarm Output	NA (1-channel 12V 1A output is optional)
Disk Interface	1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI	1
VGA	1
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply	12 VDC, 2 A
Power Consumption	Total output of NVR is <10W(without HDD)
Net Weight	0.81 kg (1.79 lb)
Gross Weight	1.38 kg (3.04 lb)
Product Dimensions	260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H)
Packaging Dimensions	334 mm × 89 mm × 314 mm (13.15" × 3.50" × 12.36") (W × D × H)
Operating Temperature	–10 °C to +55 °C (14 °F to +131 °F)
Storage Temperatures	–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity	10%–93% (RH), non-condensing
Installation	Rack or desktop
Certifications	CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
