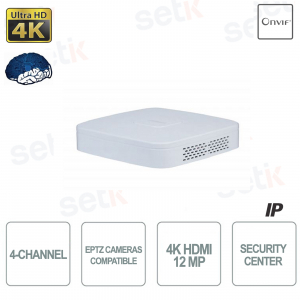

New Deep Learning Series | NVR4104-4KS3 Dahua IP NVR video recorder for surveillance 4 IP channels up to 12Megapixel 4K ULTRA-HD , Bandwidth 80/80/60Mbps , Video Compression up to Smart H.265+, VGA, HDMI (4K), 2 USB (2.0 ), ONVIF , new graphical interface , supports cameras with EPTZ , up to 1 HDD SATA 20 TB, 1 input + 1 Audio output. Ideal for retail stores, families, courtyards and public areas. NVR4104-4KS3

DISCOVER THE VERSION WITH THE HARD DISK INCLUDED NVR4104-4KS3(1T)

Reference: NVR4104-4KS3

Brand: Dahua

EAN: 2123456792843

FIND INSTALLER

https://www.setik.biz/en/recording-devices/9636-dahua-nvr4104-4ks3-4-channel-nvr-recorder-4k-hdmi-12mp-ip-for-dahua-surveillance-cameras.html

€148.91

€437.98 -66%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

DISCOVER THE VERSION WITH THE HARD DISK INCLUDED NVR4104-4KS3(1T)

Description Product Details Technical Data Sheet Further Details Download

DAHUA DEEP LEARNING SERIES | IP NVR 4 CHANNELS 4K 12MP ULTRA-HD H.265 1HDD ARTIFICIAL INTELLIGENCE SUPPORT

4 Channel IP NVR - New Deep Learning Series - Dahua - NVR4104-4KS3
4 IP 4K ULTRA-HD channels up to 12Megapixel - Bandwidth 80/80/60Mbps - Compression up to Smart H.265+
Support for IP cameras with artificial intelligence and SMD on board . Up to 1HDD 20TB installable - VGA - HDMI(4K) -
2 USB (2.0) - ONVIF® support - 1 RJ45 - Audio (1 input + 1 output) - Hard Disk NOT included - 24 month warranty

Tecnologia Intelligenza Artificiale

DEEP LEARNING | THE NEW DAHUA RECORDERS:
Dahua continues its evolution towards increasingly intelligent systems.
The Dahua NVR /L series of IP recorders are highly convenient network video recorders, which provide interesting functions such as local live viewing, multi-screen viewing, real-time storage on local HDD, remote management and control. Ideal for a wide range of applications such as home security, schools, shops, small offices.

As for the features, here are the most important:
- New simpler and more intuitive user interface
- Smart H.265+ / H.264+ Video Coding : greater efficiency in the video coding process and superior video quality. Reduction of storage and transmission costs.
- Support cameras with IVS (artificial intelligence) on board
- Security Center: for a complete overview of the device security and protection with security scans, certificate management and much more
- 4K resolution

Product details

	Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems.
	Smart H.265+ Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism.
	4 channels with resolution up to 4K ULTRA-HD 12 Megapixel! Recording Resolution: 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF; QCIF Bandwidth: 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding
	Supports IP cameras with ONVIF® and RTSP protocols
	Dahua has released the new graphical interface 4.0 for NVRs! GUI-NVR 4.0: New graphical user interface, even more simplified! Here are the biggest news: No plugins in the web browser that improves the compatibility of different web browsers • Supports multi-day search to make goal search easier • Hard drive format notification to avoid loss of important data • Better compatibility with TPC, AI fisheye, PTZ cameras, etc. • New firewall and network security protocol added to protect your system • Seagate * SHM (SkyHwak Health Management) actively protects your data
	Cloud function via APP for mobile devices. Compatible Android, iOS Remote surveillance, live viewing and video playback directly from your phone EVOPLUS / EASYVIEWER / DMSS
	This video recorder supports cameras with on-board IVS (Intelligence) - recognizes and records videos containing IVS data on all IP channels. - records standard intelligence functions - record premium IVS functions (detect abandoned or lost objects, tripwire violations and intrusion violations.) - Face detection, people counting and heat map from IP cameras SMD Plus: Support for cameras with SMD Plus on board. With the deep learning algorithm, Dahua SMD Plus filters the alarm received from the detection of an uninterested target and effectively recognizes humans and vehicles, sending alarms when the latter appear in the shooting area.
	Equipped with: 1 SATA port, up to 20 TB capacity. (Hard disk not included) ATTENTION: on NVR systems use specific audio/video discs. For more information, read our dedicated article .
	1x RJ-45 (10/100Mbps)
	This NVR features 2x USB 2.0 ports
	Resolution up to 4K via HDMI Port! New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism.
	This DVR features 1 audio input and 1 audio output
	Dynamic DNS: allows you to reach the NVR even in the case of a Dynamic IP
	SECURITY CENTER - DAHUA Security Center provides a complete picture of device security and helps protect your NVR with security scans, attack defense, certificate management, audio and video encryption, and security settings. Security alerts can be sent in various ways such as emails, messages and voice messages. Security Center is responsible for collecting, processing, analyzing, viewing and storing all data collected from cameras, sensors and other devices on the front end. An integrated security center for safe cities must ensure continuous seamless communication between various departments, unified incident response and advanced data analytics for smarter and more efficient policing.
	This product is covered by a 24 month warranty.

Data sheet

Model: NVR	NVR4104-4KS3
SYSTEM
Main Processor	Industrial-grade processor
Operating System	Embedded Linux
Operation Interface	Web, local GUI
TO THE
AI by Recorder	SMD Plus
AI by Camera	Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Perimeter Protection
Perimeter Performance of AI by Camera (Number of Channels)	4 Channels
Face Detection
Face Attributes	Gender; age group; glasses; expressions; face mask; beard
Face Detection Performance of AI by Camera (Number of Channels)	4 channels
Face Recognition
Face Recognition Performance of AI by Camera (Number of Channels)		4 channels
SMD plus
SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera	4 Channels
Audio & Video
Access Channel	4 Channels
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Resolution	12 MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF; QCIF
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 2-channel 8MP@30fps; 3-channel 5MP@30fps; 4-channel 4 MP@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps
Video Output	1 HDMI, 1 VGA Simultaneous： HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 ×720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display		Main Screen: 1/4 Sub Screen: 1/4
Third Party Camera Access	ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
Compression Standard
Video	Smart H.265/H.265/Smart H.264/H.264
Audio	PCM/G711A/G711U/G726
Network
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone Access	Android /iOS
Interoperability	ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
Browsers	Chrome; IE; Safari; Edge; Firefox
Record Playback
Multi-channel Playback	Up to 4 channels
Record Mode	General, motion detection; intelligent; alarm
Backup Method	USB device and network
Playback Mode	Instant playback, general playback, event playback, tag playback, smart playback
Alarm
General Alarm	Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
Anomaly Alarm	Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
Intelligent Alarm	Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms
Alarm Linkage	Record; snapshot; IPC external alarm output; audio; buzzers; log; presets; e-mail
Port
Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	NA (2 channels is optional)
Alarm Output	NA (1-channel 12V 1A output is optional)
HDD Interface	1 SATA port. up to 20TB. this limit varies depending on the environment temperature.
USB	2 (2 rear USB 2.0 ports)
HDMI	1 (supports up to 4K resolution output)
VGA	1
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
PoE Port	4 ports, 10/100 Mbps, IEEE 802.3 af/at
General
Power Supply	53 VDC, 1.22 A
Power Consumption	Total output of NVR is <10 W (without HDD) Total output power of PoE is 36 W, the maximum output power of a single port is 25.5W
Net Weight	0.50kg (1.10lb)
Gross weight	1.38 kg (3.04 lb)
Product Dimensions	204.6 mm × 206.4 mm × 45.6 mm(8.06" × 8.12" × 1.80") (W × D × H)
Package Dimensions	364 mm × 96 mm × 261 mm (14.33" × 3.78" × 10.26") (W × D × H)
Operating Temperature	–10 °C to +50 °C (+14 °F to +122 °F)
Storage Temperatures	–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity	10%–93% (RH), non-condensing
Installation	Rack or desktop
Certifications	CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
