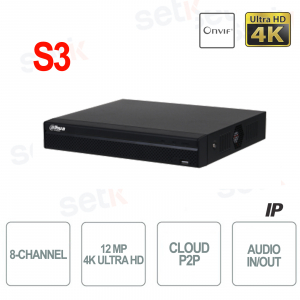

IP NVR video recorder for surveillance S3 version . 8 Channels up to 12 Megapixel 4K ULTRA-HD in preview and playback, Max 80Mbps bandwidth, Video Compression H.265+ / H.264, 1 HDMI (4K), 1 VGA, Max 1HDD SATA 20TB, 2 USB Ports, Audio, 1 RJ-45 10/100Mbps port. ONVIF compatible, Video Analysis support. Lite Series. NVR4108HS-4KS3
DISCOVER THE VERSION WITH THE HARD DISK INCLUDED NVR4108HS-4KS3(1T)
![](https://cdn.setik.biz/img/click.png)
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
![meno](https://cdn.setik.biz/storage/images/site/Dahua_Logo.png)
DISCOVER THE VERSION WITH THE HARD DISK INCLUDED NVR4108HS-4KS3(1T)
IP NVR 8 CHANNELS 4K ULTRA-HD UP TO 12 MEGAPIXELS - H.265 - VIDEO AUDIO ANALYSIS - LITE DAHUA SERIES - S3 VERSION
![Made by Dahua width= Made by Dahua](https://www.setik.biz/img/m/13-prod_large.jpg)
8 4K ULTRA-HD channels up to 12Megapixel - Max 80Mbps broadband - H.265+ / H.264
ONVIF® compatible - Video Analysis supported - Audio
Supports 1 HDD SATA 20 TB ( not included ) - 24 month warranty
4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN? | |
---|---|
|
Product details
![8 Channel IP NVR - NVR4108HS-4KS2/L NVR 8 Canali IP Dahua fino a 8megapixel 4k ultra hd](https://cdn.setik.biz/storage/images/Articoli/NVR4108HS-4KS2_SMALL.jpg)
|
This NVR supports video compression in H.264 and also in the new H.265 standard Optimized for Mobile |
![]() |
New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism. |
![]() |
8 channels up to 4K ULTRA-HD 8 Megapixe l in preview and playback ! Recording Resolution: 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF; QCIF Max 80Mbps of incoming broadband |
![]() |
Supports ONVIF® IP cameras Version 2.4 |
![]() |
Supports IP cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more (operation with the models proposed here must be verified on a case-by-case basis) |
![]() |
This video recorder supports some Video Analysis functions: ![]() |
![]() |
Cloud function with Easy4IP |
![]() |
This NVR supports cameras with on-board IVS (Video Analysis Functions) |
![]() |
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS(best CCTV software for Mobile) |
![]() |
Compatible with all mobile devices: Android, iPhone, ![]() |
![]() |
Equipped with: 1 SATA III Port, up to 20 TB capacity. (Hard disk not included) ATTENTION: on NVR systems use specific audio/video discs. For more information, read our dedicated article . |
![]() |
Motion function. Recording starts when the camera detects movement. |
![]() |
1x RJ-45 (10/100Mbps) |
![]() |
This NVR features 2x USB Ports |
![]() ![]() |
Resolution up to 4K via HDMI Port! New ULTRA HD 4K Technology! |
![]() |
This NVR Features 1x vga port |
![]() |
This DVR features 1 audio input and 1 audio output |
![]() |
Dynamic DNS: allows you to reach the NVR even in the case of a Dynamic IP |
![]() |
This NVR has email sending. Also records and sends snapshots to external Cloud Storage (Dropbox, Skydrive) |
![]() |
This product is covered by a 24 month warranty. |
Data sheet
Model: DVR | NVR4108HS-4KS3 | ||
SYSTEM | |||
Main Processor | Industrial-grade embedded processor | ||
Operating System | Embedded Linux | ||
Operation Interface | Web local GUI | ||
TO THE | |||
AI by Recorder | SMD Plus | ||
AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map | ||
Perimeter Protection | |||
Perimeter Performance of AI by Camera (Number of Channels) | 6 channels | ||
Face Detection | |||
Face Attributes | Gender; age group; glasses; expressions; face mask; beard | ||
Face Detection Performance of AI by Camera (Number of Channels) | 6 channels | ||
Face Recognition | |||
Face Recognition Performance of AI by Camera (Number of Channels) | 6 channels | ||
SMD Plus | |||
SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change | ||
SMD Plus by Camera | 6 channels | ||
Audio and Video | |||
Access Channel | 8 channels | ||
Network Bandwidth | 80 Mbps for access, 80 Mbps for storage and 60 Mbps outing | ||
Resolution | 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF; QCIF | ||
Decoding Capability | AI disabled: 1-channel 12 MP@30 fps; 2-channel 8MP@30fps; 3-channel 5MP@30fps; 4-channel 4MP@30fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps; 7-channel 1080p@30fps | ||
Video Output | 1 HDMI, 1 VGA Simultaneous: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous: HDMI: 1920 × 1080, 1280 × 1024, 1280 ×720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 | ||
Multi-screen Display | Main Screen: 1/4/8/9 Sub Screen: 1/4/8/9 | ||
Third Party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha | ||
Compression Standard | |||
Video Compression | Smart H.265+/H.265/Smart H.264+/H.264 | ||
Audio Compression |
G.711a; G.711u; PCM; G726 |
||
Network | |||
Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) | ||
Mobile Phone Access | iOS; Android | ||
AccessStandard | ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK | ||
Browsers | Chrome; IE; Safari; Edge; Firefox | ||
Record Playback | |||
Multi-channel Playback | Up to 8 channels playback | ||
Record Mode | General, motion detection; intelligent; alarm | ||
Backups | USB device and network | ||
Playback Function | Instant playback, general playback, event playback, tag playback, smart playback | ||
ALARM | |||
General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm | ||
Anomaly Alarm | Camera disconnection; storage errors; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception | ||
Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map | ||
Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzers; log; presets; e-mail | ||
PORT | |||
Audio Input | 1-channel RCA | ||
Audio Output | 1-channel RCA | ||
Alarm Input | NA (2 channels is optional) | ||
Alarm Output | NA (1-channel 12V 1A output is optional) | ||
Disk Interface | 1 SATA port. Each disk can contain up to 20 TB. This limit varies depending on the environment temperature. | ||
USB | 1 front USB 2.0 port, 1 rear USB 2.0 port | ||
HDMI | 1 | ||
VGA | 1 | ||
Network port | 1 RJ–45 port (10/100 Mbps) | ||
GENERAL PARAMETERS | |||
Power Supply | DC12V, 2A | ||
Power Consumption | Total output of NVR is ≤ 10W (without HDD) | ||
Net Weight | 0.81kg (1.79 lb) (without HDD) | ||
Gross weight | 1.38 kg (3.04 lb) (without HDD) | ||
Dimensions | 260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H) | ||
Packaging Dimensions | 334 mm × 89 mm × 314 mm (13.15" × 3.50" × 12.36") (W × D × H) | ||
Operating Temperature | -10°C to +55°C (+14°F to +131°F) | ||
Storage Temperatures | –20 °C to +60 °C (–4 °F to +140 °F) | ||
Operating Humidity | 10%–93% (RH), non-condensing | ||
Installation | Rack or desktop | ||
Certification | CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
Further details
![Dimensions - NVR4108HS-4KS2/L Schema dimensioni NVR4108HS-4KS2/L](https://cdn.setik.biz/storage/images/Articoli/NVR4108HS-4KS2_DIMENSIONI.jpg)
