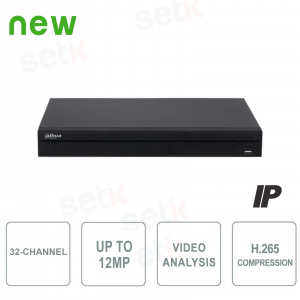

copy of IP NVR 32 Channels H.265 4K 8MP 160Mbps Video Analysis - Dahua

IN PROMOTION -57%

New Series of Dahua 4K Ultra HD Professional IP NVRs for Surveillance - 32 IP Channels with resolution up to 8MP , Supports H.265 Video Compression. HDMI / VGA Video Outputs, Onvif Support, Max 2 HDD SATA 3.5 " , 2 USB Ports, Cloud P2P Support Alarm & Audio Inputs / Outputs. Video Analysis, Face Recognition, People Counting . NVR4232-4KS2-L ~ NVR4232-4KS2/L

Reference: NVR4232-4KS3

Brand: Dahua

EAN: 6923172569370

FIND INSTALLER

https://www.setik.biz/en/recording-devices/9630-dahua-nvr4232-4ks3-copy-of-ip-nvr-32-channels-h265-4k-8mp-160mbps-video-analysis-dahua.html

€300.60

€699.06 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Data Sheet Further Details Download

NVR 32 CHANNELS IP DAHUA - 4K ULTRA HD SERIES - H.265 - UP TO 8 MEGAPIXELS - DAHUA
VERSION WITHOUT POE PORTS!

Nvr IP 32 Channels - New 4K Series - Dahua
Up to 8MP resolution - Video Compression H.265 / H.264 - 160mbps bandwidth -
Alarm & Audio Inputs / Outputs - Supports Video Analysis and Face Detection - SMD Plus
ONVIF® support - Hard Disks NOT included - 24 months warranty

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?
4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K correspond to the resolution of 4 Full-HD, so 3840 X 2160! Already used in the consumer electronics sector, it is finally arriving in the world of security. The new generation of DAHUA devices, in fact, allows the support of cameras up to 12MPX on H265 standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to display (on a 4K monitor) the image in its maximum detail.

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K correspond to the resolution of 4 Full-HD, so 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security. The new generation of DAHUA devices, in fact, allows the support of cameras up to 12MPX on H265 standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to display (on a 4K monitor) the image in its maximum detail.

Product details

VERSION WITHOUT POE PORTS!
NVR 32 Canali fino a 8MP - Serie 4K Ultra HD - Dahua

	This NVR supports video compression in H.264 and also in the new H.265 standard Optimized for Mobile
	New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism.
	Up to 32 IP channels Recording up to 8 Megapixels! 160Mbps inbound bandwidth
	Support ONVIF® IP cameras
	Supports IP cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec and others ... (operation with the models proposed here is to be verified from case to case)
	This VCR supports some functions of Video Analysis: - Heat map - Line crossing - Intrusion - People counting
	It also supports ADVANCED INTELLIGENT FUNCTIONS: - Face Detection Example image:
	This NVR supports cameras with IVS (Video Analysis Functions) on board
	Cloud function with Easy4IP
	Compatible with Mobile devices: iPhone, iPad, Android
	Supports 2x 3.5 "SATA Audio / Video AV-GP Hard Disk (Up to 10TB) - NOT INCLUDED It also works without a hard disk even remotely! ATTENTION: use specific audio / video discs on NVR systems. For more information, read our dedicated article.
	1x HDMI port with resolution up to 4K New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism.
	This product features 1x VGA port
	'' 4 IN and 2 OUT alarm for inputs from burglar alarms or other instruments and to activate external peripherals (gates, sirens, etc.)
	This DVR has 1 audio input and 1 audio output
	Dynamic DNS: allows you to reach the NVR even in the case of Dynamic IP
	Ability to overwrite the disk when full or have the disk overwrite after X days. NVR restart programming to ensure greater stability over time
	This NVR has email sending. In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email report, a sound notification or upload videos & screenshots via FTP
	Motion function. Recording starts when the camera detects motion.
	1x RJ-45 (10/100 / 1000Mbps)
	This product is covered by a 24 month warranty.

Data sheet

Model: DVR	NVR4232-4KS2 / L
SYSTEM
Main Processor	Industrial-grade embedded processor
Operating System	Embedded Linux
Operation Interface	Web / operating in local GUI
Perimeter Protection by Camera
Performance	8 channels
AI Search	Search for pictures by channel, time and event type
Face Detection by Camera
Performance	4 channels
Face Attributes	6 attributes: Gender, age, glasses, expression, mouth mask, and beard
AI Search	Search for pictures by channel, time and face attributes
SMD Plus by Camera
Performance	12 channels
AI Search	Search by target classification (human, vehicle)
Video
Access Channel	32
Network Bandwidth	Access: 160 Mbps; Storage: 128 Mbps; Forward: 48 Mbps
Resolution	8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability	8 × 1080p @ 30fps
Video Output	1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI
Multi-screen Display	1, 4, 8, 9, 16, 25, 32 views
Third-party Camera Access	ONVIF®; RTSP
Compression
Video	Smart H.265 / H.265 / Smart H.264 / H.264 / MJPEG
Audio	PCM / G711A / G711U / G726 / AAC
Network
Network Protocol	HTTP; HTTPS; TCP / IP; IPv4 / IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone Access	Android; iOS
Interoperability	ONVIF® (profile T / S / G); CGI; SDK
Browser	Chrome; IE9 or later; firefox
Record Playback
Multi-channel Playback	Up to 16 channels for playback
Record Mode	Manual record; alarm recording; SMD recording; smart recording
Storage	Local HDD; network
Backup	USB storage device
Playback Function	1. Play / pause / stop / slow / quick / backward / by frame 2. Full screen, backup (video clip / file), partial zoom in, and audio on / of
Disk Group	Yes
Alarm
General Alarm	Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
Anomaly Alarm	Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
Intelligent Alarm	Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms
Alarm Linkage	Recording, snapshot, local external alarm output, audio, buzzer, log, preset, and email
External Port
Audio Input	1 × RCA intput
Audio Output	1 × RCA output
HDD	2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
Alarm Input	4
Alarm Output	2
USB	2 (1 × front USB2.0; 1 × back USB2.0)
HDMI	1 (supports up to 4K resolution output)
VGA	1
Network	1 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
General Parameter
Power Supply	12 V DC, 4A
Power Consumption	<5.6 w="" hdd="" not="" included="" idling="" td="">
Net Weight	1.5 kg (3.31 lb)
Gross Weight	2.6 kg (5.73 lb)
Product Dimensions	375.0 mm × 282.9 mm x 53.0 mm (14.76 "× 11.14" × 2.09 ") (W × L × H)
Package Dimensions	433mm × 140mm × 363mm (17.05 "× 5.51" × 14.29 ") (W × L × H)
Operating Conditions	–10 ° C to +55 ° C (+10 ° F to +131 ° F)
Storage Conditions	0 ° C to +40 ° C (32 ° F to 104 ° F)
Operating Humidity	10℅ ~ 93℅
Storage Humidity	30% ~ 85%
Operating Altitude	3000 m (9842.52 ft)
Installation	Desktop / Rack mount
Certifications	CE: EN62368-1; EN55032, EN55024, EN55035, EN61000- 3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B
