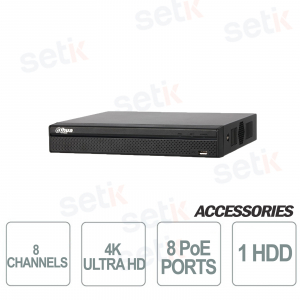

IP NVR 8 Channels 8 PoE+ ports H.265+ 4K ULTRA-HD up to 12 MP Dahua

IP NVR 8 Channels 8 PoE+ ports H.265+ 4K ULTRA-HD up to 12 MP Dahua
-57%

NVR2108HS-8P-4KS2 IP Dahua 4K , 8 IP channels up to 4K Ultra HD 12 Megapixel , Supports H.265+ Video Compression, Up to 144Mbps maximum bandwidth. HDMI/VGA Video Output, 1 Input + 1 Audio Output. ONVIF support 8 PoE+ ports , 1 SATA HDD 20 TB, 2 USB



Reference: NVR2108HS-8P-4KS3

Brand: Dahua

FIND INSTALLER

€230.30

€535.58 -57%
taxes included
Tax included
 Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


DAHUA 8 IP CHANNEL NVR - 4K ULTRA HD - H.265+ - UP TO 12 MEGAPIXELS - 8 PoE+ PORTS - CLOUD P2P - DAHUA

Prodotto marca Dahua
8 Channel IP Nvr - 4K ULTRA HD - Dahua
Up to 12MP resolution - 8 PoE+ ports - 144 Mbps recording - Video Compression Smart H.265+, Smart H.264+, H.265, H.264 y MJPEG
- 1 audio input and 1 audio output - Support 1 HDD SATA 20 TB - Hard Disk NOT included - 24 month warranty

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, therefore 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security too. The new generation of DAHUA equipment, in fact, allows support for cameras up to 12MPX on the H265 standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image in maximum detail.



Product details

NVR 8 Canali fino a 8MP - 4K Ultra HD - 8 Porte PoE - Dahua
PoE power supply

This NVR features 8 PoE ports 8 ports (IEEE802.3at/af)

Standard ONVIF® Onvif is the most important standard in the IP world.
Being Onvif guarantees a wide range of IP devices compatible with each other (DVRs/cameras).

This NVR is ONVIF® compatible

H265 Video Compressione
This NVR features both Standard Smart H.265+, Smart H.264+, H.265, H.264 and MJPEG
4K Risoluzione Ultra HD New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.
8 Canali IP

8 channels up to 4K ULTRA-HD 12 Megapixe l in preview and playback !

Recording Resolution: 12MP, 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1

Max 144Mbps incoming broadband
16Kbps ~ 20Mbps Per Channel

Questo DVR supporta telecamere per la videosorveglianza con standard ONVIF® Supports ONVIF® IP cameras Version 2.4
Questo DVR supporta telecamere per la videosorveglianza Supports IP cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec and others

(operation with the models proposed here must be verified on a case-by-case basis)
Full HD

Cloud function with Easy4IP

Questo NVR è compatibile con tutti i sistemi mobile: Android, Windows Mobile, Iphone, Blackberry, Symbian OS Compatible with devices: iPhone, iPad, Android
Compatibilità Mobile
Hard Disk Supports 1x 20TB AV-GP SATA Audio/Video Hard Disk

ATTENTION: on NVR systems use specific audio/video discs.
For more information, read our dedicated article .
Ingressi USB This NVR has 2 USB Ports (1 USB2.0, 1 USB2.0)
HDMI This product features 1x HDMI port + 1x VGA port
Ingressi ed uscite audio

1 Input + 1 Bidirectional Audio Output

Funzione Dynamic DNS Dynamic DNS: allows you to reach the NVR even in the case of a Dynamic IP
Funzione Sovrascrittura Ability to overwrite the disk when it is full or have the disk overwrite after X days. NVR restart programming to ensure greater stability over time
Funzione invio email in caso di notifica This NVR has email sending.
In case of events (camera blurring, signal cutting, motion, broken disk, network problems etc...), it is able to send a report via email, a sound notification or upload videos & screenshots via FTP
Funzione Motion Motion function. Recording starts when the camera detects movement.
Porta Ethernet RJ-45 ( 10 / 100 / 1000 Mbps) 1x RJ-45 (10/100/1000Mbps)
software

Specific software on CD for managing multiple NVRs simultaneously.

Questo NVR è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Data sheet

Model: DVR NVR2108HS-4KS3
SYSTEM
Main Processor Industrial-grade processor
Operating System Embedded LINUX
Operating Interface Web, Local GUI
TO THE
AI by Recorder SMD Plus
AI by Camera Perimeter protection; SMD Plus
Perimeter Protection
Perimeter Performance of AI by Camera (Number of Channels) 4 channels
SMD Plus
SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera 4 channels
Audio and Video
Access Channel 8 Channel
Network Bandwidth AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing
Resolution 12 MP; 8MP; 5MP; 4MP; 3MP; 1080p; 720p; Q1
Decoding Capability AI disabled: 1-channel 12 MP@30 fps; 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 5MP@30fps; 2-channel 4MP@30fps; 4-channel 1080p@30fps
Video Output 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display 1/4/8/9
Third-party Camera Access ONVIF
Compression Standard
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression G.711a; G.711u; PCM; G726;
Network
Network Protocol 1 HDMI, 1 VGA
Resolution HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
Decoding Capacity 1ch@8MP 30fps, 4ch@1080P 30fps
Multi-screen Display 1/4/8/9
OSD Camera title, Time, Camera lock, Motion detection, Recording
Recording
Compression H.265/H.264
Resolution 8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc.
Record Rate 80Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule(Regular(Continuous), MD, Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), and Tampering
Alarm input N/A
Relay Output N/A
Playback and Backup
Sync Playback 1/4
Search Mode Time /Date, MD and Exact Search(accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network
Alarm
General Alarm Motion detection; camera external alarm; PIR alarm
Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline)
Intelligent Alarm Perimeter protection; SMD Plus
Alarm Linkage Recordings; snapshot; buzzers; log; presets; e-mail; tours
Port
Audio Input 1-channel RCA
Audio Output 1-channel RCA
Alarm Input NA (2 channels are optional)
Alarm Output NA (1-channel 12V 1A output is optional)
HDD Interface 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.
USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
PoE Port 8 ports, 10/100 Mbps, IEEE 802.3 af/at
General
Power Supply 53 VDC, 1.81 A
Power Consumption Total output of NVR is <10 w="" without="" hdd="" total="" output="" power="" of="" poe="" is="" 72="" the="" maximum="" a="" single="" port="" 25="" 5="" td="">
Net Weight 0.89 kg (1.96 lb)
Gross Weight 2.05 kg (4.52 lb)
Product Dimensions 260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H)
Packaging Dimensions 374.0 mm × 119.0 mm × 311.0 mm(14.72" × 4.69" × 12.24" )(W × D × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperatures –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH), non-condensing
Installation Rack or desktop
Certifications CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017 +A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
