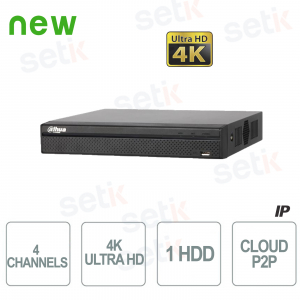

4 Channel IP NVR H.265.+ 4K Ultra HD up to 16MP Dahua

-57%

NVR2104HS-4KS3 4 Channel IP Nvr - 4K ULTRA HD - Dahua Up to 12MP resolution - 8 0Mbps recording - Video Compression Smart H.265+, H.264+, H.265, H.264 y MJPEG - 1 audio input and 1 output - Support 1 HDD SATA 20 TB - Hard Disk NOT included - 24 month warranty

Reference: NVR2104HS-4KS3

Brand: Dahua

EAN: 6923172575531

FIND INSTALLER

https://www.setik.biz/en/recording-devices/9599-dahua-nvr2104hs-4ks3-4-channel-ip-nvr-h265-4k-ultra-hd-up-to-16mp-dahua.html

€114.36

€265.96 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Hurry up! Only a few pieces left in our warehouse!

discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Technical Data Sheet Further Details Download

4 CHANNEL IP NVR DAHUA - 4K ULTRA HD - H.265+ - UP TO 12 MEGAPIXELS - CLOUD P2P - DAHUA

4 Channel IP Nvr - 4K ULTRA HD - Dahua
Up to 12MP resolution - 200Mbps recording - Video Compression H.265+, H.265 , H.264, MJPEG
- 1 audio input and 1 audio output - Support 1 HDD SATA 3.5" - Hard Disk NOT included - 24 month warranty

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?
4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, therefore 3840 X 2160! Already used in the consumer electronics sector, it is finally arriving in the world of security too. The new generation of DAHUA equipment, in fact, allows support for cameras up to 12MPX on the H265 standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image in maximum detail.

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, therefore 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security too. The new generation of DAHUA equipment, in fact, allows support for cameras up to 12MPX on the H265 standard, the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image in maximum detail.

Product details

	This NVR includes both Standard H.264 and Standard H265 for video compression!
	New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! More detail available, greater sense of depth and realism.
	Up to 4 IP channels with up to 12Megapixel resolution! Resolution\frame ratio and variable bit rate (16Kbps~20Mbps) for single channel Maximum bandwidth 200Mbps (REC 200Mbps, Tx 128Mbps)
	Supports ONVIF® IP cameras Version 2.4
	Supports IP cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec and others (operation with the models proposed here must be verified on a case-by-case basis)
	This NVR supports cameras with on-board IVS (Video Analysis Functions)
	Cloud function with Easy4IP
	Compatible with devices: iPhone, iPad, Android
	Supports 1x 20TB SATA Audio / Video AV-GP Hard Disk (up to 6TB each) ATTENTION: on NVR systems use specific audio/video discs. For more information, read our dedicated article .
	This NVR has 2 USB Ports (1 USB2.0, 1 USB2.0)
	This product features 1x HDMI port.
	1 Input + 1 Bidirectional Audio Output
	Dynamic DNS: allows you to reach the NVR even in the case of a Dynamic IP
	Ability to overwrite the disk when it is full or have the disk overwrite after X days. NVR restart programming to ensure greater stability over time
	This NVR has email sending. In case of events (camera blurring, signal cutting, motion, broken disk, network problems etc...), it is able to send a report via email, a sound notification or upload videos & screenshots via FTP
	Motion function. Recording starts when the camera detects movement.
	1x RJ-45 (10/100/1000Mbps)
	Specific software on CD for managing multiple NVRs simultaneously.
	This product is covered by a 24 month warranty.

Data sheet

Model: DVR	NVR2104HS-4KS3
SYSTEM
Main Processor	Industrial-grade processor
Operating System	Embedded Linux
Operating Interface	Web, Local GUI
TO THE
AI by Recorder	SMD Plus
AI by Camera	Perimeter protection; SMD Plus
SMD Plus
SMD Plus by Recorder	4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera	4 channels
Audio and Video
Access Channel	4 Channel
Network Bandwidth	80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Resolution	12 MP; 8MP; 5MP; 4MP; 3MP; 1080p; 720p; Q1
Decoding Capability	AI disabled: 1-channel 12 MP@30 fps; 1-channel 8MP@30fps; 2-channel 5MP@30fps; 3-channel 4MP@30fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 5MP@30fps; 2-channel 4MP@30fps; 4-channel 1080p@30fps
Video Output	1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display	1/4
Third-party Camera Access	ONVIF
Perimeter Protection
Perimeter Performance of AI by Camera (Number of Channels)	4 channels
Compression Standard
Video Compression	Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression	G.711a; G.711u; PCM; G726;
Recording Playback
Multi-channel Playback	Up to 4 channels
Record Mode	General, motion detection; intelligent; alarm
Backup Method	USB device and network
Playback Mode	Instant playback; general playback; event playback; tag playback; smart playback
Alarm
General Alarm	Motion detection; camera external alarm; PIR alarm
Anomaly Alarm	Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
Intelligent Alarm	Perimeter protection; SMD Plus
Alarm Linkage	Recordings; snapshot; buzzers; log; presets; e-mail; tours
Port
Audio Input	1-channel RCA
Audio Output	1-channel RCA
Alarm Input	NA (2 channels are optional)
Alarm Output	NA (1-channel 12V 1A output is optional)
HDD Interface	1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature.
USB	2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI	1
VGA	1
Network Port	1 (10/100 Mbps Ethernet port, RJ-45)
Network
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
Mobile Phone Access	iOS; Android
Browsers	Chrome; IE; Safari; Edge; Firefox
Interoperability	ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
General
Power Supply	Single,DC12V/2A
Power Consumption	<10w without="" hdd="" td="">
Operating Conditions	-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions	-20°C ~ +70°C (-4°F ~ +140°F), 0 ~ 90% RH
Product dimension	260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H)
Packaging Dimensions	334.0 mm × 89.0 mm × 314.0 mm(13.15" × 3.50" × 12.36")(W × D × H)
Net Weight	0.85 kg (1.87 lb)
Gross Weight	1.39 kg (3.06 lb)
Operating Humidity	10%–93% (RH), non-condensing
Installation	Rack or desktop
Certifications	CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017 +A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
