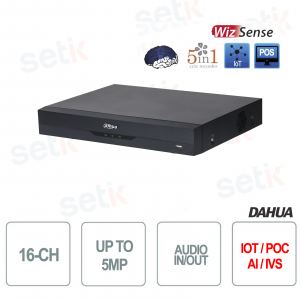

5in1 XVR Recorder 16 channels CVI/AHD/TVI/CVBS/IP 5MP IoT POS IVS AI DVR Audio Dahua Wizsense

Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on people and vehicles with high precision, allowing users to act quickly on defined targets. Based on Dahua's advanced technologies, WizSense offers intelligent, simple and complete products and solutions.

The XVR series, the XVR5000-I3 series , equipped with up to full SMD Plus channels to benefit customers from AI upgrade (the number of channels varies depending on the model). For information on the number of channels, see the specifications below.) This series was developed to reduce the false alarm rate and cost of human surveillance, thus offering great value to customers looking for accurate human/vehicle alarm products to increase the security level of various indoor and outdoor facilities.

5 Technologies in 1!
This DVR supports 5 different technologies ( HDCVI/AHD/TVI/CVBS/IP )

Onvif is the most important standard in the IP world.
Being Onvif guarantees a wide range of IP devices compatible with each other (DVRs/cameras).

This XVR supports ONVIF® version 22.12

AI Coding: What is it?

Compared to H.265, the AI codec can reduce up to 50% in bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle details.

16 Channels with resolution up to 5Megapixel 5MP!

Coding Capability:
Main stream:
1. 5MP Mode: 4-ch 5MP@(1-6fps); other channels 5M-N@ (1-12fps)
2. 5M-N Mode: All channels 5M-N@(1–12fps);4M-N,1080p@(1–15fps); 1080N, 720p, 960H, D1,CIF@(1–25/30fps)

Secondary flow:
D1, CIF@(1–15fps)

Supported technologies and resolutions:
HDCVI camera: 5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps.
AHD cameras: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps
TVI cameras: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps

Hybrid Mode:
8 default IP channels + 16 channels (analog channels are automatically converted to IP)

Bandwidth up to 128Mbps

AI | Artificial intelligence
This surveillance recorder supports Artificial Intelligence functions!

Face recognition: Dahua's face recognition technology extracts the characteristics of captured faces and compares them with those in the face database. and compares them with those in the face database to recognize the person's identity. identity of the person.

*Face recognition is active when Face is selected in AI mode.

SMD Plus: Thanks to the intelligent algorithm, Dahua Smart Motion Detection technology can classify the targets that trigger motion detection and filter the motion detection alarm triggered by non-worrying targets to realize an effective and accurate alarm . effective and precise alarm.

*SMD Plus is active when selecting SMD or IVS&SMD in AI mode.

Perimeter protection: Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc. Allows the system to perform secondary target recognition. Improves alarm accuracy.

*Perimeter protection is active when selecting IVS&SMD in AI mode.

AI coding: Compared with H.265/H.264, AI coding can reduce transmission speed and storage requirements by more than 50% without losing decoding compatibility, providing clear details of people and vehicles.

Smart Dual Illuminators: Thanks to Smart Dual Illuminators technology, you can select the smart lighting mode to automatically switch the system from IR to white light mode. This allows the white light to be turned on when a target is detected by the AI-enabled XVR's SMD Plus/Perimeter Protection feature. This significantly reduces night-time light pollution. Together with other modes, including IR mode and white light mode, the intelligent dual lighting technology can meet the requirements of a wide variety of scenes. a wide variety of scenes

One-click shutdown/disarm : With just one click, you can turn alarm links on or off to show messages, send emails, sound alarms and more, through the app and mobile platform

Customizable Audio Alarm : Designed for your convenience, the TiOC alarm can be customized to meet your needs. It is flexible and allows you to directly upload custom audio through the mobile app and XVR system.

Audio over coaxial : The integrated design can reduce wiring troubles, making installation much more convenient and convenient.

Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung
(operation with the models proposed here must be verified on a case-by-case basis)

Possibility of connecting POS devices, obtaining all the information superimposed on the channel.

Supports 1x SATA Audio / Video 3.5" Hard Disk up to 16TB!

ATTENTION: on DVR systems use specific audio/video discs.
For more information, read our dedicated article .

HARD DRIVE NOT INCLUDED!

VGA output with resolution up to 1080P

This DVR features 1 Audio input and 1 RCA Audio output

16 channels BNC (coaxial audio)

This XVR features 2x USB Ports (1x USB 2.0, 1x USB 3.0)

This DVR has 1 RJ45 Ethernet LAN port (10/100/1000 Mbps)

RS 485 for PTZ Commands (Remotely Controlled Cameras)

Dynamic DNS: allows you to reach the DVR even in case of Dynamic IP

This DVR has email sending.
In case of events (camera blurring, signal cutting, motion, broken disk, network problems etc...), it is able to send a report via email

Motion function. Recording starts when the camera detects movement.

This product is covered by a 24 month warranty.
