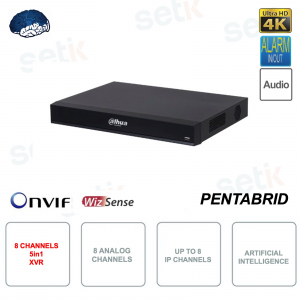

WizSense XVR7208A-4K-I3 Dahua XVR 8 Channels - IP ONVIF - Hdcvi 4K TVI Analog 5in1 with resolution up to 4K ULTRA-HD UHD 8Megapixel and video compression up to H.265+ - 8 IP channels and 8 analog channels - 1 HDMI ( up to 4k), 1 VGA, 2 USB, RS485, support for 2HDD SATA 3.5" Audio/Video (max 16TB each, NOT INCLUDED), Audio, Alarm . With Artificial Intelligence, IoT Technology and POS.
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
Description Product Details Data Sheet Further Details Download
XVR DAHUA 8 CHANNELS HDCVI 4K HDTVI AHD ANALOG IP UP TO 8MEGAPIXELS - ARTIFICIAL INTELLIGENCE - AUDIO - ALARM 2HDD 16TB - WIZSENSE DAHUA - XVR7208A-4K-I3
Surveillance recorder 8 IP ONVIF channels - Dahua - XVR7208A-4K-I3
5 technologies in 1: "Hdcvi/Hdtvi/Ahd/Analog/Ip" - 4K ULTRA-HD up to 8Megapixel!
Video Compression up to H.265+ / HDMI (4K OUT) - VGA (1080P OUT) - 2xUSB - RS-485 - 2HDD up to 16TB each. (sold separately) - Audio: Inputs 4 RCA channels and 8 BNC channels - Output 1 RCA channel - Alarm 8 inputs and 3 outputs -
Artificial Intelligence [Perimeter Protection, Face Detection and Recognition, SMD Plus, AI Coding], IoT and POS.
|
WIZSENSE TECHNOLOGY: |
Product details
|
|
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on people and vehicles with high accuracy, enabling users to take quick action on defined targets. Based on Dahua's advanced technologies, WizSense provides smart and simple products. New XVR series XVR5000-4KL-I2, equipped with SMD Plus on all channels to benefit customers from AI upgrade. The series is designed to reduce false alarm rates and human vigilance costs, thereby bringing great value to customers looking for accurate human/vehicle alarm products to enhance the security level of various indoor and outdoor facilities. AI search: Supports search by people and vehicle metadata. It supports uploading face images to the NVR and comparing them with similar ones already recorded by the NVR. It allows operators to quickly and easily search across various channels and efficiently discover when and where a subject is present. |
 |
5 Technologies in 1! This DVR supports 5 different technologies ( HDCVI-HDTVI-AHD-ANALOG-IP ) |
 |
Onvif is by far the most important Standard in the IP world. Being Onvif guarantees a wide range of compatible IP devices (DVRs/cameras). This XVR supports ONVIF® version 21.12 |
 |
AI Coding: What is it about?
|
  |
8 Channels with resolution up to 8Megapixel 4K UHD ULTRA-HD! Supported technologies and resolutions: 1.CVI: 4K@25/30fps; 6MP@20fps; 5MP@25fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps. 2.TVI: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. 3.AHD: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. IPs: 8 channels (expandable up to 16).
|
 |
New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! Greater detail available, greater sense of depth and realism. |
|
|
AI | Artificial intelligence
Face Detection and Recognition: Real-time face recognition and capturing and saving faces in the database Perimeter Protection SMD Plus |
 |
Supports cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and more... (operation with the models proposed here is to be checked on a case-by-case basis) |
 |
Possibility of connecting POS devices, obtaining all the information superimposed on the channel. Pos search option by date or transaction
|
 |
Supports 2x 3.5" Audio / Video SATA Hard Drives up to 16TB each!
HARD DISK NOT INCLUDED! |
 |
HDMI port with resolution up to 4K
New ULTRA HD 4K Technology! |
 |
VGA output with resolution up to 1080P |
 |
This XVR features Cloud p2p function via: EASYVIEWER and DMSS
|
 |
This DVR features: 4 RCA inputs 8 BNC inputs 1 BNC output Two-way audio supported |
 |
This DVR has 8 inputs + 3 alarm outputs |
 |
This XVR features 2x USB Ports ((1 USB 2.0, 1 USB 3.0) |
 |
This DVR features 1 RJ45 LAN Ethernet port (1000M) |
 |
RS 485 for PTZ commands (remotely controllable cameras) |
 |
Dynamic DNS: allows you to reach the DVR even in case of Dynamic IP |
 |
Ability to have the disk overwrite when full or have the disk overwrite after X days. DVR restart programming to ensure greater stability over time |
 |
This DVR has email sending. |
 |
Motion function. Recording starts when the camera detects movement. |
 |
This product is covered by a 24 month guarantee. |
Data sheet
| XVR7208A-4K-I3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Industrial-grade processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Interface |
Web; Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
perimeter protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Perimeter Performance AI by Recorder (Number of Channels) |
Advanced Model: 2 channels, 10 IVS for each channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Detection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Attributes |
gender; age group; glasses; expressions; face masks; beard |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Detection Performance of AI by Recorder (Number of Channels) |
2 channels (up to 12 face images/s each channel) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Database Capacity |
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition Performance of AI by Recorder (Number of Channels) |
2 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD Plus |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD Plus by Recorder |
8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Analog camera input |
8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera Input |
1.CVI: 4K@25/30fps; 6MP@20fps; 5MP@25fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps. 2.TVI: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. 3.AHD: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IP Camera Input |
Up to 16 channels of IPC access 8 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encoding Capacity |
Mainstream: 4K@(1fps–15fps); 6MP@(1fps–20fps); 5MP, 4K-N,4MP,3MP, 1080p, 720p, 960H, D1, CIF@(1fps–25/30fps) Sub stream: 960H@(1fps–15fps);D1,CIF@(1fps–25/30fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dual-stream |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Bit Rate |
32kbps–8192kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Sampling |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Gross Weight |
3.10kg (6.84lbs) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Product Dimensions |
375.0 mm × 287.0 mm × 53.0 mm (14.76'' × 11.30'' × 2.09'') (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
433.0 mm × 141.0 mm × 366.0 mm (17.05'' × 5.56'' × 14.41'') (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10°C to +55°C (14°F to +131°F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Racks or desktops |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE: CE-LVD: EN 60950-1/IEC 60950-1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
