XVR WIZSENSE - 5IN1 - 4 IP CHANNELS AND 4 ANALOG CHANNELS - HDMI (4K OUT) - VGA (1080p OUT) - AUDIO - ALARM - UP TO 8MP - VIDEO ANALYSIS - POS - IOT - DAHUA - XVR7104HE-4K-I3
5in1 (HDCVI+AHD+TVI+ANALOG+IP) - Resolution up to 8Megapixel 4K ULTRA-HD - 4 IP channels and 4 analog channels -
Codec H.265+ / HDMI (4K Out) - VGA (1080p out) - 2xUSB (1x2.0 + 1x3.0) - RS485 - 1 SATA port for HDD up to 16TB!
POS Connection - ONVIF® Compatible - 24 Months Manufacturer Warranty - Rack / Desktop Installation.
Product details
 |
DAHUA X-SERIES If you want to know more about this new series of Dahua 5 in 1 XVR recorders , read the article we wrote! |
|
|
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on people and vehicles with high precision, allowing users to act quickly on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent and simple products. New XVR series equipped with SMD Plus on all channels to benefit customers from AI upgrade. The series is designed to reduce false alarm rates and human surveillance costs, thus bringing great value to customers looking for accurate human/vehicle alarm products to increase the security level of various indoor and outdoor facilities. AI search: Supports metadata search of people and vehicles. Supports uploading face images to NVR and comparing them with similar ones already recorded by NVR. Enables operators to quickly and easily search across channels and efficiently find out when and where a subject is present. |
 |
All Onvif , the absolute standard for IP devices, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a device that is an end in itself that can never be used together with recording systems This device supports Onvif version 21.12. |
 |
5 Technologies in 1! This XVR supports 5 different technologies ( HDCVI+AHD+TVI+ANALOG+IP ) |
|
Onvif is the most important standard in the IP world. Being Onvif guarantees a wide range of IP devices compatible with each other (xvr/cameras). This XVR supports ONVIF® version 21 |
 |

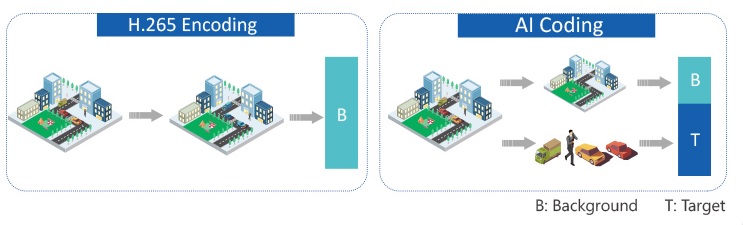

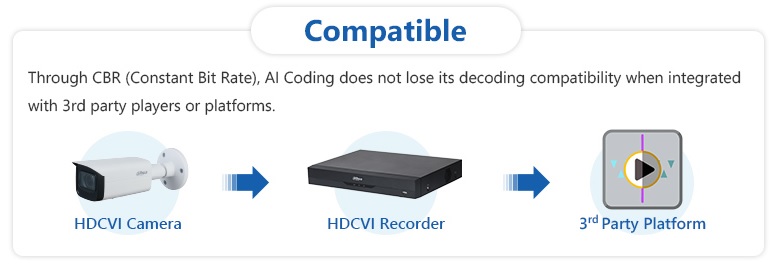

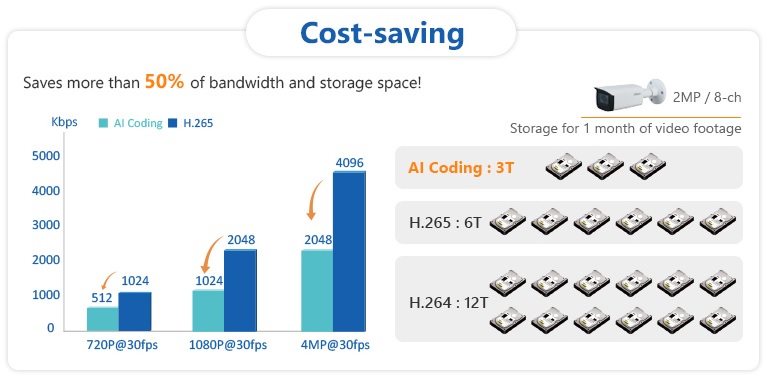

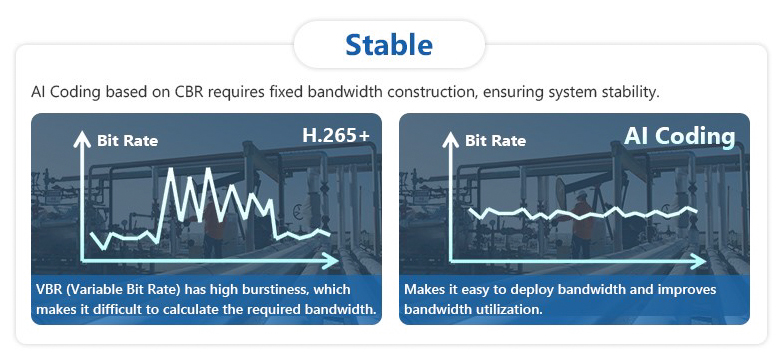

AI Coding: What is it?
|
|
|
4 analog channels + Recording resolution: 1. CVI: 4K@25/30fps; 6MP@20fps; 5MP@25fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30 fps; 720p@50/60fps. 2. TVI: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. 3. AHD: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. Encoding Resolution: Main stream: 4K@(1fps–15fps); 6MP@(1fps–20fps); 5 MP, 4K-N,4 MP,3 MP, 1080p, 720p, 960H, D1, CIF@ (1fps–25/30fps) |
 |
New ULTRA HD 4K Technology! Resolution even higher than FULL-HD! More detail available, greater sense of depth and realism. |
 |
Possibility to connect POS devices, obtaining all the information overlaid on the channel. Possibility to search POS by date or transaction
|
 |
Internet Of Things (IoT): Possibility to connect external wireless sensors, such as panic buttons, via USB gateway or cameras with gateway
IoT Manager: - Real-time view: Monitor and preview all IoT information in real time - IoT Information Search: Detailed IoT information and videos corresponding to an access point search - Sensor Manager: Includes sensor pairing, status and configurations of IoT devices
|
|
|
This video recorder supports Video Analytics (IVS) on all channels, Face Detection and Smart Search VIDEO ANALYSIS (IVS) Perimeter Protection |
 |
Supports cameras from various brands: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and more (the functioning with the models proposed here must be verified on a case by case basis) |
 |
Supports 1x SATA Audio / Video Hard Disk up to 16TB!
|
 |
This XVR is equipped with 2 USB Ports (1 USB 2.0, 1 USB 3.0) |
 |
HDMI port with resolution up to 4K
New ULTRA HD 4K Technology! |
 |
VGA output with resolution up to 1920x1080 |
 |
This XVR features 1 Audio IN and 1 Audio OUT RCA 4 audio in BNC |
 |
8 alarm inputs and 3 alarm outputs. |
 |
1 RJ-45 Port (10/100/1000 Mb) |
 |
1 RS 485 Port for PTZ Controls (Remotely controllable cameras) |
 |
Dynamic DNS: allows you to reach the device even in the case of a Dynamic IP |
 |
This video recorder has email sending. In case of events (camera blur, signal cut, motion, broken disk, network problems etc...), it is able to send a notification via email, an audible notification or upload videos & screenshots via FTP |
 |
Motion Function. Recording starts when the camera detects motion. |
 |
This product is covered by a 24 month manufacturer's warranty. |
Technical data sheet
| XVR7104HE-4K-I3 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main Processor |
Industrial grade processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Interface |
Web; Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Perimeter Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Perimeter Performance AI by Recorder (Number of Channels) |
Advanced Model: 2 channels, 10 IVS for each channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Detection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Attributes |
Gender; age group; glasses; expressions; face mask; beard |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Detection Performance of AI by Recorder (Number of Channels) |
2 channels (up to 12 face images/s each channel) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Database Capacity |
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Face Recognition Performance of AI by Recorder (Number of Channels) |
2 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD Plus |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
SMD Plus by Recorder |
4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Analog Camera Input |
4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Camera Input |
1. CVI: 4K@25/30fps; 6MP@20fps; 5MP@25fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps; 720p@50/60fps. 2. TVI: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30 fps. 3. AHD: 4K@15fps; 5MP@20fps; 4MP@25/30fps; 3MP@25/30fps; 1080p@25/30fps; 720p@25/30fps. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
IP Camera Input |
Up to 8 channels of IPC access 4 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Encoding Capability |
Main stream: 4K@(1fps–15fps); 6MP@(1fps–20fps); 5 MP, 4K-N,4 MP,3 MP, 1080p, 720p, 960H, D1, CIF@(1fps–25/30fps) Sub stream: 960H@(1fps–15fps);D1,CIF@(1fps–25/30fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dual stream |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Video Bitrate |
32kbps–8192kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Audio Sampling |
8kHz, 16bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

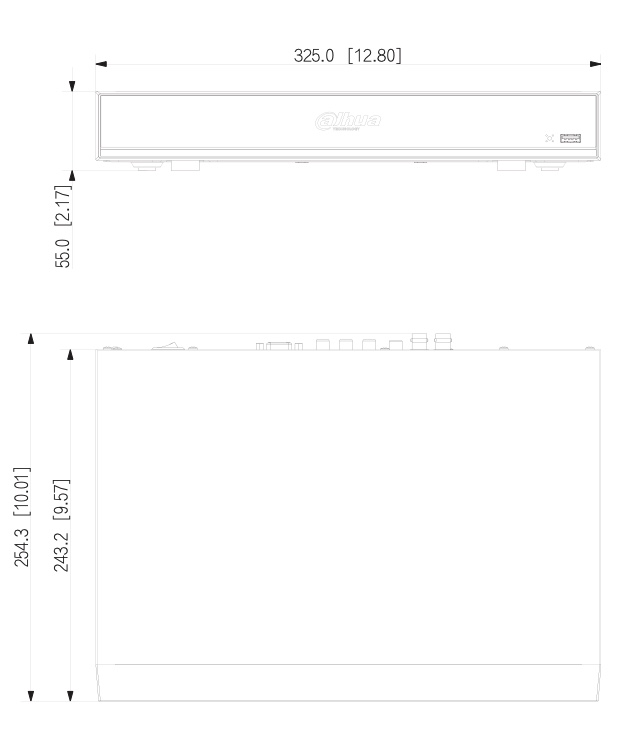

325.0 mm × 254.3 mm × 55.0 mm (12.80'' × 10.01'' × 2.17'') (W × D × H) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Packaging Dimensions |
372.0 mm × 117.0 mm × 308.0 mm (14.65'' × 4.61'' × 12.13'') (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Temperature |
–10 °C to +55 °C (14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Operating Humidity |
10%–90% (RH) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Installation |
Rack or desktop |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Certifications |
CE: CE-LVD: EN 60950-1/IEC 60950-1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
