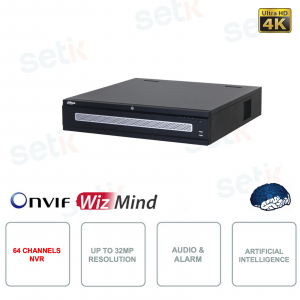

NVR IP ONVIF 64 channels - Up to 32MP - Artificial intelligence - Audio - Alarm

-57%

Dahua - NVR608H-64-XI - 64-channel ONVIF IP NVR - Resolution up to 32MP - Codec H.265+ - Artificial Intelligence and Video Analysis - RCA audio - Alarm - SATA for 8HDD up to 16TB (not included) - Mode support RAID - eSATA - HDMI interface - VGA - RJ45 25000Mbps - RS232 - RS485 - Synchronous playback up to 16 channels - Multi-Brand support - For desktop or rack mounting.

Reference: NVR608H-64-XI

Brand: Dahua

EAN: 6923172537706

FIND INSTALLER

https://www.setik.biz/en/recording-devices/9115-dahua-nvr608h-64-xi-nvr-ip-onvif-64-channels-up-to-32mp-artificial-intelligence-audio-alarm-.html

€2,301.42

€5,352.14 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Data Sheet Further Details Download

NVR 64 CHANNELS - IP ONVIF DAHUA - 1080p RESOLUTION - H.265+ - VIDEO ANALYSIS - ARTIFICIAL INTELLIGENCE - 8HDD 16TB MODE - DAHUA - NVR608H-64-XI
VERSION WITHOUT POE PORTS!

Nvr IP ONVIF 64 Channels - Dahua - NVR608H-64-XI
Up to 32MP - Up to 1024Mbps input / 1024Mbps recording / 800Mbps output - Video Compression up to H.265+
Audio 1in/2out and Alarm 16in/8out - Supports 8x HDD SATA 16TB - Supports RAID mode - 4x HDMI - 2x VGA - RS232 - RS485 - 4xUSB ports (2x2.0 + 2x3.0) - Hard Disk NOT included - 24 Months warranty - Power supply 100–240 VAC, 50/60 Hz - For desktop or rack mounting.

Artificial Intelligence : Perimeter Protection, Face Detection, SMD Plus, Metadata, ANPR.

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

Product details

VERSION WITHOUT POE PORTS!
NVR 64 Canali fino a 12Mpx - Serie 4K Ultra HD - MODALITA' RAID - Dahua

	Onvif is by far the most important Standard in the IP world. Being Onvif guarantees a wide range of compatible IP devices (DVRs/cameras). This NVR is ONVIF® compatible
	Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
	64 Channels. Maximum resolution 32MP (2 active channels) Synchronized playback up to 16 channels BAND: 1024Mbps input 1024Mbps recording 800Mbps outgoing
	New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! Greater detail available, greater sense of depth and realism. The HDMI 3 port has a maximum resolution of 8K 32MP!
	Support IP cameras: Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet (operation with the models proposed here is to be checked on a case-by-case basis)
	This video recorder supports some functions of ARTIFICIAL INTELLIGENCE perimeter protection, face detection, SMD Plus, Video Metadata, ANPR.
	Multiple Network Monitoring: Web viewer, CMS(DSS/PSS) & DMSS(Best Mobile CCTV Software)
	Supports 8x 3.5" AV-GP SATA Audio / Video Hard Disks ( Max 16TB each) ATTENTION: use specific audio/video discs on NVR systems. For more information, read our dedicated article . HARD DRIVES NOT INCLUDED!
	This NVR features 4x USB Ports (2 Rear USB3.0, 2 Front USB2.0)
	RAID function: The RAID mode allows the contents of a disk to be replicated on a second disk, thus ensuring data reliability in the event of disk failure and service continuity.
	Equipped with 4 HDMI ports.
	This product features 2x VGA ports with 1080P resolution!
	With alarm relay 16 inputs + 8 outputs for burglar alarms or other instruments and for activating external peripherals (gates, sirens, etc.)
	This DVR features 1 bi-directional RCA audio input and 2 outputs
	Dynamic DNS: allows you to reach the NVR even in case of dynamic IP
	Ability to have the disk overwrite when full or have the disk overwrite after X days. NVR restart programming to ensure greater stability over time
	This NVR has email sending. In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email notification, a sound notification or upload video & screeshot via FTP
	Motion function. Recording starts when the camera detects movement.
	2x RJ-45 (10/100/1000/2500Mbps)
	RS 232 to communicate with PC and keyboard
	1 RS 485 port for PTZ commands (remotely controllable cameras)
	SMART FANS The SMART FAN is an intelligent fan that can turn on or off automatically based on CPU temperature. This feature can effectively reduce fan noise a provide a better user experience while at the same time extending the life of the fan.
	This product is covered by a 24-month manufacturer's warranty

Data sheet

NVR608H-64-XI

System

main processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

TO THE

AI by Recorder

face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus

AI by Camera

face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; object monitoring

perimeter protection

Perimeter Performance AI by Recorder (Number of Channels)

24 channels, 10 IVS rules for each channel

Perimeter Performance of AI by Camera (Number of Channels)

64 channels

Face Detection

Face Attributes

gender; age group; glasses; expressions; face masks; beard

Face Detection Performance of AI by Recorder (Number of Channels)

4 channels (up to 12 face images/s each channel)

Face Detection Performance of AI by Camera (Number of Channels)

64 channels

Face Recognition

Face Database Capacity

Up to 40 face databases with 300,000 images, with a total capacity of 48 G. Name, gender, birthday, address, credential type,
credential No., countries & regions and state can be added
to each face image.

Face Recognition Performance of AI by Recorder (Number of Channels)

1. 20 channels FD (by camera) + FR (by recorder), image stream: 20 face images/s
2. 4 channels FD (by recorder) + FR (by recorder), video stream: 12 face images/s

Face Recognition Performance of AI by Camera (Number of Channels)

64 channels

SMD Plus

SMD Plus by Recorder

32-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera

64 channels

Video Metadata

Metadata Performance of AI by Recorder (Number of Channels)

8 channels

Metadata Performance of AI by Camera (Number of Channels)

32 channels

Human Attributes

Top color, top type, hat, bag, age, gender and umbrella

Motor Vehicle Attributes

License plate, plate color, vehicle model, vehicle logo, plate color, ornament, calling,

Non-motor Vehicle Attributes

Vehicle model, vehicle color, number of persons, helmet.

Vehicle License Plate Comparison

ANPR by Camera (Number of Channels)

32 channels

License Plate Database Capacity

Blocklists and allowlists: 20,000

Audio and Video

Access Channel

64 channels

Network Bandwidth

AI disabled: 1024 Mbps incoming, 1024 Mbps recording and 800 Mbps outgoing
AI enabled: 512 Mbps incoming, 512 Mbps recording and 400 Mbps outgoing

Resolution

32MP; 24MP; 16MP; 12MP; 8MP; 5MP; 4MP; 1080p; 720p; Q1

Decoding Capability

2-channel 32MP@30fps; 2-channel 24MP@30fps; 4-channel 16MP@30fps; 8-channel 8MP@30fps; 16-channel 4MP@30fps; 32-channel 1080p@30fps; 72-channel 720P@30fps 160-channel D1@30fps

Video Output

2-channel VGA, 4-channel HDMI video output.
Simultaneous mode:
max. resolution of VGA1 and VGA2 is 1080p,
max. resolution of HDMI1 and HDMI2 is 4K
max. resolution of HDMI3 is 8K
max. resolution of HDMI4 is 1080p
Heterogeneous mode:
Simultaneous video source output for VGA1 and HDMI1
Simultaneous video source output for VGA2 and HDMI2
max. resolution of VGA1 and VGA2 is 1080p,
max. resolution of HDMI1, HDMI2 and HDMI3 is 4K
max. resolution of HDMI4 is 1080p

Multi-screen display

Main screen: 1/4/8/9/16/25/36/64
Subscreens: 1/4/8/9/16/25/36

Third party camera access

ONVIF; Sony; axis; Arecont; Pelco; Canon; Samsung

Compression Standard

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MPEG4; mjpeg

Audio compression

G.711a; G.711u; PCM; G726

Network

NetworkProtocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; smtp; UPnP; DDNS; Alarm Servers; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; ISCSI extension

Mobile Phone Access

iOS; android

Interoperability

ONVIF (Profile S/Profile T/Profile G); CGI; SDKs

Browsers

Chrome
IE 9 or later
firefox

Network Mode

Multi-address mode, load balance, fault tolerance and other network port binding modes

Recording Playback

Multi-channel Playback

Up to 16 channels

Record Mode

Manual; alarm; motion detection; scheduled

Backup Method

Portable hard drive, eSATA disk, burner, USB device and network

Playback Mode

1. Play, pause, stop, fast forward, fast backward, rewind, play by frame
2. Full screen, backup (cut/file), partially enlarge, audio on/off

Storage

Disk Groups

Yes

RAID

RAID 0/1/5/6/10

Hot swapping

Yes

alarm

general alarm

motion detection; video tampering; video loss; scene changing, PIR alarm, IPC external alarm

Anomaly Alarm

Offline camera; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fans

Intelligent Alarm

face detection; face recognition; perimeter protection (intrusion and tripwire); SMD Plus alarms; ANPR; people counting; stereo analysis; crowd distribution; heat map

Alarm Linkage

Record; snapshots; IPC external alarm output; buzzers; logs, presets; e-mail

Port

Audio inputs

1-channel RCA

Audio Outputs

2-channel RCA

Alarm Inputs

16 channels

Alarm Output

8 channels

HDD Interface

8 SATA ports, up to 16TB. The maximum HDD capacity varies with environment temperature.

eSATA

RS-232

RS-485

1×A/B

USB

4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports)

HDMI

VGA

Network Port

2 (10/100/1000/2500Mbps Ethernet port, RJ-45)

General

Power Supply

100–240VAC, 50/60Hz

power consumption

<18W (without HDD)

Net Weight

6.4 kg (14.11 lb) (without HDD)

Gross Weight

10.35 kg (22.82 lb) (without HDD)

Product Dimensions

444.0 mm × 456.6 mm × 95.0 mm (17.48" × 17.98" × 3.74") (W × D × H)

Packaging Dimensions

570.0 mm × 570.0 mm × 226.0 mm (22.44" × 22.44" × 8.90") (W × D × H)

Operating Temperature

–10°C to +55°C (14°F to +131°F)

Operating Humidity

10%–93% (RH)

Installation

Racks or desktops

Certifications

FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2020, Class A; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55024:2010+A1:2015; EN 55035:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014+A11:2017
