Turbo Encoder 5in1 HDTVI HDCVI AHD CVBS - IP ONVIF - 16 canali - Fino a 8MP - 2 SATA per HDD 8TB - H.265+

Turbo Encoder 5in1 HDTVI HDCVI AHD CVBS - IP ONVIF - 16 canali - Fino a 8MP - 2 SATA per HDD 8TB - H.265+
IN PROMOTION -35%

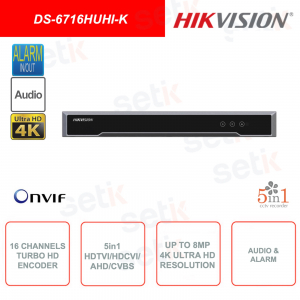

Turbo HD Encoder IP ONVIF - Hikvision - DS-6716HUHI-K - 5in1 HDTVI/HDCVI/AHD/CVBS - 16 canali - Risoluzione fino a 8MP 4K Ultra HD - Codec H.265+ - Dual Stream - 2 interfaccia SATA per HDD fino a 8TB (non inclusi) - Audio bidirezionale - Audio RCA 4in/1out - Allarme 16in/4out - Ethernet RJ45 10/100/1000M - RS232 - RS485.



Reference: DS-6716HUHI-K

Brand: Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HIKVISION: NET PRICES×


THIS PRODUCT IS ONLINE AT A SPECIAL PRICE!
Check out the other products that are part of the promotion! Prices valid until 30.04.2025
Netti Hikvision

ALARM HIKVISION×


  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>

SSD1TB SHOCK PRICE!×


 SSD1TB SHOCK PRICE!
Same price as the NON-SSD version!
Only 100 pieces!
  Buy now >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


DS-6716HUHI-K | TURBO HD ENCODER IP ONVIF HIKVISION - 5IN1 (HDTVI/AHD/CVI/CVBS/IP) - 16 CANALI - FINO A 8MP - H.265+ - 2xSATA PER HDD FINO A 8TB  - DUAL STREAM - AUDIO - ALLARME

Made by Hikvision
Turbo Encoder HD IP ONVIF - HIKVISIONDS-6716HUHI-K - 5in1 HDTVI/AHD/CVI/CVBS/IP - 16 canali - Compressione video fino a H.265+ con doppio stream del video - Bitrate video 32kbps-10Mbps di banda - Audio Bitrate 64kbps - 2x SATA per HDD esterno fino a 8TB (non inclusi) - Risoluzione fino a 8MP 4K ULTRA HD -  1 canale audio bidirezionale RCA - Audio 4in/1out - Allarme 16in/4out - Dual Stream - 1x RJ45 10/100/1000M - Playback sincrono fino a 16 canali supportato - Comunicazione network TCP/IP - Alimentazione 12VDC - RS485 - RS232 - Consumi senza HDD max.25W - Temperatura di esercizio: -10°C fino a 55°C - Umidità: 10% - 90% - Dimensioni: 380 × 320 × 48 mm - Peso 2Kg


TECNOLOGIA 4K - ULTRA HD - COSA SIGNIFICA?

Tecnologia 4K Ultra HDLa tecnologia 4K (detta anche ULTRA HD) è una delle ultime innovazioni in campo di visione ad alta definizione. 4K corrispondono alla risoluzione di 4 Full-HD, quindi 3840 X 2160!
Già impiegata nell'ambito dell'elettronica di consumo, finalmente sta arrivando anche nel mondo della sicurezza. La nuova generazione degli apparati DAHUA, infatti, permette il supporto di Telecamere fino a 12MPX su standard H265, la nuova  compressione video che permette di risparmiare fino al 50% rispetto alla precedente H264. Grazie all’uscita 4K è inoltre possibile visualizzare (su monitor 4K) l’immagine con il suo massimo dettaglio.

5in1:

HDTVI/AHD/CVI/CVBS/IP video input, con risoluzione fino a 8MP 4K UHD Ultra High Definition.

Bitrate del video: da 32kbps a 10Mbps.

16 canali di ingresso.

Smart H.265+:

Smart H.265+ è l'implementazione ottimizzata del codec H.265 che utilizza una strategia di codifica adattiva alla scena, GOP dinamico, ROI dinamico, struttura di riferimento multi-frame flessibile e riduzione del rumore intelligente utile per fornire video di alta qualità senza affaticare la rete.

Smart H.265+ riduce di molto il bit rate e i requisiti di archiviazione rispetto alla compressione H.265 standard

Video compressione Smart H.265+

RJ45:

1x RJ-45 (10/100/1000Mbps) self-adaptive (auto-adattiva).

INTERFACCIA:

Questo DVR presenta interfaccia RS-232 e RS-485.

HARD DISK:

Supporta fino a 2 HDD Hard Disk Drive esterni,, fino a 8 TB (cad.) di capacità, tramite l'interfaccia SATA dedicata (2x)

AUDIO:

Questo DVR presenta 4 ingressi + 1 uscita audio RCA, e 1 canale audio bidirezionale RCA.

ALLARME:

Questo DVR presenta 16 ingressi + 4 uscite allarme



Scheda tecnica



Model

DS-6716HUHI-K






Video/Audio input/output

Video input

16-ch





BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI input

8MP, 5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25



AHD input

5MP, 4MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI input

4MP, 1080p25, 1080p30, 720p25, 720p30

CVBS input

PAL/NTSC

Audio input

4-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio output

1-ch, RCA (Linear, 1 KΩ)

Synchronous playback

16-ch





Video/Audio encoding

Video compression

H.265+/H.265/H.264+/H.264

Audio compression

G.711u

Main stream

8 MP/5 MP/4 MP/ 3 MP/1080p/720p/WD1/4CIF/VGA/CIF



Frame rate

Main stream:

8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)



Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)

Video bit rate

32 Kbps to 10 Mbps

Audio bit rate

64 Kbps

Dual stream

Support

Network

management

Network protocols

TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS, ONVIF profile S

Storage

SATA

2 SATA interfaces



Capacity

Up to 8 TB capacity for each disk

External interface

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1 staudio input)

Network interface

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface



Serial interface

RS-485 (half-duplex); RS-232

Alarm in/out

16/4





General

Power supply

12 VDC, 5 A





Consumption (without HDD)

≤ 25 W





Working temperature

-10 ºC to +55 ºC (+14 ºF to +131 ºF)

Working humidity

10% to 90%

Dimensions (W × D × H)

380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)



Weight (without HDD)

≤ 2 kg (4.4 lb)





Ulteriori dettagli

Download

Scaricate il Depliant Inglese
