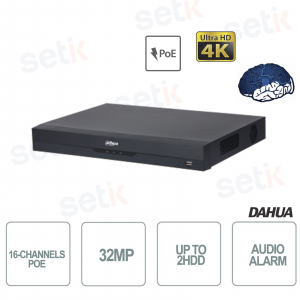

IP NVR ONVIF PoE Professional Dahua NVR5416-16P-EI EI Series WizSense 16-channel network recorder with resolution up to 32MP/4K Ultra HD and 16 PoE Smart H.265+ channels, Up to 384Mbps incoming/recording/output bandwidth . Artificial Intelligence : Face detection and recognition, perimeter protection, SMD plus, metadata, ANPR, stereo analysis, heat map, people counting. Up to 4HDD (16TB - not included), 1 audio in/2 out, 16 in/6 alarm out, 3x USB, 1x RS232, 1x RS485. Security baseline 2.3. Supports rack or desk mount.
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
NVR 16 IP DAHUA CHANNELS - 16 ONVIF® POE CHANNELS - 4K SERIES ARTIFICIAL INTELLIGENCE - UP TO 32 MEGAPIXELS
IP Nvr 16 Channels - 16 Onvif PoE Channels - New 4K AI Series - DahuaUp to 32MP resolution - 384Mbps maximum bandwidth - Video Compression up to H.265+
HDMI output ( 4K ) - VGA (4K) - 3 USB - Audio and Alarm - Up to 4 HDD SATA III 3.5"
Artificial Intelligence: Face detection and recognition, perimeter protection, SMD plus, metadata, ANPR, stereo analysis, heat map, people counting
WIZSENSE TECHNOLOGY: |
Product details
Dahua EI series Dahua's NVR5000-EI series offers outstanding performance and high-level recording technology ideal for IP video surveillance. It features a powerful processor that offers high access, forwarding bandwidth, and strong decoding capabilities that together produce unobstructed streams. Thanks to the built-in AI chip and Dahua's advanced deep learning algorithms , the NVR supports a variety of back-end AI functions with:
| |
 | This IP NVR recorder features 16 Channels |
 | This NVR features 16 PoE ports |
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | New ULTRA HD 4K Technology! Even higher resolution than FULL-HD! Greater detail available, greater sense of depth and realism. |
 | This NVR supports ONVIF® 21.12 standard |
 | ANPR | Automatic license plate recognition Ideal for managing income and expenses. Compatible with Dahua ANPR cameras, it integrates black / white list functions , data import / export, addition / deletion of license plate numbers in the lists, search results from a recorded video.  |
 | Possibility of connecting POS devices, obtaining all the information superimposed on the channel. Pos search option by date or transaction |
 | Supports 4x 3.5" SATA III Hard Drives up to 16TB each (hard drives not included) ATTENTION: use specific audio/video discs on NVR systems. For more information, read our dedicated article . |
 | This NVR has 3 USB ports |
 | Resolution up to 4K via HDMI port! and VGA
New ULTRA HD 4K Technology! |
 | With alarm relay 16 inputs and 6 outputs for inputs from burglar alarms or other instruments and for activating external peripherals (gates, sirens, etc.) |
 | This NVR features 1 RCA audio input and 2 RCA audio output |
 | Dynamic DNS: allows you to reach the NVR even in case of dynamic IP |
 | Ability to have the disk overwrite when full or have the disk overwrite after X days. NVR restart programming to ensure greater stability over time |
 | This NVR has email sending. In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email notification, a sound notification or upload video & screeshot via FTP |
 |
Motion function. Recording starts when the camera detects movement. |
 | 1x RJ-45 (10/100/1000Mbps Ethernet port) |
 | RS 485 for PTZ commands (remotely controllable cameras) |
 | RS 232 to communicate with PC and keyboard |
 | This product is covered by a 24 month guarantee. |
Data sheet
| Model: DVR | NVR5416-16P-EI |
| SYSTEM | |
| main processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| TO THE | |
| AI by Recorder | face detection; face recognition; perimeter protection; SMD Plus |
| AI by Camera | face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| PERIMETER PROTECTION | |
| Perimeter Performance AI by Recorder (Number of Channels) | 4 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | 16 channels |
| FACE DETECTION | |
| Face Attributes | gender; age group; glasses; expressions; face masks; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 16 channels |
| FACE RECOGNITION | |
| Face Database Capacity | Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 1. 8-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s 2. 2-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | 16 channels |
| SMD PLUS | |
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 16 channels |
| VIDEO METADATA | |
| Metadata Performance of AI by Camera (Number of Channels) | 8 channels |
| Human Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella |
| Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location. |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet. |
| VEHICLE LICENSE PLATE COMPARISON | |
| ANPR by Camera (Number of Channels) | 8 channels |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. 2. Blocklists and allowlists |
| AUDIO AND VIDEO | |
| Access Channel | 16 |
| Network Bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Resolution | 32MP; 24MP; 16MP; 12MP; 8MP; 5MP; 4MP; 1080p; 720p; D1; TIN; QCIF extension |
| Decoding Capability | AI disabled: 2-channel 32MP@20fps; 2-channel 24MP@20fps; 4-channel 16MP@30fps; 5-channel 12MP@30fps; 8-channel 8MP@30fps AI enabled: 1-channel 32MP@20fps; 1-channel 24MP@20fps; 2-channel 16MP@30fps; 4-channel 12MP@30fps; 4-channel 8MP@30fps; 8-channel 5MP@30fps |
| Video Output | 2-channel VGA, 2-channel HDMI video output. Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 Supports 4K display |
| Multi-screen display | Main screen: 1/4/8/9/16 Subscreens: 1/4/8/9/16 |
| Third party camera access | ONVIF®; Panasonic; Sony; axis; Arecont; Pelco; Canon; Samsung |
| STANDARD COMPRESSION | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; mjpeg |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| NETWORK | |
| NetworkProtocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; smtp; UPnP; IP filter; PPPoE; FTP; DDNS; Alarm Servers; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration |
| Mobile Phone Access | iOS; android |
| Interoperability | ONVIF® 21.12(Profile T; Profile S; Profile G); CGI; SDKs |
| Browsers | Chrome IE 9 or later Firefox |
| RECORDING PLAYBACK | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| STORAGE | |
| Disk Groups | Yes |
| ALARM | |
| general alarm | motion detection; privacy masking; local alarm |
| Anomaly Alarm | Offline camera; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fans; cyber security exception |
| Intelligent Alarm | face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| Alarm Linkage | Record; snapshots (panoramic); local alarm output; IPC external alarm output; access controllers; audio; buzzers; logs, presets; e-mail |
| PORT | |
| Audio inputs | 1-channel RCA |
| Audio Outputs | 2-channel RCA |
| Alarm Inputs | 16 channels |
| Alarm Output | 6 channels |
| HDD Interface | 4 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature. |
| RS-232 | 1 |
| RS-485 | 1 (half-duplex serial communication) |
| USB | 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 2 |
| Network Port | 1 (10/100/1000Mbps Ethernet port, RJ-45) |
| PoE port | 16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE |
| GENERAL | |
| Power Supply | 100–240VAC, 50-60Hz |
| power consumption | Total output of NVR is ≤ 13W (without HDD) Total output power of PoE is 150W, the maximum output power of a single port is 25.5W) |
| Net Weight | 4.82kg (10.63lb |
| Gross Weight | 7.09kg (15.63lbs) |
| Product Dimensions | 440.0 mm × 415.1 mm × 70.0 mm (17.32" × 16.34" × 2.76") (W ×D × H) |
| Packaging Dimensions | 530.0mm × 500.0mm × 210.0mm (20.87" × 19.69" × 8.27")(W × D × H) |
| Operating Temperature | –10°C to +55°C (14°F to +131°F) |
| Storage Temperatures | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH) |
| Installation | Racks or desktops |
| CERTIFICATIONS | |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014 CE-LVD: EN 62368-1: 2014 |
