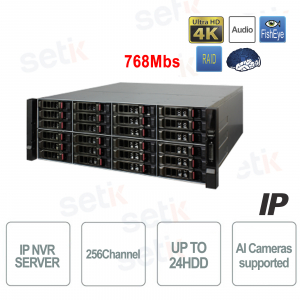

Super NVR IP Server 256 Channels 4K 24MP 24HDD 768Mbps Raid AI IVS Dahua

Super NVR IP Server 256 Channels 4K 24MP 24HDD 768Mbps Raid AI IVS Dahua
-55%

Super NVR IP Server Professional Dahua IVSS7024 4K Ultra HD for surveillance - With 7 "Display - Up to 256 IP channels 24 MP, Up to 768Mbps bandwidth. Video Outputs 3x HDMI / 1x VGA, Max 24 HDD SATA 3.5" , RAID 0/1/5/6/10/50/60 modes , supports Artificial Intelligence and Video Analysis , Face Recognition, ANPR, Video Metadata, Fisheye Dewarp, Onvif, Audio and Alarm, Sas, RS-232, RS-485 USB - PRODUCT TO ORDER



Reference: IVSS7024

Brand: Dahua

FIND INSTALLER

€8,490.29

€18,867.30 -55%
taxes included
Tax included
 Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


PRODUCT TO ORDER!

SUPER NVR IP SERVER 256 CHANNELS - 24MEGAPIXEL 4K - 768MBPS - RAID SUPPORT - ARTIFICIAL INTELLIGENCE - VIDEO ANALYSIS - DAHUA

Prodotto marca Dahua Super NVR IP Server Dahua
256 Channels up to 24Megapixel 4K ULTRA-HD - Up to 768Mbps bandwidth - H.265+
Up to 24HDD Supported - RAID 0/1/5/6/10/50/60 Support - Artificial Intelligence and Video Analysis Support - ANPR -
Alarm/Audio - RS-232/RS-485 - eSATA - SAS - 3x HDMI/1x VGA/4xUSB - ONVIF®

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD technology 4K technology (also known as ULTRA HD ) is one of the latest innovations in the field of high definition vision. 4K corresponds to the resolution of 4 Full-HD, so 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security as well. The new generation of DAHUA devices, in fact, allows the support of cameras up to 12MPX on standard H265 , the new video compression that allows you to save up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image with its maximum detail.



Product details

NVR Server IP 256 Canali fino a 12MP 4K 768Mbps Raid Ridondante

Dahua IVSS goes beyond ordinary NVR products.
The IVSS7024DR is an intelligent Video Surveillance Server that combines video management functionalities with traditional video archiving functions in a single device. It basically works as a network video recorder but integrates features like face detection and face recognition for different business and industrial applications. A new user interface design supports device operation and maintenance management, enhancing the value and experience of surveillance vision, and serving the big data security era.

Telecamera ANPR

ANPR | Automatic license plate recognition

Up to 64 Channels
50 license plate databases with 300,000 license plate numbers in total
It supports allowlists and blocklists


Esempio funzione anpr
256 Canali

256 IP Channels!
Up to 12 Megapixel 4K ULTRA-HD recording!

Max 768Mbps bandwidth

4K Risoluzione Ultra HD New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
Greater detail available, greater sense of depth and realism.

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure, and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Questo DVR supporta telecamere per la videosorveglianza con standard ONVIF® It supports ONVIF® IP cameras (Profile S, T and G), CGI, SDK

Artificial intelligence
This recorder supports AI cameras

Available AI functions:

1) FACE DETECTION: 128 Channels. It supports 6 properties: Gender, Age range (6 levels),
glasses, expression (8 types), mouth mask and beard

2) ANPR: 64 Channels, 50 license plate databases with 300,000 license plate numbers in total
It supports allowlists and blocklists

3) VIDEO METADATA: 64 Channels.
It supports Human Body Properties, Vehicle Properties, Non-Motor Vehicle Properties, Metadata Performance (AI for Camera).

4) PERIMETER PROTECTION: 256 Channels

-



AI Camera - Rilevamento volto


N+M Hot Standby function

The N+M Hot Standby highly reliable redundancy design provides a technique of
secure failover technique to ensure immediate backup. In the event of a system failure, the secondary device instantly takes the place of the primary device to ensure no data loss.

Smart tracking function

The PTZ Auto Tracking function automatically follows a moving moving target throughout the camera's field of view. This feature is ideal for following a moving object in airports, parking lots, city centers or other scenes.

Questo NVR presenta la visibilità da remoto fino a 20 utenti simultanei

Multiple Network Monitoring: Web viewer, CMS(DSS/PSS) & DMSS(Best Mobile CCTV Software)
Applicazione DMSS di Dahua. Software mobile per la videosorveglianza

Funzione Dewarping

Dewarping Fisheye

It supports several fisheye dewarp modes to make it easier for you to watch videos, both live and during playback.

Funzione Dewarping
Hard Disk

Supports up to 24 SATA Audio / Video AV-GP SATA3.0 / SAS Hard Disks ( Max 16 TB each )
It also works without Hard Disk even REMOTE!

ATTENTION: use specific audio/video discs on NVR systems.
For more information, read our dedicated article .

There is also 1 eSATA port
HARD DRIVES NOT INCLUDED!

RAID function:

The RAID mode allows the contents of a disk to be replicated on a second disk, thus guaranteeing data reliability in the event of disk failure and service continuity.

RAID 0/1/5/6/10/50/60

Ingressi USB This NVR features 4x USB Ports (2 USB2.0 ports on the front panel and 2 USB3.0 ports on the rear panel)
4K Risoluzione Ultra HD

Equipped with 3 HDMI ports with 4K output support!

New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
Greater detail available, greater sense of depth and realism.

Uscita VGA This product features 1x VGA ports with 1080P resolution!
Porta RS485 RS 485 for PTZ peripheral control. It supports various protocols
Porta RS232 RS 232 for debugging or COM data transparent
Questo NVR presenta ingressi e uscite allarme With alarm relay 16 inputs + 8 outputs for burglar alarms or other instruments and for activating external peripherals (gates, sirens, etc.)
Questo DVR presenta ingressi / uscite audio This NVR features 1 audio input and 1 audio output (speaker output, audio linkage)
Funzione invio email in caso di notifica This NVR has email sending.
In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email notification, a sound notification or upload video & screeshot via FTP
Funzione Motion Motion function. Recording starts when the camera detects movement.
Porta Ethernet RJ-45 ( 10 / 100 / 1000 Mbps) 4x RJ-45 (10/100/1000Mbps) Self-adaptive Ethernet ports
Also rack mountable
12V 3A power supply 1 doors
Power Supply: AC100-127V/AC200-240V 50/60Hz
Questo NVR è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month guarantee.

Data sheet

Model: DVR IVSS7024
SYSTEM
Main Processor Industry embedded micro-controllers
Operating System Embedded LinuxOS
Operation interface WEB (PCAPP), local GUI
AI Application
AI by Camera Face detection, face recognition, video metadata, IVS (tripwire, intrusion, abandoned object, missing object, fast moving, parking detection, crowd gathering, loitering, parking, and fence-crossing), people counting, smoking detection, call detection
perimeter protection
Perimeter Function (AI by Camera) 256-channel
Human Face Detection
Human Face Properties Supports 6 properties: Gender, age range (6-level), glasses, expression (8 types), mouth mask, and beard
Face Detection Performance (AI by Camera) (Channel Number)

128-channel

Human Face Recognition
Human Face Recognition Performance (AI by Camera) (Channel Number) 128-channel
ANPR
Plate Database Capacity 50 plate databases with 300,000 plate numbers in total Supports allowlist and blocklist
Plate Detection Performance 64-channel
Video Metadata
Human Body Properties Gender, age, sleeves length, top color, bottom type, bottom color, bag, rain coat, umbrella, hat, hairstyle, direction, hold a baby, mouth mask
Vehicle Properties Vehicle type, vehicle color, plate color, logo, calling, seatbelt, ornament, region
Non-motor vehicle properties Non-motor vehicle type, non-motor vehicle color, number of passengers, umbrella, rain coat, bag , sleeve length, top color, hat, hair style, mouth mask
Metadata Performance (AI by Camera) (Channel Number) 64-channel
Video Parameters
Remote Connection 256
Network Bandwidth RAID Incoming bandwidth: 768Mbps Recording bandwidth: 768Mbps Outgoing bandwidth: 768Mbps Single HDD Incoming bandwidth: 768Mbps Recording bandwidth: 512Mbps Outgoing bandwidth: 768Mbps
Resolution

24MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF/QCIF

Decoding Capability

2-channel 24MP/3-channel 16MP/6-channel12MP (20fps)/7-channel12MP (15fps)/6-channel8MP (30fps)/12-channel8MP (15fps)/7-channel6MP(30fps)/9-channel5MP(30fps) )/11-channel5MP (25fps)/12-channel4MP (30fps)/18-channel4MP (20fps)/19-channel3MP (25fps)/12-channel1080P (60fps)/24-channel1080P (30fps)/36-channel720P (30fps)

Video Output 1-channel VGA output, 3-channel HDMI output, VGA 1/ HDMI 1 outputs the same video source. Supports 4K output
Multi-screen display Custom display. Max. 36-channel local live view. Max.16-channel PCAPP live view
Third-party Support Onvif, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, Canon, Samsung
Operating System Embedded LinuxOS
Operation Interface WEB (PCAPP), local GUI
Compression
Video Compression Smart H.265+/Smart H.264+/H.265/H.264
Audio compression G.711A/G.711U/PCM/G726
Network
protocol HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Mobile phones DMSS extension
Interoperability ONVIF® (Profile S, T and G), CGI, SDK
Browsers Chrome, PCAPP, IE9 or higher, Firefox
Network Mode NIC binding mode such as multiple-address mode, load balance, fault-tolerance, etc
Record Playback
Multiple-channel Playback Max. 16-channel playback
Record Search Search video detection/manual record/IO alarm/intelligent event/all record file
storage medium Internal HDD, SAS disk array enclosure
Backup Method HDD, peripheral USB storage device
Playback Function 1. Play/pause/stop/fast forward/fast backward/reverse play/frame by frame play. 2. Full-screen, backup (clips/files), snapshot, digital zoom, audio on/off
Storage
HDD Group 24
RAID RAID 0/1/5/6/10/50/60
alarm
general alarm Motion detection, tampering, local alarm
Anomaly Alarm IPC offline alarm, storage error, HDD full, IP conflict, MAC conflict, login lock, fan malfunction
Intelligent Alarm Human face detection, human face recognition, video metadata (person/vehicle/non-motor vehicle), IVS, plate recognition, people counting, smoking, call
Alarm Linkage Record, picture storage (full image), local external alarm output, IPC external alarm output, access & control, audio prompt, buzzer, log, preset, email
Peripheral Interface
Audio inputs 1-channel(reserved)
Audio Outputs 1-channel, speaker output, audio linkage output
Alarm Inputs 16-channel
Alarm Output 8-channel
Internal HDD 24 slots, SATA3.0/SAS. Max.16T/HDD
eSATA 1 port
SAS 2 SAS 3.0 ports
RS-232 1 port, for debugging or transparent COM data
RS-485 1 port, control peripheral PTZ and so on. Supports various protocols
USB 4 ports. 2 USB2.0 port at the front panel and 2 USB3.0 port at the rear panel
HDMI 3 ports; support 4K output
VGA 1 port
Network 4 RJ-45 10/100/1000Mbps self-adaptive Ethernet ports
Power 1 ports
General Parameters
Power Supply AC100-127V/AC200-240V 50/60Hz
power consumption 120W (without HDD, idling)
408W (all HDDs connected)
Net Weight 17kg (37.48lbs)
Gross Weight 18kg (39.68lbs)
Dimensions Chassis: 446 mm × 514.5 mm × 175 mm (17.56 " ×20.21 " × 6.89 ") Max. size: 482.6 mm (with hanger) × 514.5 mm × 175 mm (with feet mat) (19.00 " × 20.26 " × 6.89 " )
Packaging Dimensions 689mm × 779mm × 552mm (27.13" × 30.67" × 21.73")
Operating Temperature 0°C to +45°C (+32°F to +113°F)/10%RH–90%RH
Storage Temperatures 0°C to +40°C (+32°F to +104°F)/30%RH–85%RH
Operating Humidity 10%–90%
Storage Humidity 30%–85%
Operating Altitude 5000m (16404.20ft)
InstallationMode Desktops/racks
Certifications CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B UL 60950- 1

Further details


Downloads

Download the English brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
