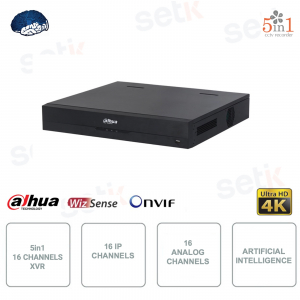

XVR IP ONVIF® - 16 channels - 4K-N - 5MP - 5in1 - 16 IP channels - 16 analog channels - Video Analysis

XVR IP ONVIF® - 16 channels - 4K-N - 5MP - 5in1 - 16 IP channels - 16 analog channels - Video Analysis
BEST PRICE -60%

Dahua - XVR5416L-4KL-I3 - XVR IP ONVIF - 16 channels - Resolution: 4K-N/5MP - 5in1 HDCVI/AHD/TVI/CVBS/IP input - Bandwidth: 128Mbps in / 128Mpbs out - 16 IP channels - 16 analogue channels - Up to 32 channels - H.265+ - Artificial intelligence : perimeter protection / Face detection - Interface RS232 - RJ45 - USB - 4 SATA ports HDD 16TB (not included) - Audio - Alarm - Video Out: HDMI - VGA - For mounting rack or desktop.

Reference: XVR5416L-4KL-I3

Brand: Dahua

EAN: 6923172547910

FIND INSTALLER

€745.66

€1,864.16 -60%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno



XVR DAHUA 16 CHANNELS WITH 5 TECHNOLOGIES IN 1 - UP TO 4K-N/5MP - 4HDD - AUDIO AND ALARM - WIZSENSE - XVR5416L-4KL-I3

Prodotto Marca Dahua
XVR IP ONVIF® 16 Channels 5in1 - Wizsense - Dahua - XVR5416L-4KL-I3
5 technologies in 1 product: HDCVI/AHD/TVI/CVBS/IP / Resolution: 4K-N/5MP
Up to 32 channels - 16 IP channels - 16 analog channels - Codec H.265+ / Artificial Intelligence with Perimeter Protection / Face Detection and Recognition - 3xUSB (1x2.0 + 2x3.0) - 2xHDMI - 1xVGA - RS232 - RS485 - RJ45 1000M - Audio : 16+4in BNC / 1out - Alarm: 16in/6out - eSATA - Support 4HDD SATA up to 16TB (not included) - Cloud P2P - ONVIF® standard - 24 months warranty

Tecnologia WizSense

WIZSENSE TECHNOLOGY:
Launched by Dahua Technology, WizSense is a series of wide-ranging AI products and solutions that adopt independent AI chip and deep learning algorithm. It can recognize human and vehicle in one image with high accuracy, allowing users to focus on real targets. Powered by Dahua's advanced technology, WizSense makes your videos smart, simple and inclusive.

Smart refers to WizSense based on AI chip and deep learning algorithm. It provides various features realizing accurate alerts for people and vehicles as well as quick target search, maximizing resources to increase overall efficiency.
Simple means that WizSense offers simple configuration, especially for SMD Plus which can be enabled with a single button. It facilitates the daily work of the clients and also empowers them to make better business decisions.
Inclusivity of WizSense is the idea that everyone gets opportunities and benefits from artificial intelligence. With affordable pricing and easy setup of Dahua WizSense, AI is no longer limited to the ivory tower, but instead applied to real-world scenarios.



Product details

DVR XVR 5in1 Dahua 16 Canali fino a 5M-N di risoluzione!
>

Novità


Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on people and vehicles with high accuracy, enabling users to take quick action on defined targets. Based on Dahua's advanced technologies, WizSense provides smart and simple products.

New XVR series XVR5000-4KL-I2, equipped with SMD Plus on all channels to benefit customers from AI upgrade. The series is designed to reduce false alarm rates and human vigilance costs, thereby bringing great value to customers looking for accurate human/vehicle alarm products to enhance the security level of various indoor and outdoor facilities.


AI search: Supports search by people and vehicle metadata. It supports uploading face images to the NVR and comparing them with similar ones already recorded by the NVR. It allows operators to quickly and easily search across various channels and efficiently discover when and where a subject is present.

5 Technologies in 1!
This DVR supports 5 different technologies ( HDCVI/AHD/TVI/ANALOG/IP )


WIZSENSE TECHNOLOGY


Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on people and vehicles with high accuracy, enabling users to take quick action on defined targets. Based on Dahua's advanced technologies, WizSense provides smart and simple products.


AI Recorders with Artificial Intelligence

This AI network video recorder is a cost-effective, highly cost-effective product, providing functions such as local live view, multi-screen view, local HDD real-time storage, quick mouse operation, and remote management and control. This product is suitable for face detection and recognition at entrances / exits and perimeter protection of people and vehicles.

Available AI functions:

1) PERIMETER PROTECTION: Automatically filters out false alarms caused by animals, rustling leaves, bright lights, etc.
Allows the system to activate secondary detection for targets. Improve alarm accuracy.

2) FACIAL RECOGNITION: Detect faces in real time via video stream or photo stream.

Analyze facial attributes including gender, age, expression, glasses, mustache and masks. Identify people and also capture them, register faces with metadata.

- Face Management Database: Ability to configure multiple face databases. Powerful face database management. The face database can be applied to video channels independently. Name, gender, date of birth, address, certificate type, certificate number, countries and regions and state can be added to each face image

Standard ONVIF® Onvif is by far the most important Standard in the IP world.
Being Onvif guarantees a wide range of compatible IP devices (DVRs/cameras).

This XVR supports ONVIF® version 21.12
H265+ Video Compressione

AI Coding: What is it about?

AI coding

Compared with H.265, the AI codec can reduce up to 50% in bit rate and storage requirements without loss of decoding compatibility, providing clear human and vehicle details.




16 Canali

This IP NVR recorder features 16 Channels

16 IP channels

16 analog channels

Up to 32 channels (each up to 12MP)

1. CVI: 4K, 6MP, 5MP, 4MP, 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps.

2. TVI: 4K, 5MP, 4MP, 3MP, 1080p@25/30fps; 720p@25/30fps.

3. AHD: 4K, 5MP, 4MP, 3MP, 1080p@25/30fps; 720p@25/30fps.



IP Camera Input 16+16 channels, each channel up to 12MP

Collegamento a dispositivi POS

Possibility of connecting POS devices, obtaining all the information superimposed on the channel.

Pos search option by date or transaction

Possibilità di collegamento dispositivi POS

Funzione POS

Funzione IoT

Internet Of Things (IoT):

Possibility to connect wireless external sensors, such as panic buttons, via AirFly PFM871A-N1 dongle or cameras with already integrated gateway

Diagramma Fuzione IoT

IoT Manager:

- Real-time view: Monitor and preview all IoT information in real time

- IoT Information Search: Detailed IoT information and movies corresponding to an access point search

- Sensor Manager: Includes sensor pairing, status and configurations of IoT devices

Gestore dispositivi IoT

Questo DVR supporta telecamere per la videosorveglianza

It supports cameras from various brands: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,Sanyo, Sony, Videotec, Vivotek, and others...

(operation with the models proposed here is to be checked on a case-by-case basis)

Compatibile con Hard Disk SATA Audio/Video AV-GP

Supports 4x Audio / Video SATA Hard Drives up to 16TB! ( NOT INCLUDED ! )


CAUTION: Use specific audio/video discs on DVR systems.
For more information, read our dedicated article .

Questo DVR presenta 2 porte USB This XVR features 3x USB Ports ( 1 front USB 2.0, 2 rear USB 3.0 )

This XVR features 2 HDMI PORTS and 1 VGA port

HDMI1 port with up to 4K resolution!

New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
Greater detail available, greater sense of depth and realism.

-------------------------------------------------- -------------------------------------------------- -------------------------------------------------- -


Uscita video bnc

Video BNC output present

Questo DVR presenta ingressi / uscite audio

This XVR features 4 external BNC Audio Inputs, 16 + 1 BNC Audio Outputs.

Two-way audio present.

Questo DVR presenta 8 ingressi allarme e 1 uscita allarme With alarm relay 16 inputs + 6 outputs
1 RJ45 port (1000Mbps)
Porta RS232 RS 232 to communicate with PC and keyboard

1 RS485 port
Dynamic DNS: permette di raggiugere il DVR anche in caso di IP Dinamico Dynamic DNS: allows you to reach the device even in case of dynamic IP
In caso di eventi (offuscamento telecamera, taglio segnale, motion, disco rotto, problemi di rete etc...), è in grado di inviare una segnalazione via email,una notifica sonora oppure caricare video & screeshot tramite FTP This video recorder has email sending.
In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email notification, a sound notification or upload video & screeshot via FTP
Funzione Motion. La registrazione parte nel momento in cui la telecamera rileva movimento. Motion function. Recording starts when the camera detects movement.
Questo DVR presenta garanzia italiana 24 mesi

This product is covered by a 24 month guarantee.

Data sheet

XVR5416L-4KL-I3

System

main processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

perimeter protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 2 channels, 10 IVS for each channel
General Model: 8 channels, 10 IVS for each channel

Face Detection

Face Attributes

gender; age group; glasses; expressions; face masks; beard

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 12 face images/s)

Face Recognition

Face Database Capacity

Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog camera input

16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 4K, 6MP, 5MP, 4MP, 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps.
2. TVI: 4K, 5MP, 4MP, 3MP, 1080p@25/30fps; 720p@25/30fps.
3. AHD: 4K, 5MP, 4MP, 3MP, 1080p@25/30fps; 720p@25/30fps.

IP Camera Input

Up to 32 channels of IPC access
16 IP channels by default + 16 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.

Encoding Capacity

Mainstream:
4K@(1fps-7fps); 6MP@(1fps-10fps);
5MP@(1fps-12fps); 4K-N, 4MP, 3MP@(1fps-15fps);
4M-N, 1080p, 720p, 960H, D1,CIF@(1fps–25/30fps);
Sub streams: 960H@(1fps–15fps); D1/CIF@(1fps–25/30fps)

Dual-stream

Yes

Video Bit Rate

32kbps–6144kbps

Audio Sampling

8kHz, 16-bit

Audio Bit Rate

64kbps

Video Output

2 HDMI, 1 VGA, 1 TV
Resolution
VGA/HDMI2: 1920×1080, 1280×1024, 1280×720
HDMI1: 3840×2160, 1920×1080, 1280×1024, 1280×720
*Heterogeneous video sources output for HDMI2 is configurable.

Multi-screen display

When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25/36

Third party camera access

ONVIF®; Panasonic; Sony; axis; Arecont; Pelco; Canon; Samsung

Compression Standard

Video Compression

AI Coding; H.265+; H.265; H.264+; H.264

Audio compression

G.711a; G.711u; pcm extension

Network

NetworkProtocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; smtp; NTP; DHCP; DNS; DDNS; P2P

Mobile Phone Access

iOS; android

Interoperability

ONVIF® 21.12; CGI

Browsers

Chrome, IE9 or later, Firefox

Network Mode

Single address mode

Recording Playback

Download the English brochure
