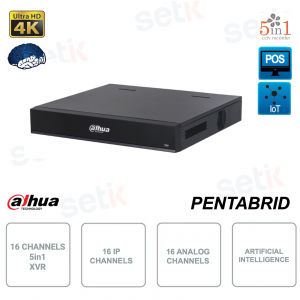

XVR IP OMVIF - 16 channels - 5in1 - Up to 12MP - 16 IP channels and 16 analog channels - Artificial intelligence

XVR IP OMVIF - 16 channels - 5in1 - Up to 12MP - 16 IP channels and 16 analog channels - Artificial intelligence
QUESTIONS ABOUT THE PRODUCT

 
HDD space calculation
-57%

Dahua - XVR7416L-4K-I3 - XVR IP ONVIF - 5in1: HDCVI/AHD/TVI/CVBS/IP - 16 channels - 16 IP channels and 16 Analog channels - 16 BNC ports - Artificial intelligence with perimeter protection and face detection - Dual Stream - H.265+ Smart Codec - Maximum bandwidth 128Mbps - POS and IoT - RS232 - RS485 - USB - HDMI - VGA - RJ45 1000M - Audio - Alarm - 4 SATA ports for 16TB HDD (not included) - eSATA - Motion Detection - For desktop or rack mounting.

Reference: XVR7416L-4K-I3

Brand: Dahua

EAN: 6923172547934

FIND INSTALLER

€1,365.53

€3,175.66 -57%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno

XVR VIDEO RECORDER 16 CHANNELS - 5 IN1 - UP TO 12MP - 16 IP CHANNELS - 16 ANALOG CHANNELS - DAHUA - XVR7416L-4K-I3

Prodotto Marca Dahua
XVR 16 Channels - Dahua - XVR7416L-4K-I3
5in1 ( HDCVI/AHD/TVI/CVBS/IP ) - Resolution Up to 12MP (supports 4K) - 16 IP and 16 analog channels - 16 BNC ports - Up to 32 IP 12MP channels - Dual Stream - H.265+ - Intelligence artificial : Perimeter protection / Face detection and recognition / SMD Plus - Audio : 1in/1out BNC - Alarm : 16in/6out - Bandwidth 128Mbps - RS485 - RS232 -RJ45 1000M - 1xHDMI (4K), HDMI/VGA (1080p) - POS and IoT - 4 SATA HDDs (up to 16TB each - Not included) - eSATA - Motion Detection - Fault alarm and intelligent alarm - For desktop or rack installation - 24 months manufacturer's warranty.

Product details

DVR XVR 5in1 Dahua 16 Canali. Audio, Allarme
5 Technologies in 1!
This DVR supports 5 different technologies ( HDCVI/AHD/TVI/CVBS/IP )
Standard ONVIF® Onvif is by far the most important Standard in the IP world.
Being Onvif guarantees a wide range of compatible IP devices (DVRs/cameras).

This XVR supports ONVIF® version 21.12

H265+ Video Compressione		 This XVR features compression standards up to H.265+

H.265+: What are the benefits?

- Save up to 90% on bandwidth

- Reduction of storage space

- Longer recording times on analog surveillance systems with the same storage space.

Standard di Video Compressione H.265+

Questo DVR presenta 16 canali

16 IP channels and 16 analog channels.

Up to 32 IP channels (analog channels are converted to IP channels)

Encoding capabilities (Dual Stream):

  • Mainstream: 4K@(1fps–15fps); 6MP, 5MP@(1fps–25fps); 4K-N,4MP,3MP, 1080p, 720p, 960H, D1, CIF@(1fps25/30fps)
  • Substeram: 960H@(1fps–15fps);D1, CIF@(1fps25/30fps)

Input Bandwidth: Max 128Mbps.

Artificial Intelligence Technology

This recorder allows artificial intelligence functions on board!

- Perimeter protection
- Face detection and recognition
-SMD Plus



Questo DVR supporta telecamere per la videosorveglianza

Supports cameras from various brands: Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more...

(operation with the models proposed here is to be checked on a case-by-case basis)

Questo DVR supporta la funzione Cloud 2P2 proprietario Dahua

This DVR features DAHUA proprietary Cloud p2p function

Compatibile con Hard Disk SATA Audio/Video AV-GP

Supports 4x Audio / Video SATA Hard Drives up to 16TB each! ( NOT INCLUDED ! )

Also present 1 eSATA port!

CAUTION: Use specific audio/video discs on DVR systems.
For more information, read our dedicated article .

Questo DVR presenta 2 porte USB This XVR features 3x USB Ports (1 front USB 2.0, 2 rear USB 3.0)
Questo DVR presenta 1 ingresso HDMI
4K Ultra HD Resolution

This XVR features 2x HDMI port in addition to VGA and TV

HDMI port 1: 4K out

HDMI2 port: 1080p out

VGA port: 1080p out

New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
Greater detail available, greater sense of depth and realism.

Connection to POS devices

Possibility of connecting POS devices, obtaining all the information superimposed on the channel.

Pos search option by date or transaction

Possibilità di collegamento dispositivi POS

Funzione POS

IoT function

Internet Of Things (IoT):

Possibility to connect wireless external sensors, such as panic buttons, via AirFly PFM871A-N1 dongle or cameras with already integrated gateway

Diagramma Fuzione IoT

IoT Manager:

- Real-time view: Monitor and preview all IoT information in real time

- IoT Information Search: Detailed IoT information and movies corresponding to an access point search

- Sensor Manager: Includes sensor pairing, status and configurations of IoT devices

Gestore dispositivi IoT

Questo DVR presenta ingressi / uscite audio This XVR features 1 BNC audio input and 1 BNC audio output
Questo DVR presenta 8 ingressi allarme e 1 uscita allarme CON Alarm relay 16 IN and 6 OUT for inputs from burglar alarms or other instruments and activate external peripherals (gates, sirens, etc.)
1 RJ45 port ( 10/100/1000M )
1 RS 485 port for PTZ commands (remotely controllable cameras)
Porta RS232 RS 232 to communicate with PC and keyboard
Dynamic DNS: permette di raggiugere il DVR anche in caso di IP Dinamico Dynamic DNS: allows you to reach the device even in case of dynamic IP
In caso di eventi (offuscamento telecamera, taglio segnale, motion, disco rotto, problemi di rete etc...), è in grado di inviare una segnalazione via email,una notifica sonora oppure caricare video & screeshot tramite FTP This video recorder has email sending.
In case of events (camera obfuscation, signal cut, motion, broken disk, network problems etc ...), it is able to send an email notification, a sound notification or upload video & screeshot via FTP
Funzione Motion. La registrazione parte nel momento in cui la telecamera rileva movimento. Motion function. Recording starts when the camera detects movement.
Questo DVR presenta garanzia italiana 24 mesi

This product is covered by a 24 month guarantee.

Data sheet

XVR7416L-4K-I3

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

perimeter protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 6 channels, 10 IVS for each channel
General Model: 12 channels, 10 IVS for each channel

Face Detection

Face Attributes

gender; age group; glasses; expressions; face masks; beard

Face Detection Performance of AI by Recorder (Number of Channels)

6 channels (up to 12 face images/s)

Face Recognition

Face Database Capacity

Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image

Face Recognition Performance of AI by Recorder (Number of Channels)

6 channels

SMD Plus

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog camera input

16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 4K, 6MP, 5MP, 4MP, 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps.
2. TVI: 4K, 5MP, 4MP, 3MP, 1080p@25/30fps; 720p@25/30fps.
3. AHD: 4K, 5MP, 4MP, 3MP, 1080p@25/30fps; 720p@25/30fps.

IP Camera Input

Up to 32 channels of IPC access
16 IP channels by default + 16 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
*After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.

Encoding Capacity

Mainstream: 4K@(1fps–15fps); 6MP, 5MP@(1fps–25fps);
4K-N,4MP,3MP, 1080p, 720p, 960H, D1, CIF@(1fps–25/30fps)
Substeram: 960H@(1fps–15fps);D1, CIF@(1fps–25/30fps)

Dual-stream

Yes

Video Bit Rate

32kbps–8192kbps

Audio Sampling

8kHz, 16-bit

Audio Bit Rate

64kbps

Video Output

2 HDMI, 1 VGA, 1 TV
Resolution
VGA/HDMI2: 1920×1080, 1280×1024, 1280×720
HDMI1: 3840×2160, 1920×1080, 1280×1024, 1280×720
*Heterogeneous video sources output for HDMI2 is configurable.

Multi-screen display

When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16/25/36

Third party camera access

ONVIF®; Panasonic; Sony; axis; Arecont; Pelco; Canon; Samsung

Compression Standard

Video Compression

AI Coding; H.265+; H.265; H.264+; H.264

Audio Compression

G.711a; G.711u; pcm extension

Network

NetworkProtocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; smtp; NTP; DHCP; DNS; DDNS; P2P

Mobile Phone Access

iOS; android

Interoperability

ONVIF® 21.12; CGI

Browsers

Chrome, IE9 or later, Firefox

Network Mode

Single address mode

Recording Playback

Record Mode

General, motion detection; intelligent; alarm; POS

Recording Playback

1/4/9/16

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

Disk Groups

Yes

alarm

general alarm

motion detection; video loss; tampering; local alarm

Anomaly Alarm

No disks; storage error; disk full; offline room; IP conflict; MAC conflict

Intelligent Alarm

face detection; face recognition; perimeter protection

Alarm Linkage

Record; snapshots (panoramic); IPC external alarm output; access controllers; voice prompts; buzzers; logs; presets; e-mail

Ports

TV Output

Yes

Audio inputs

4-channel BNC (external)
16-channel BNC (coaxial audio)

Audio Outputs

1-channel BNC

Two-way Talk

1-channel BNC

Alarm Inputs

16 channels

Alarm Output

6 channels

HDD Interface

4 SATA ports, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature

eSATA

1

RS-232

1 port, for PC Communication & Keyboard

RS-485

1 port, for PTZ control

USB

3 (1 front USB 2.0 port, 2 rear USB 3.0 ports)

HDMI

2

VGA

1

Network Port

1 (10/100/1000Mbps Ethernet port, RJ-45)

General

Power Supply

100-240VAC, 50/60Hz

power consumption

<30W

Net Weight

4.9kg (10.80lbs)

Gross Weight

7.1kg (15.65lbs)

Product Dimensions

1.5U, 440.0mm × 415.7mm × 76.0mm
(17.32" × 16.37" × 2.99") (W × D × H)

Packaging Dimensions

529.0mm × 499.0mm × 211.0mm
(20.83" × 19.65" × 8.31") (W × D × H)

Operating Temperature

–10°C to +55°C (14°F to +131°F)

Operating Humidity

10%–90% (RH)

Installation

Racks or desktops

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B

Further details

Diagram XVR7416L-4K-I2
