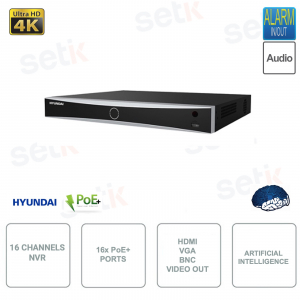

IP POE NVR - AIsense - 16 channels - Up to 12MP - POS - Artificial intelligence - 16 PoE+ ports

IP POE NVR - AIsense - 16 channels - Up to 12MP - POS - Artificial intelligence - 16 PoE+ ports

HYU-971 - Hyundai - NVR IP POE 16 Channels - 16 channels - Resolution up to 12MP - Input bandwidth 160Mbps - Output 256Mbps - Two-way audio - Alarm - Cloud P2P - 2xUSB - RJ45 Gigabit - POE Plus - VGA out 1080p - HDMI Out 4K - BNC Video Out - 16ch Synchronous Playback - 16ch 1080p Decoding - Smart Search - 16 PoE+ Ports - Artificial Intelligence : Face Recognition, 16 Face Libraries, Perimeter Protection, VCA Event, POS - 2 SATA Ports for HDD 10TB (not included) - For video surveillance systems.

Reference: HYU-971

Brand: Hyundai Security

EAN: 2123456792676

FIND INSTALLER

€980.37

taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity


Videosorveglianza Hyundai Security

NVR 16 IP AISENSE HYUNDAI CHANNELS - AUDIO - ALARM - ARTIFICIAL INTELLIGENCE - HYU-971

Hyundai Security
HYU-971 - NVR 16 IP POE channels - Up to 12MP with Artificial Intelligence - with 16 PoE+ ports - AIsense Hyundai
Up to 12MP recording - 160Mbps in / 256Mbps out - H.265+ video compression - Video outputs : VGA (1080P), HDMI (4K), BNC (1.0 Vp-p, 75) - Two-way audio 1in/1out - 4 inputs/1 output Alarm - POS function - Artificial Intelligence : Facial Recognition - 4-channel Perimeter Protection with person/vehicle recognition - VCA events - Interface : RJ45 Gigabit - 2xUSB (1x2.0 + 1x3.0) - Supports up to 2 HDD SATA 1TB - Cloud P2P - DDNS - 128 remote connections - 16 PoE+ ports - Power supply: 100V ~ 240V AC, 50/60Hz - Weight less than 3Kg.
24 months warranty!

Product details

Gamma di prodotti Hyundai

HYUNDAI CATALOG:

Are you looking for a HYUNDAI product but couldn't find it on our website?

Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email.

ONVIF®

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera for its own sake that can never be used together with recording systems

This camera supports Onvif version

16 Channels

16 Channels up to 12MP !

Input bandwidth: 160Mbps
Outgoing Bandwidth: 256Mbps

4K Ultra HD Resolution

New ULTRA HD 4K Technology!
Even higher resolution than FULL-HD!
Greater detail available, greater sense of depth and realism.

4K output is via HDMI socket.

This NVR features 16 PoE+ ports!

PoE+ 802.3af/at, maximum consumption 200W.

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+


This device has smart features, such as:

- Facial recognition
- 16 face libraries - 4-channel Perimeter Protection with distinction/Classification between people and vehicles
- VCA events

Video Analisi - Mappa Calore

Full HD

It supports Cloud P2P, DDNS, Push and channel zero.

Visione da applicazione mobile Lechange

Collegamento a dispositivi POS

Possibility of connecting POS devices, obtaining all the information superimposed on the channel.

Pos search option by date or transaction

Possibilità di collegamento dispositivi POS

Funzione POS

PoE power supply Supports 2 SATA HDDs, up to 10TB capacity. (Hard drive not included)

ATTENTION: use specific audio/video discs on NVR systems.
For more information, read our dedicated article .
1x Gigabit RJ45
IP66 WaterProof This NVR has 2x ports (1 USB 2.0, 1 USB 3.0)
HDMI
VGA

This product features 1x VGA (1080P), 1xHDMI (4K), 1x BNC (1.0 Vp-p, 75)

Warranty

This product is covered by a 24 month guarantee.

12V 3A power supply A 100V ~ 240V AC, 50/60Hz power supply is required for this camera to operate (not included in the package)
12V DC power supply

Data sheet

HYU-971

16 IP camera inputs up to 12MP

Compression format H.265+, H.265, H.264+, H.264, MPEG4

Incoming bandwidth: 160Mbps

Outgoing bandwidth: 256Mbps

VGA (1080P) and HDMI (4K) video output

Video output BNC (1.0Vp-p, 75Ω)

Two-way audio: 1 RCA input / 1 RCA output

Recording resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

16-channel synchronous playback

Decoding capacity: 16 channels at 1080P

Smart analytics based on deep learning algorithms

Facial recognition of up to 4 channels for facial images

Facial recognition of up to 1 channel for video transmission

Face detection with face image comparison, face capture, face image search

Up to 16 facial image libraries, with up to 10,000 images in total

Perimeter protection of up to 4 channels with recognition of vehicles and people and up to 12 rules

Supports multiple VCA (Video Content Analysis) events

POS information overlay on live view and image playback

Alarm triggering and alarm recording by POS event

Alarm channels: 4 inputs / 1 output

Storage: 2 SATA ports for drives up to 10TB (HDD not included)

Ethernet network interface RJ45 (10/100/1000M) self-adaptive

Network Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Up to 128 remote connections

Smart search for more efficient playback (for NEXTGEN IP cameras)

P2P in the cloud, DDNS DEMES, Push and zero channel

Plug&Play connection with NEXTGEN IP cameras

Connections: 1 USB 2.0, 1 USB 3.0

The rear panel incorporates 16 independent ports (10/100Mbps) PoE+ 802.3af/at with a maximum consumption of ≤200W

Power: 100V ~ 240V AC, 50/60Hz

Consumption: ≤15W (without hard drives and PoE)

Operating temperatures: -10°C ~ +55°C

Relative humidity: 10~90%

Dimensions: 385(W) x 52(H) x 315mm(1U)

Weight: ≤3kg
