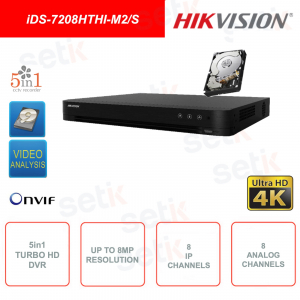

Turbo HD Recorder Hikvision - IP ONVIF® - 5in1 - 8MP - 8 IP channels - 8 analog channels + 2HDD 2TB Included - Video Analysis
Trubo HD DVR Hikvision iDS-7208HTHI-M2/S - 8 IP channels and 8 Analog channels - 5in1 HDTVI/AHD/CVI/CVBS/IP - Resolution up to 8MP 4K - Codec H.265+ - HDMI output (4K) - VGA (1080p) - 2xUSB (1x 2.0 ~ 1x 3.0) - Up to 2x10TB SATA HDD - Audio 1in/1out RCA + 8 coaxial channels - 1 bidirectional audio channel - Video Analysis : Perimeter protection and Motion Detection 2.0 - Synchronous playback up to 8 channels - Up to 64 remote connections - Includes 2TB Hard Disk
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
iDS-7208HTHI-M2/S | HIKVISION TURBO HD DVR - 8MP - 5in1 HDTVI/AHD/CVI/CVBS/IP - 8 IP CHANNELS - 8 ANALOG CHANNELS - 2xSATA HDD 10TB - VIDEO ANALYSIS
2TB HARD DISK INCLUDED! By purchasing this Hikvision recorder you will already find a 2TB capacity hard disk included, specific for video surveillance applications |
Trubo HD DVR Hikvision iDS-7208HTHI-M2/S
Resolution: 5in1 HDTVI/AHD/CVI/CVBS/IP - 8MP 4K ULTRA-HD 8Megapixel - Video Input: 8 Analog channels - 8 IP channels - 1 HDMI (4K) - 1 VGA - 2 USB (1x 2.0 ~ 1x 3.0) - Up to 2 10TB SATA HDDs - 1 RCA audio input and 1 RCA audio output - 1 bidirectional audio channel - 8 coaxial audio channels - Video Analysis: perimeter protection and Motion Detection 2.0 - Includes 2TB HDD - 24 months manufacturer's warranty
| 4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN? | |
|---|---|
|
8 CHANNELS: 8 IP channels and 8 coaxial channels Up to 16 IP INPUT channels |
4K ULTRA-HD RESOLUTION: ULTRA HD 4K technology! Supported resolutions: 8MP/5MP/3K/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF |
H.265+ VIDEO COMPRESSION: H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without strain the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression |
SMART FEATURE-SET - VIDEO ANALYSIS: |
| SMART SEARCH: This function allows you to obtain various motion videos in a short time by simply drawing an area during playback. Very useful in case he should understand an emergency |
HIK-CONNECT Hik Connect allows you to control the device remotely
|
RJ45: 1x RJ-45 (10/100/1000Mbps) |
HARD DISKS: Supports up to 2 SATA III HDDs, up to 10TB (each) capacity. |
HDMI and VGA output (full hd): Present 1 HDMI output with resolution up to 4K and 1 VGA output |
USB: 1 × USB 2.0 |
Audio This DVR features 1 audio input + 1 audio output It also allows 8 audio channels via coaxial |
Data sheet
model | iDS-7208HTHI-M2/S |
Motion Detection 2.0¹ | |
Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
Perimeter Protection¹ | |
Line Crossing Detection/ Intrusion Detection | 8-ch |
recording | |
video compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Encoding resolution | 8MP/5MP/3K/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF |
Frame rates | Mainstream: 8MP@15fps/8MP@12fps/3K@20fps/5MP@20fps/5MP@12fps/3MP@18fps 4MP/1080p/720p/WD1/4CIF/VGA/CIF@25 fps(P)/30fps(N) |
Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) | |
Video bit rate | 32Kbps to 16Mbps |
Dual streams | Support |
Stream type | Videos, Videos & Audios |
Audio compression | G.711u |
Audio bit rate | 64Kbps |
Video and Audio | |
|
Video input IP | 8-ch (up to 16-ch) |
Up to 8MP resolution | |
Support H.265+/H.265/H.264+/H.264 IP cameras | |
Analog video input | 8-ch |
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
HDTVI inputs | 8MP@15fps, 8MP@12.5fps, 3K@20fps, 5MP@20fps, 5MP@12fps, 4MP@30fps, 4MP@25fps, 3MP@18fps, 1080p@30 fps, 1080p@25fps, 720p@60fps, 720p@50fps, 720p@30fps, 720p@25fps |
AHD input | 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080p@25fps, 1080p@30fps, 720p@25fps, 720p@30fps |
HDCVI input | 4MP@25fps, 4MP@30fps, 1080p@25fps, 1080p@30fps, 720p@25fps, 720p@30fps |
CVBS input | PAL/NTSC |
CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
VGA out | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
HDMI out | 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
Video output mode | HDMI/VGA independent outputs |
Audio inputs | 1-ch, RCA (2.0 Vp-p, 1KΩ) |
| Further | 8-ch via coaxial cable |
Audio outputs | 1-ch, RCA (Linear, 1KΩ) |
Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
Synchronous playback | 8-ch |
Network | |
Total bandwidth | 128Mbps |
Remote connection | 64 |
Network protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF® |
Network interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
Wifi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
Auxiliary interface | |
SATA | 2 SATA interfaces |
Capacity | Up to 10TB capacity for each disk |
Serial interface | RS-485 (half duplex) |
USB interface | Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
General | |
power supplies | 12VDC, 3.33A |
HDD consumption) (without | ≤ 15W |
Working temperatures | -10°C to +55°C (+14°F to +131°F) |
Working humidity | 10% to 90% |
Dimension(W×D×H) | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) |
Weight (without HDD) | ≤ 3.1 kg (without HDD, 6.9 lb.) |
