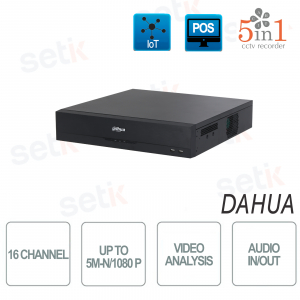

5 in 1 XVR Dahua 16 Channels HD CVI + AHD + TVI + ANALOG + IP up to 5M-N (Half of 5MP - higher than 1080P!) , SMD Plus, Onvif , Video compression up to H.265 + , VGA. 2 HDMI, 4 USB, RS485, RS232, support up to 8HDD , 16 inputs + 1 Audio output, 16 inputs + 6 outputs Alarm , Support POS and IoT and Video Analysis, Cloud P2P. Rack mountable. XVR5816S-I3
FIND INSTALLER
€771.16
€1,836.10 -58%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
XVR DAHUA 16 CHANNELS WITH 5 TECHNOLOGIES IN 1 - UP TO 5M-N! - 1080P - 8HDD - AUDIO AND ALARM
HDCVI / AHD / TVI / ANALOG / IP / Up to 5M-N (Half of 5MP - Better than 1080P!), SMD Plus, Onvif
Video Compression up to H.265 + / Video Analysis / 16 inputs + 1 Audio output / 16 inputs + 6 outputs Alarm / IoT & POS
Product details
 | DAHUA X SERIES If you want to know more about this new series of XVR 5 in1 Dahua recorders , read the article we wrote! |
  | 5 Technologies in 1! This XVR supports 5 different technologies ( HDCVI / AHD / TVI / ANALOG / IP ) |
 | Onvif is the most important standard in the IP world. Being Onvif guarantees a wide range of compatible IP devices (DVRs / cameras). This XVR supports ONVIF® version 21.06 |
  | This XVR provides compression standards up to H.265 + H.265 +: What are the benefits? - Up to 90% savings on bandwidth - Reduction of storage space - Longer recording times on analog surveillance systems with the same storage space. |
 | This XVR recorder features 16 analog channels and 24 IP channels Recording resolution up to 5 MN |
 | Possibility of connecting POS devices, obtaining all the information superimposed on the channel. Possibility of searching pos by date or transaction |
| This VCR supports Video Analysis (IVS) on all channels (up to 10 rules per channel (Max 2)), Face Detection (on the first channel only) and Smart Search. VIDEO ANALYSIS (IVS) - Line crossing - Face recognition - Moving objects
|
 | This XVR features the Cloud p2p feature via: EASYVIEWER and DMSS
|
 | Supports 8x SATA Audio / Video Hard Disk up to 8TB! (NOT INCLUDED!)
|
 | This XVR features 4x USB Port (2 USB 2.0, 2 USB 3.0) |
 | This XVR features 2 HDMI PORTS. Porma HDMI1 with resolution up to 1080p! |
 | This XVR features 1 VGA port |
 | This XVR features 16 Audio Inputs + 1 BNC Audio Output |
 | With alarm relay 16 inputs + 6 outputs for burglar alarms or other instruments and activate external peripherals (gates, sirens, etc.) |
 | 2 RJ45 ports (1000M) |
 | RS 232 to communicate with PC and keyboard |
| 1 RS485 port |
 |
Motion function. Recording starts when the camera detects motion. |
 | This product is covered by a 24 month warranty. |
Data sheet
| Model: XVR | XVR5816S-I3 |
| SYSTEM | |
| Main Processor | Embedded processor |
| Operating System | Embedded LINUX |
| Operating Interface | Web; Local GUI |
| Perimeter Protection | |
| Perimeter Performance of AI by Camera (Number of Channels) | Advanced Model: 2 channels, 10 IVS for each channel General Model: 4 channels, 10 IVS for each channel |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images / s) |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face image |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
| SMD Plus | |
| SMD Plus by Recorder | 16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change |
| Audio and Video | |
| Analog Camera Input | 16 BNC ports, CVI access by default, supports HDCVI / AHD / TVI / CVBS auto-detect |
| Camera Input | 1. CVI: 5 MP @ 25/30 fps; 4 MP @ 25/30 fps; 1080p @ 25 / 30fps, 720p @ 50 / 60fps; 720p @ 25/30 fps. 2. TVI: 5 MP @ 25/30 fps; 4 MP @ 25/30 fps; 3 MP @ 25/30 fps; 1080p @ 25/30 fps; 720p @ 25/30 fps. 3. AHD: 5MP @ 25 / 30fps; 4 MP @ 25/30 fps; 3 MP @ 25/30 fps; 1080p @ 25/30 fps; 720p @ 25/30 fps. |
| IP Camera Input | Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps * After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled. |
| Encoding Capacity | Main stream: All channels 5M-N @ (1 fps – 10 fps); 4M-N @ (1 fps – 15 fps); 1080p @ (1 fps – 15 fps); 1080N @ (1 fps– 25/30 fps); 720p @ (1 fps – 25/30 fps); 960H @ (1 fps – 25/30 fps); D1 @ (1 fps – 25/30 fps); CIF @ (1 fps – 25/30 fps) Sub stream: D1 @ (1 fps – 15 fps); CIF @ (1 fps – 15 fps) |
| Dual-stream | Yes |
| Video Frame Rate | PAL: 1 fps – 25 fps NTSC: 1 fps – 30 fps |
| Video Bit Rate | 32 kbps – 6144 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps |
| Video Output | 2HDMI, 1VGA, 1TV Resolution VGA / HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS & SMD is selected in AI Mode. * Heterogeneous video sources output for HDMI2 is configurable. |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25 |
| Third-party Camera Access | ONVIF®; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
| Compression Standard | |
| Video Compression | AI Coding; H.265 +; H.265; H.264 +; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF® 21.06; CGI |
| Browser | Chrome, IE9 or later, Firefox |
| Network Mode | Multi-address mode, Fault Tolerance, Load Balance |
| Recording Playback | |
| Disk group | Yes |
| Alarm | |
| General Alarm | Motion detection; video loss; tampering; local alarm |
| Anomaly Alarm | No disk; storage error; disk full; offline camera; IP conflict; MAC conflict |
| Intelligent Alarm | Face detection; face recognition; perimeter protection |
| Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; presets; e-mail |
| Ports | |
| TV Output | Yes |
| Audio Input | 16-channel BNC (external) 16-channel BNC (coaxial audio) |
| Audio Output | 1-channel BNC |
| Two-way Talk | 1-channel BNC |
| Alarm Input | 16 channels |
| Alarm Output | 6 channels |
| HDD Interface | 8 SATA ports, up to 16TB, the maximum HDD capacity varies with environment temperature |
| eSATA | 1 |
| RS-232 | 1 port, for PC Communication & Keyboard |
| RS-485 | 1 port, for PTZ control |
| USB | 4 (2 front USB 2.0 ports, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 1 |
| Network Port | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 100–240 VAC, 50 ± 2% Hz |
| Power Consumption | <15W (without HDD) |
| Net Weight | 6.72 kg (14.81 lb) |
| Gross Weight | 9.32 kg (20.55 lb) |
| Product Dimensions | 2U, 439.9mm × 463mm × 94.9mm (17.32 "× 18.23" × 3.73 ") (W × D × H) |
| Packaging Dimensions | 570.0 mm × 570.0 mm × 226.0 mm (22.44 "× 22.44" × 8.90 ") (W × D × H) |
| Operating Temperature | -10 ° Cto + 55 ° C (14 ° Fto + 131 ° F) |
| Installation | Rack or desktop |
| Operating Humidity | 10% –90% (RH) |
| Certifications | CE: CE-LVD: EN 60950-1 / IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
